| Ref | Part Number | Description |
|---|
| A |
390402300 |
Pop Rivet 3/16" Price: $0.77 |
| B |
390909200 |
Avex Rivet Price: $0.30 |
| C |
390909100 |
Avex Rivet Price: $0.30 |
| D |
293150144 |
Stavex Rivet Price: $0.84 |
| E |
293150146 |
Henrob Rivet Price: $2.09 |
| 3 |
518326328 |
RH Side Member This part replaces 518326444. Price: $284.99 |
| 4 |
518326330 |
LH Side Member This part replaces 518326446. Price: $284.99 |
| 5 |
518326198 |
Front Member Price: $64.99 |
| 6 |
293150144 |
Stavex Rivet Price: $0.84 |
| 7 |
293150120 |
Hemlock Rivet 6.5 mm Price: $7.59 |
| 8 |
293150119 |
Hemlock Rivet, 6.5 mm Price: $4.39 |
| 9 |
505072690 |
Leg Bushing This part replaces 505070954. Price: $12.49 |
| 10 |
Not |
Available As Spare Part - Rivet |
| 11 |
518325371 |
MAG Engine Support Price: $78.99 |
| 12a |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 12b |
207661644 |
Hex. Flange Screw M6 X 16 Price: $0.76 |
| 13 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 Price: $1.49 |
| 14 |
207662044 |
Hex. Flange Screw M6 X 20 Price: $2.09 |
| 15 |
518324874 |
RH Reinforcement Price: $27.99 |
| 16 |
518324875 |
LH Reinforcement Price: $27.99 |
| 17 |
518325782 |
RH Deflector, Black Polypropylene Price: $13.99 |
| 18 |
518325783 |
LH Deflector, Black Polypropylene Price: $13.99 |
| 19 |
293150104 |
Pop Rivet 3/16" Price: $1.09 |
| 20 |
518201321 |
REINFORCEMENT PLATE - Call your local BRP dealership Price: $9.19 |
| 21 |
518328787 |
RH Bracket This part replaces 518326136. Price: $81.99 |
| 22 |
518328788 |
LH Bracket This part replaces 518326137. Price: $79.99 |
| 23 |
518325973 |
RH Rear Base Price: $21.99 |
| 24 |
518325974 |
LH Rear Base Price: $21.99 |
| 25 |
518325377 |
RH ROLLER - Call your local BRP dealership Price: $69.99 |
| 26 |
518325846 |
LH ROLLER - Call your local BRP dealership Price: $62.99 |
| 27 |
293450275 |
Insert This part replaces 415107300. Price: $12.99 |
| 28 |
518326656 |
Seal Price: $9.19 |
| 30 |
250300027 |
Clinch Stud M6 X 20 Price: $2.09 |
| 32 |
293150144 |
Stavex Rivet Price: $0.84 |
| 33 |
518327105 |
Rear Cap This part replaces 518325421. Price: $22.49 |
| 34 |
518328938 |
RH Stirup This part replaces 518326216. Price: $169.49 |
| 35 |
518327935 |
LH STIRUP - Call your local BRP dealership This part replaces 518326239. Price: $149.99 |
| 36 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. Price: $0.98 |
| 37 |
293730042 |
Full Moon Dart 5 mm Price: $2.29 |
| 38 |
293450268 |
Insert M5 X 0.8 Price: $2.09 |

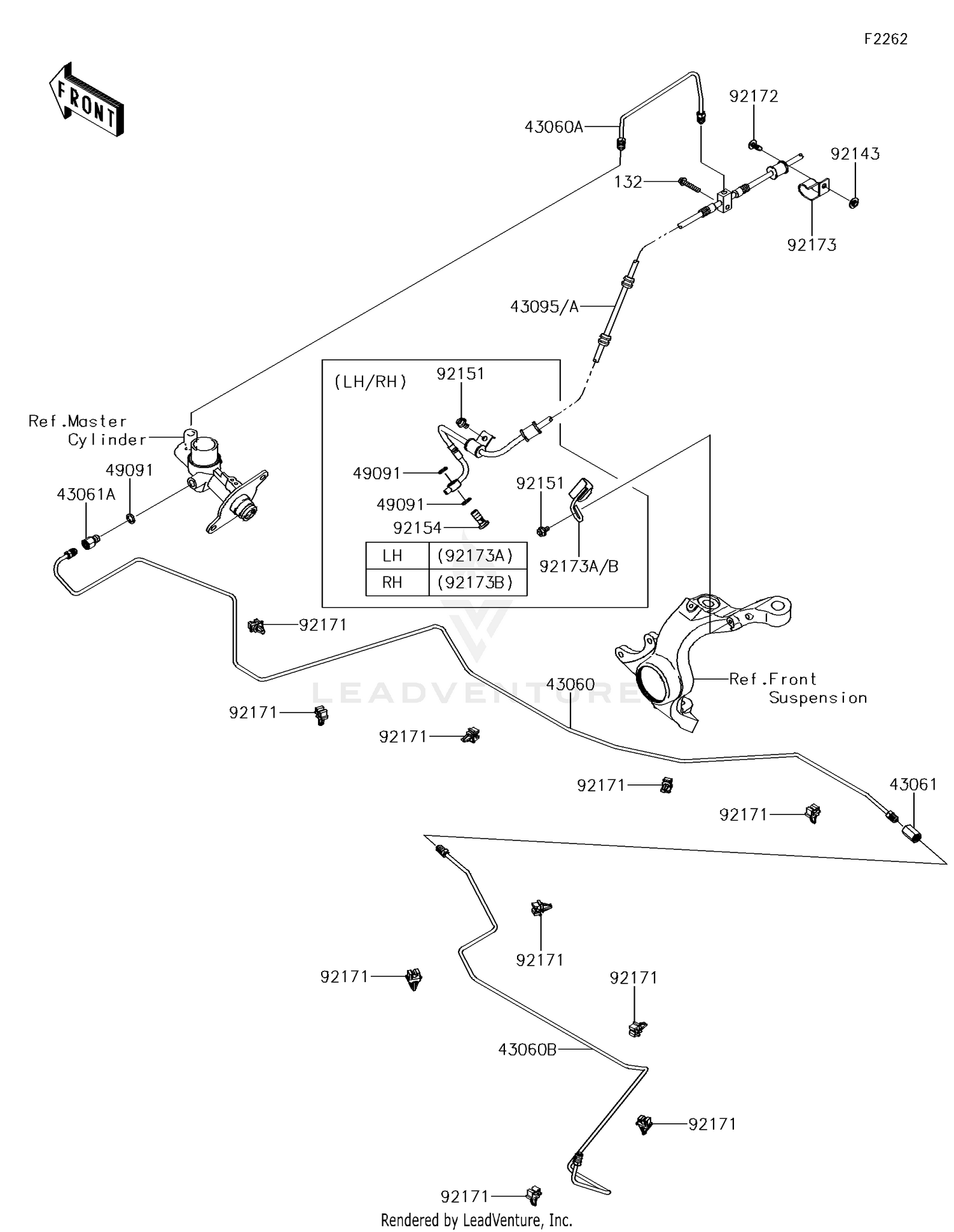

| 43060 |
43060-0359 |
PIPE-BRAKE,M/C-JOINT This part replaces 43060-0316. Price: $43.66 |
| 43060A |
43060-0363 |
PIPE-BRAKE,M/C-FR JOINT This part replaces 43060-0320. Price: $22.25 |
| 43060B |
43060-0364 |
PIPE-BRAKE,JOINT-BRAKE This part replaces 43060-0324. Price: $37.27 |
| 43061 |
43061-0003 |
JOINT-BRAKE Price: $46.35 |
| 43061A |
43061-0302 |
JOINT-BRAKE,M/C Price: $33.24 |
| 43095 |
43095-1993 |
HOSE-BRAKE,FR This part replaces 43095-0935. Price: $141.64 |
| 43095A |
43095-1993 |
HOSE-BRAKE,FR This part replaces 43095-1483. Price: $141.64 |
| 49091 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 Price: $2.15 |
| 92143 |
92143-1087 |
COLLAR Price: $4.31 |
| 92151 |
92151-1344 |
BOLT,6X10 Price: $2.46 |
| 92154 |
92154-1875 |
BOLT,TORX,10X23 Price: $9.67 |
| 92171 |
92171-0805 |
CLAMP Price: $3.90 |
| 92172 |
92172-0739 |
SCREW,TAPPING,6X16 Price: $0.85 |
| 92173 |
92173-0930 |
CLAMP Price: $7.66 |
| 92173A |
92173-0934 |
CLAMP,LH Price: $10.17 |
| 92173B |
92173-0935 |
CLAMP,RH Price: $10.17 |
