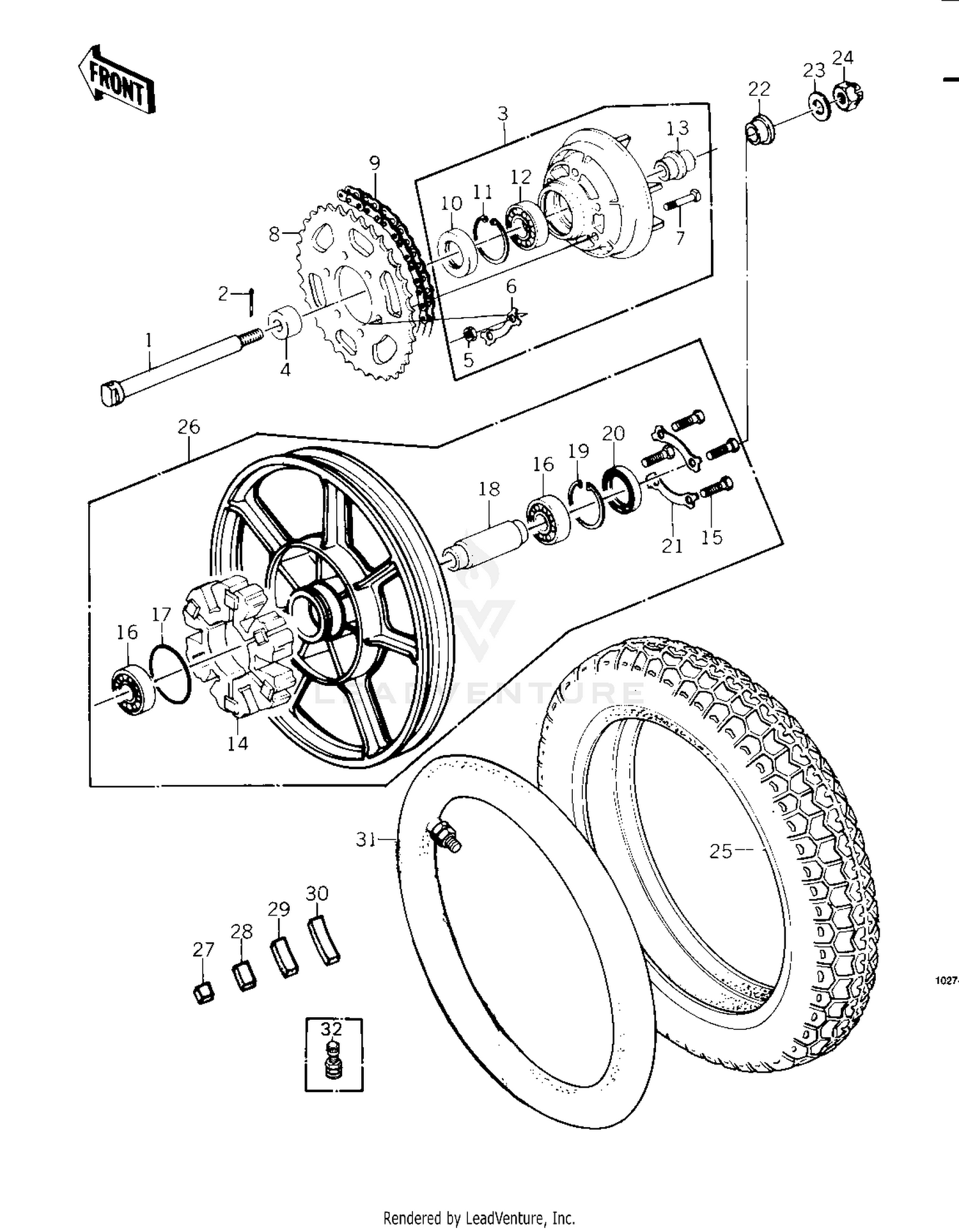

| Ref | Part Number | Description |
|---|
| 1 |
42031-034 |
AXLE,REAR Price: $141.87 |
| 2 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 3 |
42008-040 |
COUPLING ASSY,RR HUB Price: $229.00 |
| 4 |
42032-071 |
COLLAR,REAR AXLE Price: $13.33 |
| 5 |
42045-005 |
NUT 10MM Price: $7.98 |
| 6 |
92088-007 |
WASHER LOCK Price: $13.51 |
| 7 |
92003-087 |
BOLT-REAR SPROCKET Price: $10.11 |
| 8 |
42041-1005 |
REAR SPROCKET,37T Price: $109.40 |
| 8 |
42041-1032 |
REAR SPROCKET,35T Price: $127.17 |
| 9 |
92057-1003 |
DR CHAIN 630X94 Price: $201.80 |
| 9 |
92057-107 |
DR CHAIN 630X92 Price: $428.08 |
| 10 |
92050-027 |
SEAL-OIL,AJN40627 Price: $20.96 |
| 11 |
92033-1044 |
RING-SNAP,62MM Price: $11.29 |
| 12 |
92045-0110 |
BEARING-BALL,6206-9C3 This part replaces 601B6206. Price: $25.69 |
| 13 |
42036-033 |
SLEEVE,RR HUB COUPLNG Price: $36.54 |
| 14 |
42014-033 |
SHOCK DAMPER,REAR HUB Price: $111.86 |
| 15 |
92001-158 |
BOLT Price: $3.41 |
| 16 |
601B6304ZZ |
BEARING-BALL,#6304ZZC3 Price: $45.75 |
| 17 |
671B2565 |
O RING,65MM Price: $8.86 |
| 18 |
92027-1124 |
COLLAR This part replaces 42010-039. Price: $15.87 |
| 19 |
92033-1043 |
RING-SNAP,52MM Price: $8.05 |
| 20 |
92049-1287 |
SEAL-OIL This part replaces 92052-006. Price: $13.08 |
| 21 |
92088-023 |
WASHER,LOCK Price: $11.60 |
| 22 |
42032-080 |
COLLAR,REAR AXLE Price: $98.72 |
| 23 |
92022-248 |
WASHER,PLAIN,20MM Price: $11.60 |
| 24 |
42045-018 |
NUT,CASTLE,18MM Price: $9.23 |
| 25 |
41009-0669 |
TIRE,RR,MR90-18 71H,K This part replaces 41002-4022. Price: $402.17 |
| 26 |
41073-1020 |
SOLID WHEEL ASSY,REAR Price: $505.93 |
| 27 |
41075-005 |
BALANCER 5G Price: $2.47 |
| 28 |
41075-006 |
BALANCER 10G Price: $4.11 |
| 29 |
41075-007 |
BALANCER 20G Price: $3.01 |
| 30 |
41075-008 |
BALANCER 30G Price: $3.62 |
| 31 |
41022-4002 |
TUBE,REAR W18-19 Price: $21.87 |
