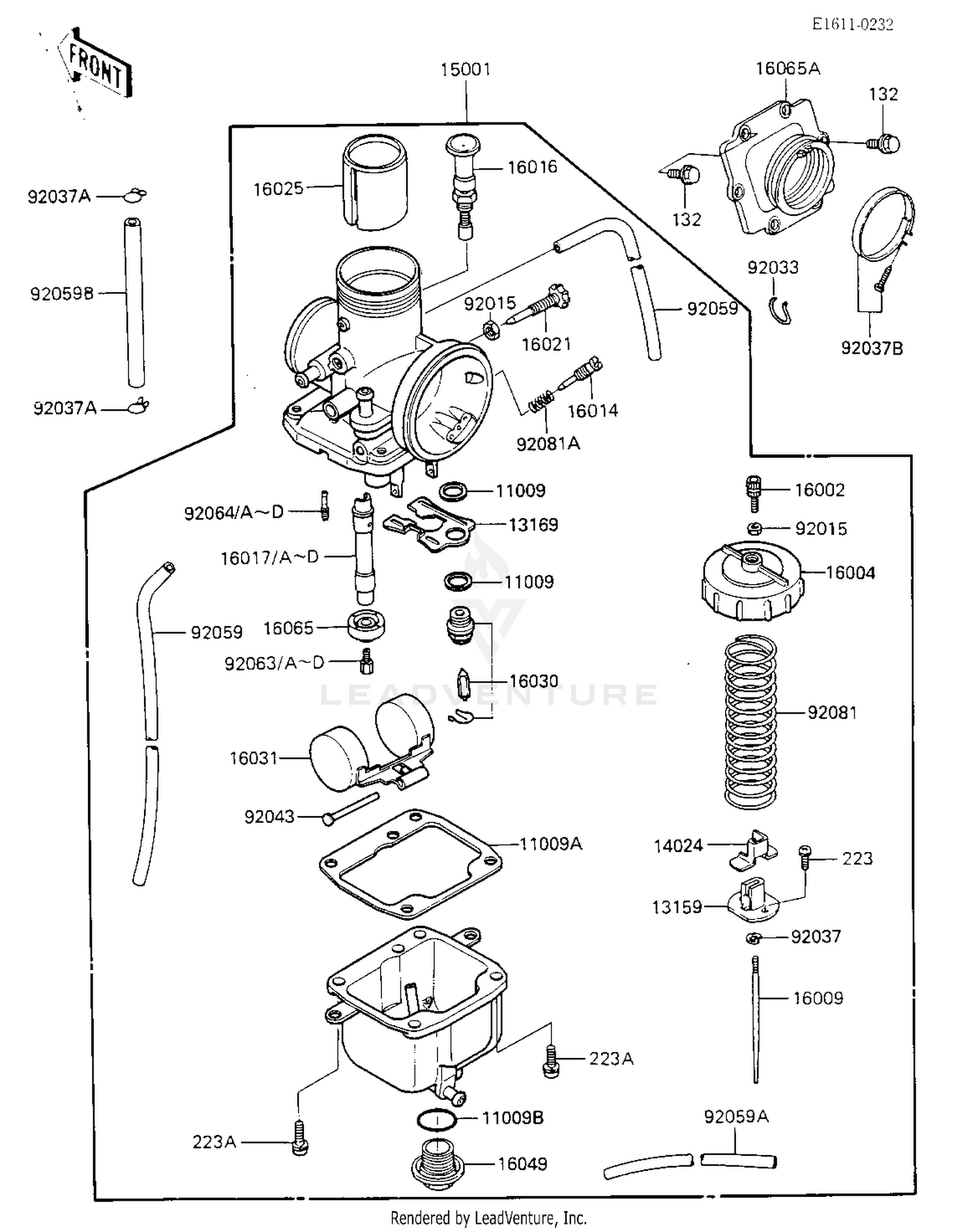

| Ref | Part Number | Description |
|---|
| 132 |
132BA0620 |
BOLT-FLANGED-SMALL,6X20 This part replaces 132G0620. Price: $2.49 |
| 223 |
223AA0307 |
SCREW-PAN-WS-CROS This part replaces 223B0308. Price: $5.01 |
| 11009 |
11009-1076 |
GASKET,FLOAT VALVE Price: $4.94 |
| 11009A |
16019-028 |
GASKET,FLOAT CHAMBER Price: $19.49 |
| 11009B |
16038-009 |
GASKET-COVER Price: $9.73 |
| 13159 |
13159-1010 |
CONNECTOR,THROTTLE Price: $14.79 |
| 13169 |
13169-1520 |
PLATE,FLOAT CHAMBER Price: $11.40 |
| 14024 |
14025-1478 |
COVER,THROTTLE Price: $6.84 |
| 15001 |
15001-1311 |
CARBURETOR-ASSY Price: $336.94 |
| 16002 |
16002-011 |
ADJUSTER-CABLE Price: $13.97 |
| 16004 |
16004-026 |
CAP-MIXING CHAMBER Price: $53.61 |
| 16009 |
16009-1338 |
NEEDLE-JET,6FJ58 Price: $37.40 |
| 16014 |
16014-006 |
SCREW Price: $17.15 |
| 16016 |
16016-1026 |
PLUNGER,STARTER Price: $72.43 |
| 16017C |
16017-1234 |
JET-NEEDLE,R-2 Price: $45.79 |
| 16021 |
16021-1108 |
SCREW-THROTTLE STOP Price: $18.83 |
| 16025 |
16025-1138 |
VALVE-THROTTLE,CA 3.0 Price: $99.62 |
| 16030 |
16030-1015 |
VALVE-FLOAT Price: $55.23 |
| 16031 |
16031-030 |
FLOAT Price: $64.25 |
| 16049 |
16049-1005 |
COVER,MAIN JET Price: $23.41 |
| 16065 |
16065-1045 |
HOLDER,NEEDLE JET This part replaces 16065-1040. Price: $71.77 |
| 16065A |
16065-1150 |
HOLDER-CARBURETOR Price: $71.77 |
| 92015 |
16003-006 |
NUT,ADJUST LOCK Price: $7.34 |
| 92033 |
92036-018 |
RING-SNAP Price: $3.89 |
| 92037 |
16008-010 |
CIRCLIP Price: $9.21 |
| 92037A |
92037-147 |
CLAMP,TUBE Price: $7.34 |
| 92037B |
92037-1486 |
CLAMP,55MM Price: $8.66 |
| 92043 |
16032-008 |
PIN,FLOAT Price: $6.57 |
| 92059 |
92059-147 |
HOSE,FUEL OVERFLOW This part replaces 92059-1142. Price: $36.17 |
| 92059A |
92059-1233 |
TUBE,3.5X6.5X300 Price: $6.66 |
| 92059B |
92059-3731 |
TUBE,2.5X5.8X270 This part replaces 92059-1812. Price: $9.11 |
| 92063D |
92063-050 |
JET-MAIN NO 350A Price: $14.24 |
| 92064B |
92064-044 |
JET-PILOT NO 45 Price: $19.70 |
| 92081 |
16006-028 |
SPRING,THROTTLE VALVE Price: $11.14 |
| 92081A |
16022-007 |
SPRING,PILOT AIR SCREW Price: $8.13 |
