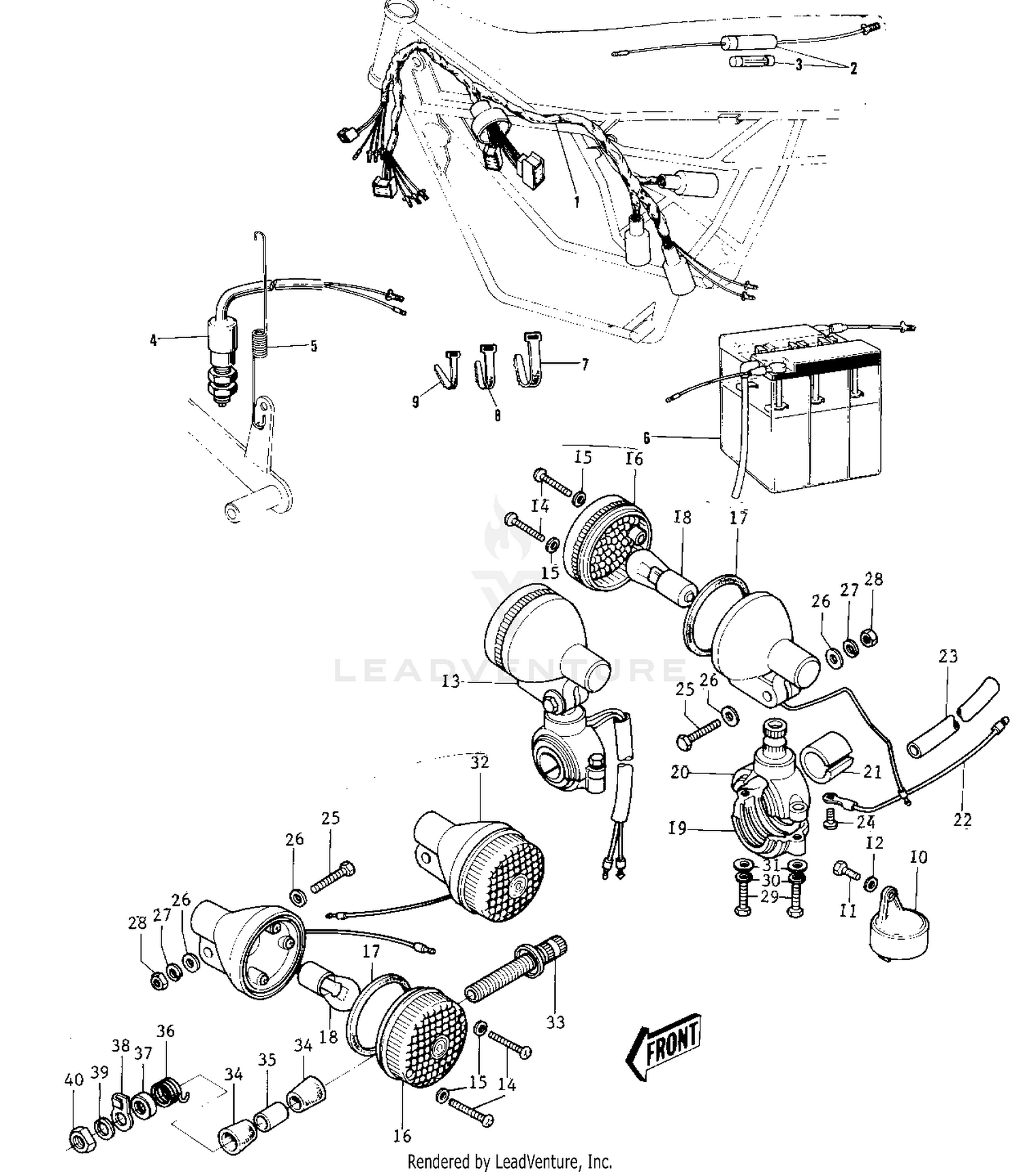

| Ref | Part Number | Description |
|---|
| 1 |
26001-063 |
WIRING HARNESS-MAIN Price: $98.46 |
| 2 |
26004-008 |
FUES ASSY Price: $22.35 |
| 3 |
26006-003 |
FUSE,GLASS TUBE,6.4X25,10 Price: $4.72 |
| 4 |
27010-1482 |
SWITCH,REAR BRAKE This part replaces 27010-015. Price: $35.68 |
| 5 |
27011-011 |
SPRING-BRAKE LAMP SW Price: $8.51 |
| 6 |
K26012-006 |
YUA BAT 6N4-2A-3 Price: $31.57 |
| 7 |
92072-030 |
BAND,L=123 Price: $5.00 |
| 8 |
92072-031 |
BAND,L=149 Price: $5.00 |
| 9 |
92072-032 |
BAND,L=218 Price: $5.00 |
| 10 |
27002-015 |
RELAY-TURN SIGNAL Price: $66.68 |
| 11 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 12 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 13 |
23037-005 |
LAMP ASY-FR TURN SIG Price: $99.53 |
| 14 |
220E0420A |
SCREW-PAN HEAD,4X20 Price: $2.76 |
| 15 |
23058-002 |
WASHER,PLAIN,4MM Price: $2.49 |
| 16 |
23048-1001 |
LENS,TURN SIGNAL LAMP Price: $10.57 |
| 17 |
23050-003 |
GASKET-SIG LAMP LENS Price: $5.80 |
| 18 |
92069-056 |
BULB,6V 21CP Price: $6.41 |
| 19 |
23051-1013 |
BRACKET,SIGNAL LAMP Price: $22.30 |
| 20 |
23051-1004 |
BRACKET,FRNT TURN SIG Price: $38.07 |
| 21 |
23066-003 |
DAMPER RUBBER Price: $7.71 |
| 22 |
26011-061 |
WIRE-TURN SIGNAL LEAD Price: $5.44 |
| 23 |
26009-004 |
COVER-WIRING HARNESS Price: $1.97 |
| 24 |
92009-1123 |
SCREW,3X5 This part replaces 220B0305A. Price: $0.59 |
| 25 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 26 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 27 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 28 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 29 |
110R0516 |
BOLT,5X16 This part replaces 110N0516. Price: $3.75 |
| 30 |
461DA0500 |
WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71 |
| 31 |
410S0500 |
W-PLAIN-S,5MM This part replaces 410D0500. Price: $1.59 |
| 32 |
23040-033 |
LAMP-REAR TURN SIGNAL Price: $147.39 |
| 33 |
23051-037 |
BKT-RR SIGNAL LAMP Price: $41.42 |
| 34 |
92075-148 |
DAMPER RUBBER Price: $4.03 |
| 35 |
92027-168 |
COLLAR 12.7X17.3X30 Price: $4.57 |
| 36 |
92081-111 |
SPRING Price: $3.45 |
| 37 |
92022-235 |
WASHER CUP 12.5X35X4T Price: $5.51 |
| 38 |
92037-087 |
CLAMP-RR SIGNAL LAMP Price: $3.83 |
| 39 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
