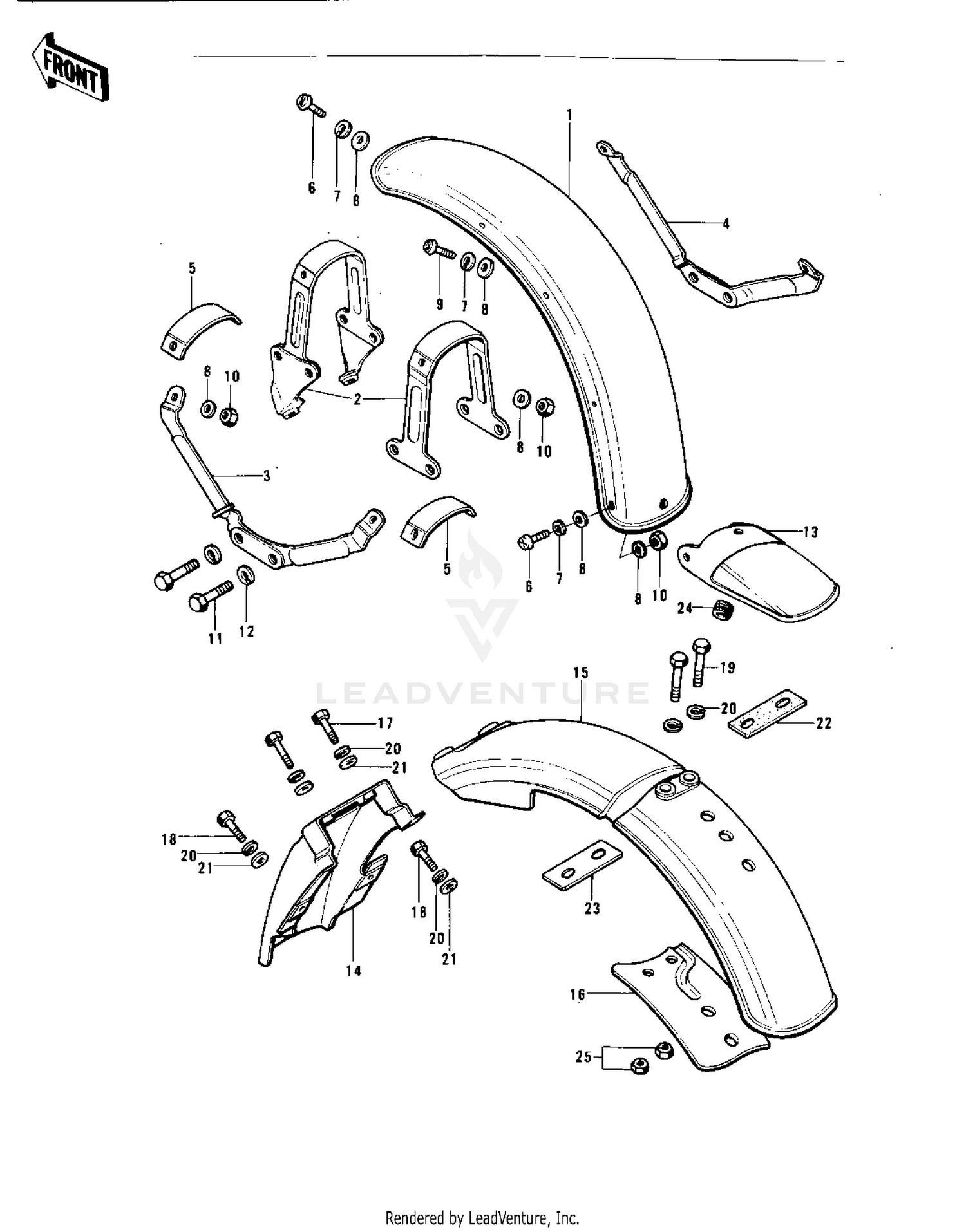

| Ref | Part Number | Description |
|---|
| 1 |
35004-103 |
FENDER-FR Price: $39.68 |
| 2 |
35009-034 |
BRACE,FRONT FENDER Price: $52.91 |
| 3 |
35011-031 |
STAY,FRONT FENDER L.H Price: $67.44 |
| 4 |
35011-032 |
STAY,FRONT FENDER R.H Price: $67.44 |
| 5 |
35013-016 |
PLATE,FRONT FENDER Price: $12.80 |
| 6 |
220E0616 |
SCREW PAN HEAD 6X16 Price: $3.52 |
| 7 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 8 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 9 |
220E0620 |
SCREW-PAN-CROS,6X20 Price: $3.97 |
| 10 |
311AA0600 |
NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 11 |
115BA0818 |
BOLT-SMALL-UPSET,8X18 This part replaces 115G0818. Price: $5.61 |
| 12 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 13 |
35019-010 |
FLAP,FRONT FENDER Price: $7.73 |
| 16 |
35034-022 |
BRACKET,REAR FENDER Price: $9.14 |
| 17 |
112BA0622 |
BOLT-UPSET This part replaces 112B0622. Price: $3.74 |
| 18 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 19 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 20 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 21 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 22 |
92075-072 |
DAMPER-RUBBER Price: $1.39 |
| 23 |
35026-008 |
BRACKET,REAR FENDER Price: $6.07 |
| 24 |
92071-024 |
GROMMET Price: $4.65 |
