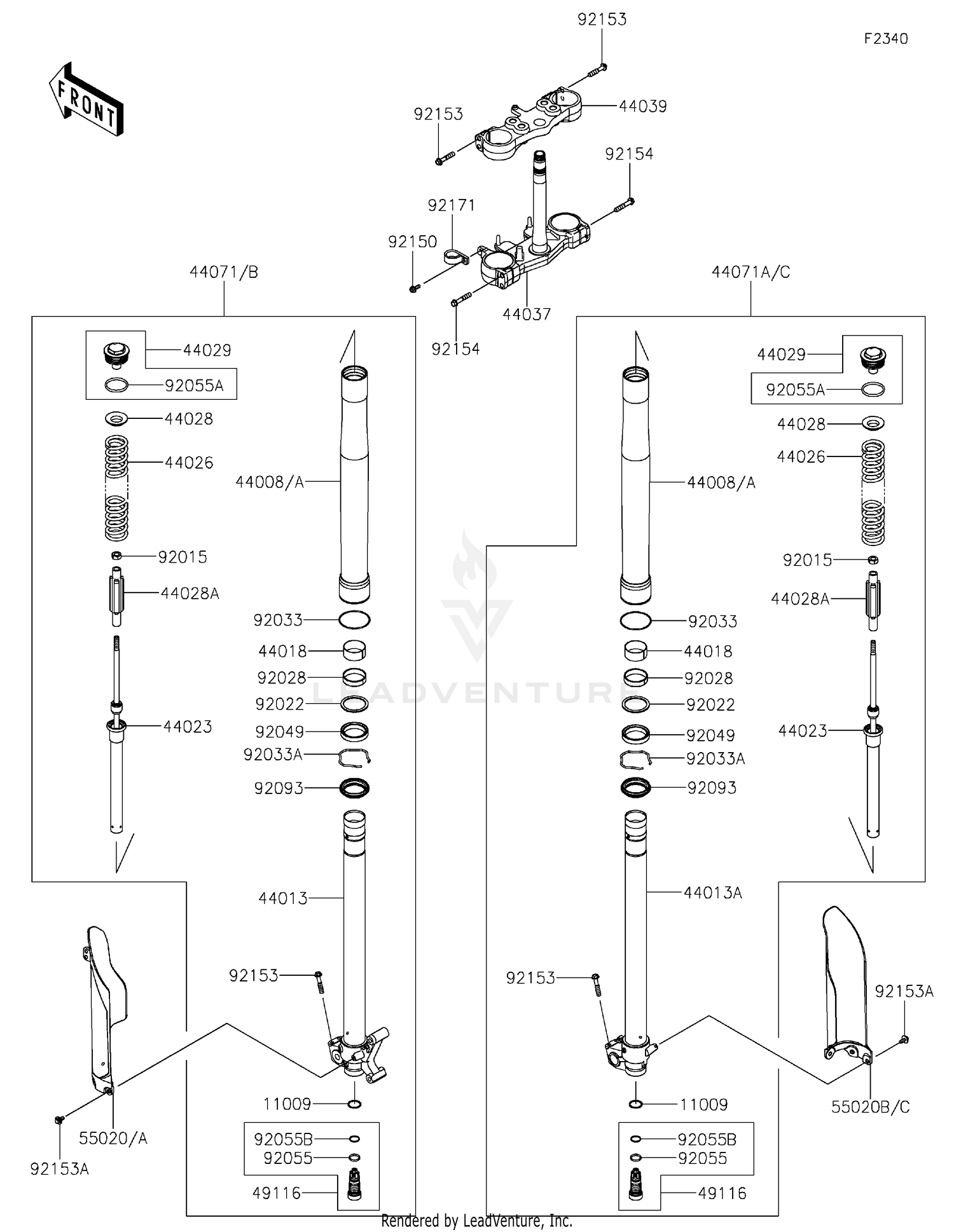

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1592 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 44008 |
44008-0032-KX |
PIPE-FORK OUTER,SILVER Price: $461.27 |
| 44008A |
44008-0119-828 |
PIPE-FORK OUTER,K.GOLD Price: $440.08 |
| 44013 |
44013-0090-458 |
PIPE-FORK INNER,LH,P.SILVER Price: $342.60 |
| 44013A |
44013-0092-458 |
PIPE-FORK INNER,RH,P.SILVER Price: $342.60 |
| 44018 |
44018-1056 |
PISTON-FORK,INNER PIPE Price: $28.45 |
| 44023 |
44023-0156 |
CYLINDER-SET-FORK Price: $381.04 |
| 44026 |
44026-0239 |
SPRING-FRONT FORK Price: $99.25 |
| 44028 |
44028-1081 |
GUIDE-FORK SPRING Price: $12.12 |
| 44028A |
44028-1084 |
GUIDE-FORK SPRING Price: $12.85 |
| 44029 |
44029-0010-KX |
SEAT-FORK SPRING,SILVER Price: $117.08 |
| 44037 |
44037-0190 |
HOLDER-FORK UNDER Price: $597.50 |
| 44039 |
44039-0198 |
HOLDER-FORK UPPER Price: $274.89 |
| 44071 |
44071-1402 |
DAMPER-ASSY,LH Price: $956.21 |
| 44071A |
44071-1403 |
DAMPER-ASSY,RH Price: $956.21 |
| 44071B |
44071-1629 |
DAMPER-ASSY,LH Price: $956.21 |
| 44071C |
44071-1630 |
DAMPER-ASSY,RH Price: $956.21 |
| 49116 |
49116-1145 |
VALVE-ASSY,FORK Price: $177.89 |
| 55020 |
55020-2231-290 |
GUARD,FORK,LH,L.GREEN Price: $55.96 |
| 55020A |
55020-2231-6Z |
GUARD,FORK,LH,BLACK Price: $55.96 |
| 55020B |
55020-2232-290 |
GUARD,FORK,RH,L.GREEN Price: $55.96 |
| 55020C |
55020-2232-6Z |
GUARD,FORK,RH,BLACK Price: $55.96 |
| 92015 |
92015-1839 |
NUT Price: $19.64 |
| 92022 |
92022-1299 |
WASHER Price: $8.58 |
| 92028 |
92028-1581 |
BUSHING Price: $21.80 |
| 92033 |
92033-0080 |
RING-SNAP Price: $5.95 |
| 92033A |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92049 |
92049-1373 |
SEAL-OIL Price: $28.98 |
| 92055 |
670B2018 |
O RING,18MM This part replaces 92055-1156. Price: $1.42 |
| 92055A |
92055-1333 |
RING-O,FORK,AIR TUBE Price: $6.00 |
| 92055B |
92055-1502 |
RING-O,FORK VALVE Price: $7.45 |
| 92093 |
92093-1342 |
SEAL,FORK OUTER TUBE Price: $18.72 |
| 92150 |
92150-1802 |
BOLT,5X16 Price: $5.00 |
| 92153 |
92153-0020 |
BOLT,8X40 Price: $5.59 |
| 92153A |
92153-0936 |
BOLT,FLANGED,6X14 Price: $2.97 |
| 92154 |
92154-4062 |
BOLT,8X40 Price: $12.68 |
