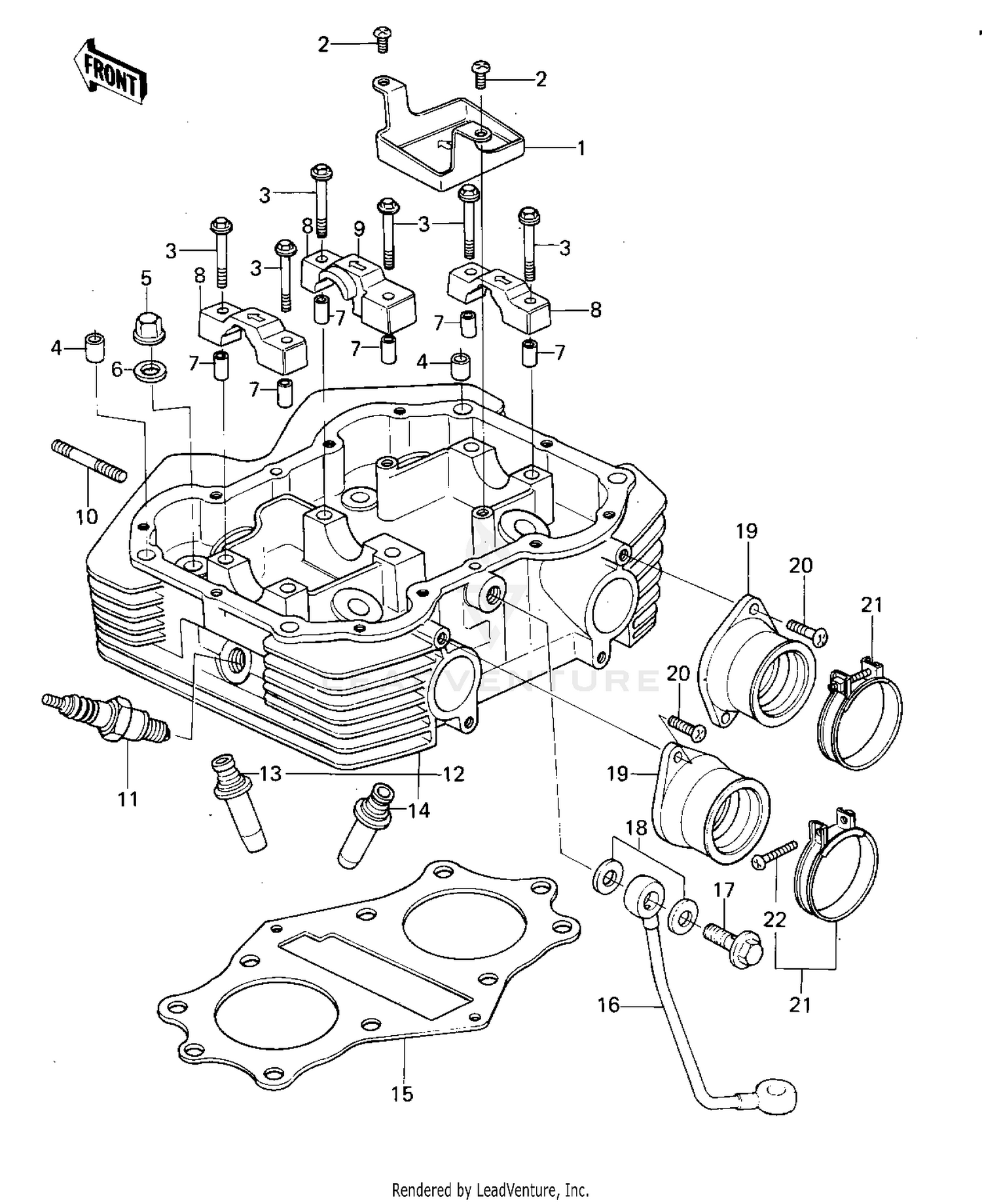

| Ref | Part Number | Description |
|---|
| 1 |
11012-1027 |
CAP,CYLINDER HEAD OIL Price: $4.04 |
| 1 |
12020-1001 |
SHAFT,ROCKER Price: $11.72 |
| 2 |
11009-1106 |
GASKET,16X19.7X1.5 Price: $6.26 |
| 2 |
220AA0610 |
SCREW-PAN-CROS,6X10 This part replaces 220B0610. Price: $3.23 |
| 3 |
92003-206 |
BOLT,HEX HEAD,6X38 Price: $8.93 |
| 3 |
92210-1490 |
NUT,6MM This part replaces 92016-061. Price: $4.69 |
| 4 |
92009-1032 |
SCREW,ADJUSTING Price: $7.29 |
| 4 |
92043-1037 |
PIN,DOWEL,10X14 Price: $0.74 |
| 5 |
12016-1001 |
ARM,ROCKER Price: $88.89 |
| 5 |
92015-076 |
NUT,CYLINDER HEAD Price: $13.08 |
| 6 |
12011-004 |
COLLET,RETAINER Price: $5.46 |
| 6 |
92022-1005 |
WASHER,10.5X22X1.6 Price: $5.01 |
| 7 |
12009-006 |
RETAINER,VALVE SPRING Price: $11.50 |
| 7 |
92042-007 |
PIN,DOWEL,6.3X8X14 Price: $5.70 |
| 8 |
12007-013 |
SPRING,OUTER VALVE Price: $16.53 |
| 8 |
14022-1002 |
CAP,BRG,HEAD,L.H&R.H Price: $60.18 |
| 9 |
12007-014 |
SPRING,INNER VALVE Price: $16.53 |
| 9 |
14022-1003 |
CAP,BRG.HEAD,CENTER Price: $42.19 |
| 10 |
92004-049 |
STUD,6X46 Price: $10.26 |
| 10 |
92049-016 |
SEAL-OIL,RV37129.5 Price: $18.35 |
| 11 |
12010-006 |
SEAT,VLV INNER SPRING Price: $3.49 |
| 11 |
B7ES |
SPARK PLUG B7ES Price: $3.50 |
| 12 |
11002-1003 |
CYLINDER HEAD Price: $634.22 |
| 12 |
12010-005 |
SEAT,VLV OUTER SPRING Price: $8.12 |
| 13 |
12005-1001 |
VALVE,EXHAUST Price: $64.70 |
| 13 |
49002-1010 |
GUIDE,EXHAUST VALVE Price: $40.63 |
| 14 |
12013-003 |
GUIDE,INLET VALVE Price: $46.74 |
| 15 |
11004-1297 |
GASKET-HEAD,CYLINDER This part replaces 11004-1008. Price: $90.18 |
| 16 |
32032-1084 |
PIPE,OIL Price: $42.61 |
| 17 |
92001-1017 |
BOLT,BANJO,10X25 Price: $17.09 |
| 18 |
11009-1105 |
GASKET,10X14.5X1.5 Price: $6.51 |
| 19 |
16065-1002 |
HOLDER,CARBURETOR Price: $44.24 |
| 20 |
220B0618 |
SCREW-PAN-CROS,6X18 Price: $3.35 |
| 21 |
92037-1021 |
CLAMP,CARBURETOR Price: $3.77 |
| 22 |
220AA0530 |
SCREW-PAN-CROS This part replaces 220B0530. Price: $3.70 |
