Home / MARINE / Marine Diesel Engines / D11A-B / METERS/IGNITION SWITCH ('75 S)

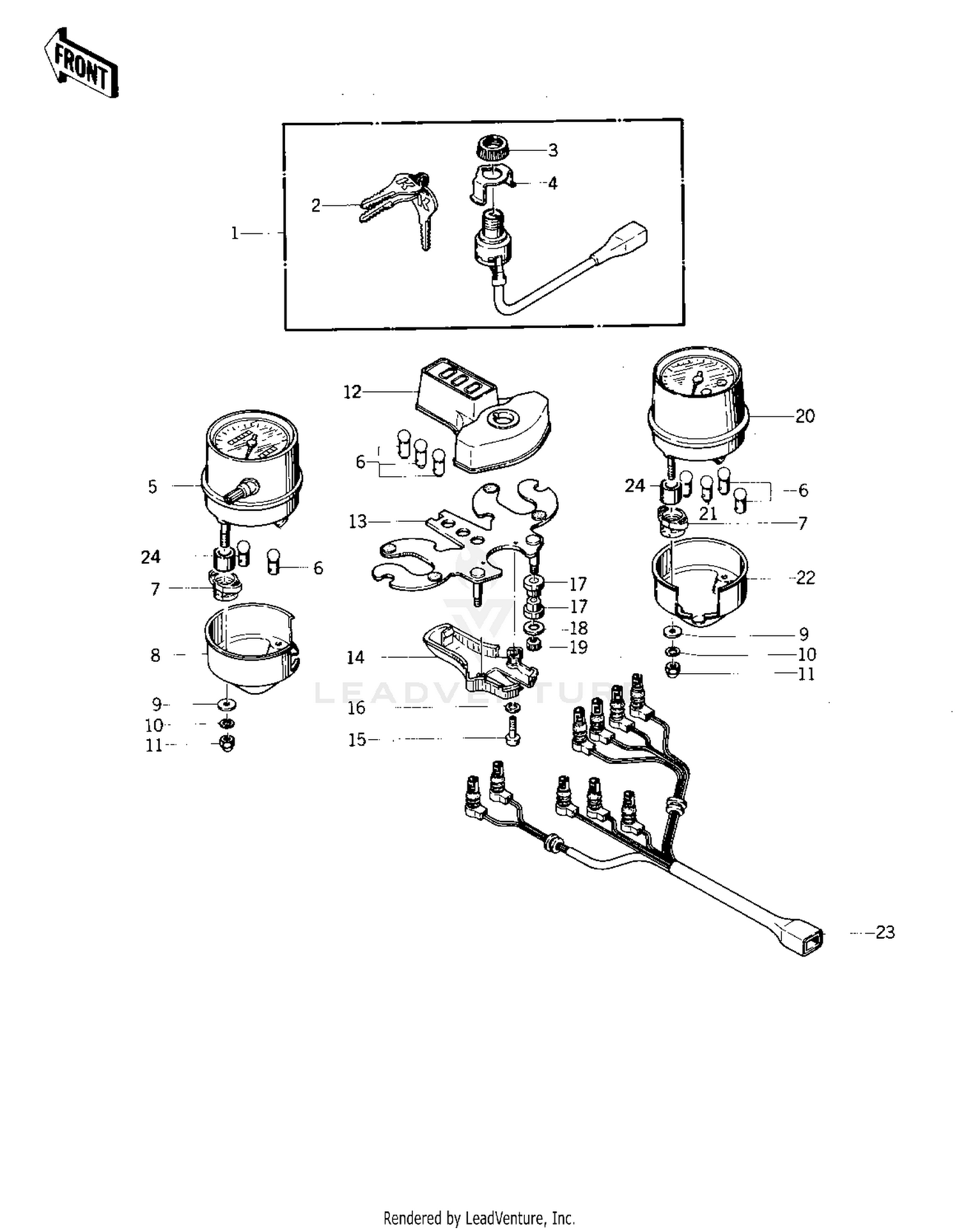

METERS/IGNITION SWITCH ('75 S)

METERS/IGNITION SWITCH ('75 S)

Parts (34)

RefPart NumberDescription
1 27005-075 SWITCH ASSY IGNITION Price: $165.41
1 461F0400 WASHER SPRING 4MM Price: $0.47
2 27008-064-71 KEY SET, #771 Price: $30.54
2 27008-064-72 KEY SET, #772 Price: $13.34
2 27008-064-73 KEY SET,#773 Price: $27.59
2 27008-064-74 KEY SET,#774 Price: $27.59
2 27008-064-75 KEY SET, #775 Price: $30.68
2 27008-064-76 KEY SET, #776 Price: $23.28
2 27008-064-77 KEY SET, #777 Price: $27.68
2 27008-064-78 KEY SET, #778 Price: $13.33
2 27008-064-79 KEY SET, #779 Price: $27.68
2 27008-064-80 KEY SET, #780 Price: $27.68
2 27008-1013 KEY,BLANK Price: $23.31
3 27007-004 NUT,IGNITION SW LOCK Price: $15.94
4 27019-004 HOLDER,IGNITION SW Price: $10.89
5 25005-126 SPEEDOMETER ASSY,MPH Price: $361.75
5 25005-127 SPEEDO ASSY,KPH (Canada) Price: $279.59
6 92069-018 BULB 12V 3W Price: $4.87
7 92075-268 DAMPER RUBBER Price: $4.03
8 25012-020 COVER SPEEDOMETER Price: $57.99
9 410AA0500 WASHER-PLAIN-SMALL This part replaces 411B0500. Price: $0.47
10 461DA0500 WASHER-SPRING,5MM This part replaces 461F0500. Price: $0.71
11 322N0500 NUT-CAP,5MM Price: $4.06
12 25023-013 COVER INDICATOR LIGHT Price: $62.09
13 25008-037 BRACKET METER Price: $52.51
14 25024-005 COVER METER BRACKET Price: $9.49
15 220AA0412 SCREW-PAN-CROS,4X12 This part replaces 220B0412. Price: $0.21
17 92075-257 DAMPER RUBBER Price: $5.03
18 92022-284 WASHER,PLAIN,6MM Price: $5.21
19 311AA0600 NUT-HEX,6MM This part replaces 311B0600. Price: $0.96
20 25016-027 TACHOMETER ASSY Price: $292.37
21 92069-017 BULB 12V 1.5W Price: $4.92
22 25012-019 COVER TACHOMETER Price: $37.22
23 25011-047 SOCKET SPEEDO&TACHO Price: $63.43
