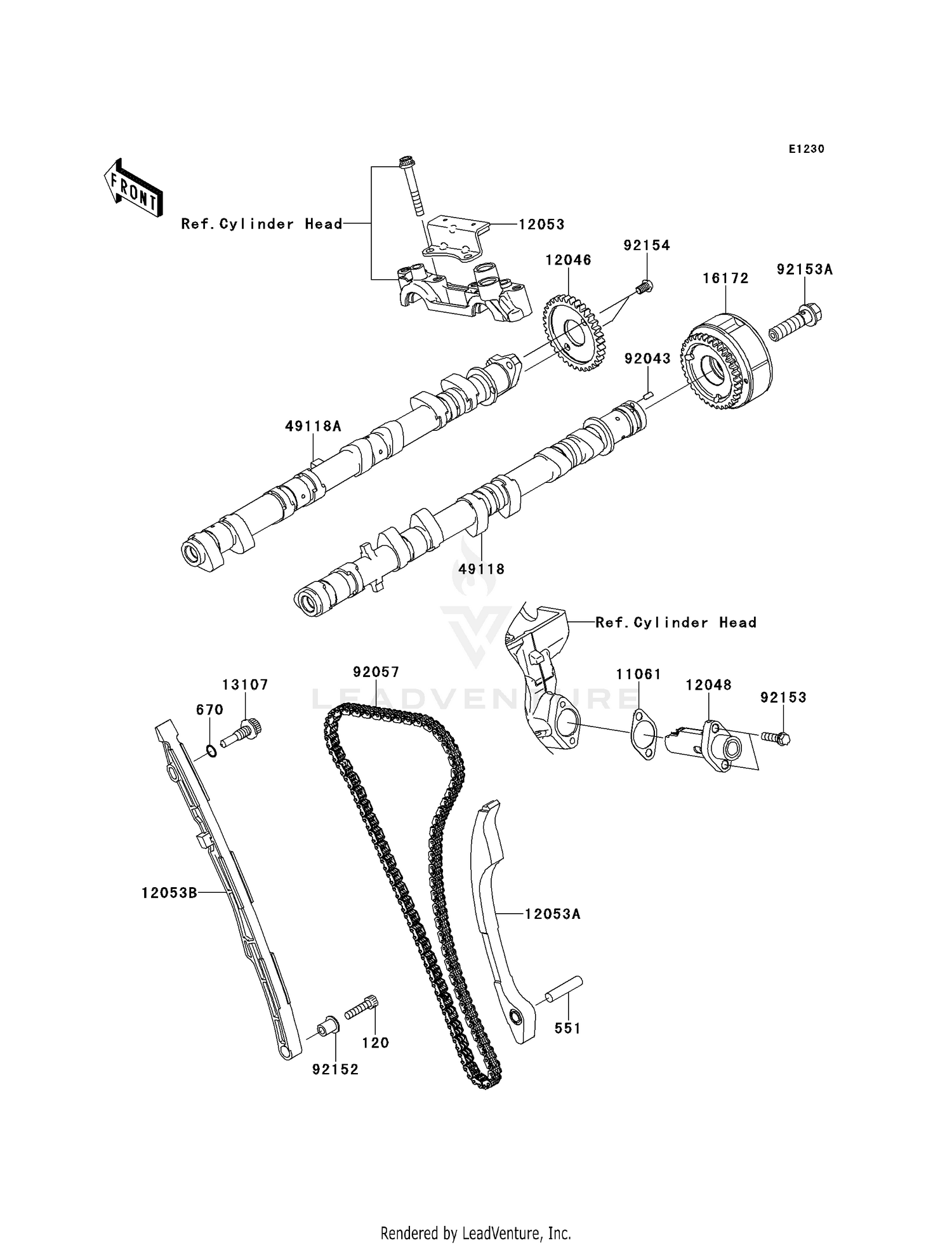

| Ref | Part Number | Description |
|---|
| 120 |
120CA0625 |
BOLT-SOCKET,6X25 Price: $2.06 |
| 551 |
551A0835 |
PIN-DOWEL Price: $4.69 |
| 670 |
670D1509 |
O RING,9MM Price: $4.69 |
| 11061 |
11061-0299 |
GASKET,TENSIONER Price: $7.69 |
| 12046 |
12046-0085 |
SPROCKET,34T Price: $81.52 |
| 12048 |
12048-0047 |
TENSIONER-ASSY,HYDRAULIC Price: $134.87 |
| 12053 |
12053-0067 |
GUIDE-CHAIN,UPP Price: $20.04 |
| 12053A |
12053-0093 |
GUIDE-CHAIN,RR Price: $74.86 |
| 12053B |
12053-0128 |
GUIDE-CHAIN,FR Price: $53.44 |
| 13107 |
13107-0157 |
SHAFT,CHAIN GUIDE Price: $10.65 |
| 16172 |
16172-0559 |
ACTUATOR,VVT This part replaces 16172-0021. Price: $493.37 |
| 49118 |
49118-0150 |
CAMSHAFT-COMP,INTAKE Price: $688.01 |
| 49118A |
49118-0151 |
CAMSHAFT-COMP,EXHAUST Price: $688.01 |
| 92043 |
92043-0119 |
PIN,3.665X7.8 Price: $2.15 |
| 92057 |
92057-0649 |
CHAIN,92RH2015-130M This part replaces 92057-0109. Price: $113.56 |
| 92152 |
92152-0413 |
COLLAR Price: $8.68 |
| 92153 |
92153-1560 |
BOLT,FLANGED-SMALL,6X22 Price: $2.15 |
| 92153A |
92153-3733 |
BOLT,FLANGED,11X40 Price: $25.46 |
