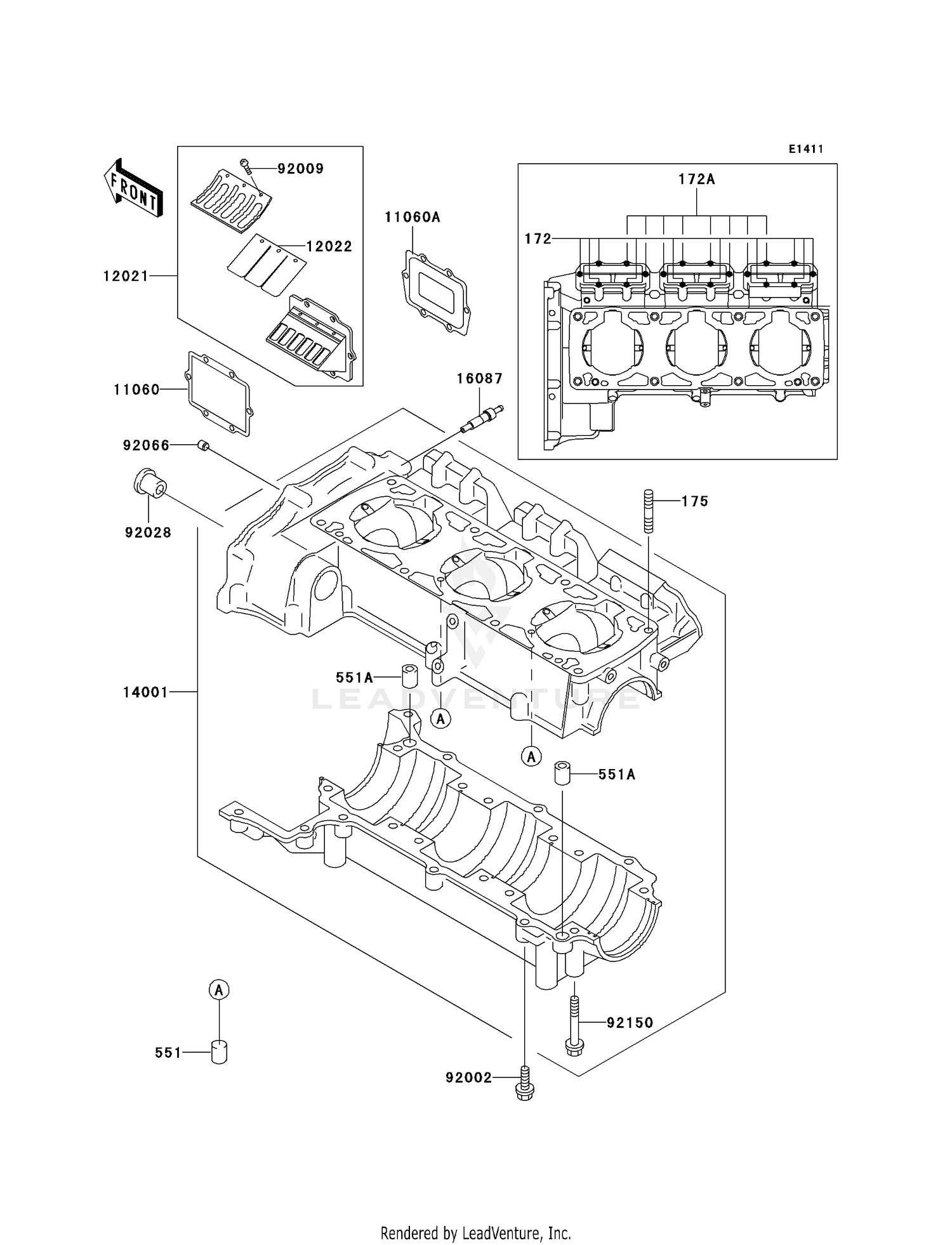

CRANKCASE
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 172 | 172R0620 | BOLT-STUD Price: $7.83 |
| 172A | 172R0630 | BOLT-STUD Price: $8.24 |
| 175 | 175R1035 | BOLT-STUD-FINE Price: $10.56 |
| 551 | 551R0612 | PIN-DOWEL Price: $4.69 |
| 551A | 551R1012 | PIN-DOWEL Price: $6.57 |
| 11060 | 11060-3717 | GASKET,REED VALVE Price: $17.78 |
| 11060A | 11060-3757 | GASKET,REED VALVE Price: $17.78 |
| 12021 | 12021-3713 | VALVE-ASSY-REED Price: $171.25 |
| 12022 | 12022-3711 | VALVE-REED Price: $24.89 |
| 14001 | 14001-5385 | SET-CRANKCASE This part replaces 14001-5372. Price: $989.73 |
| 16087 | 16087-1001 | VALVE-CHECK Price: $29.15 |
| 92002 | 92002-3726 | BOLT,6X30 Price: $4.69 |
| 92009 | 92009-1014 | SCREW,REED VALVE Price: $2.49 |
| 92028 | 92028-3718 | BUSHING Price: $9.43 |
| 92066 | 92066-1213 | PLUG Price: $4.74 |
