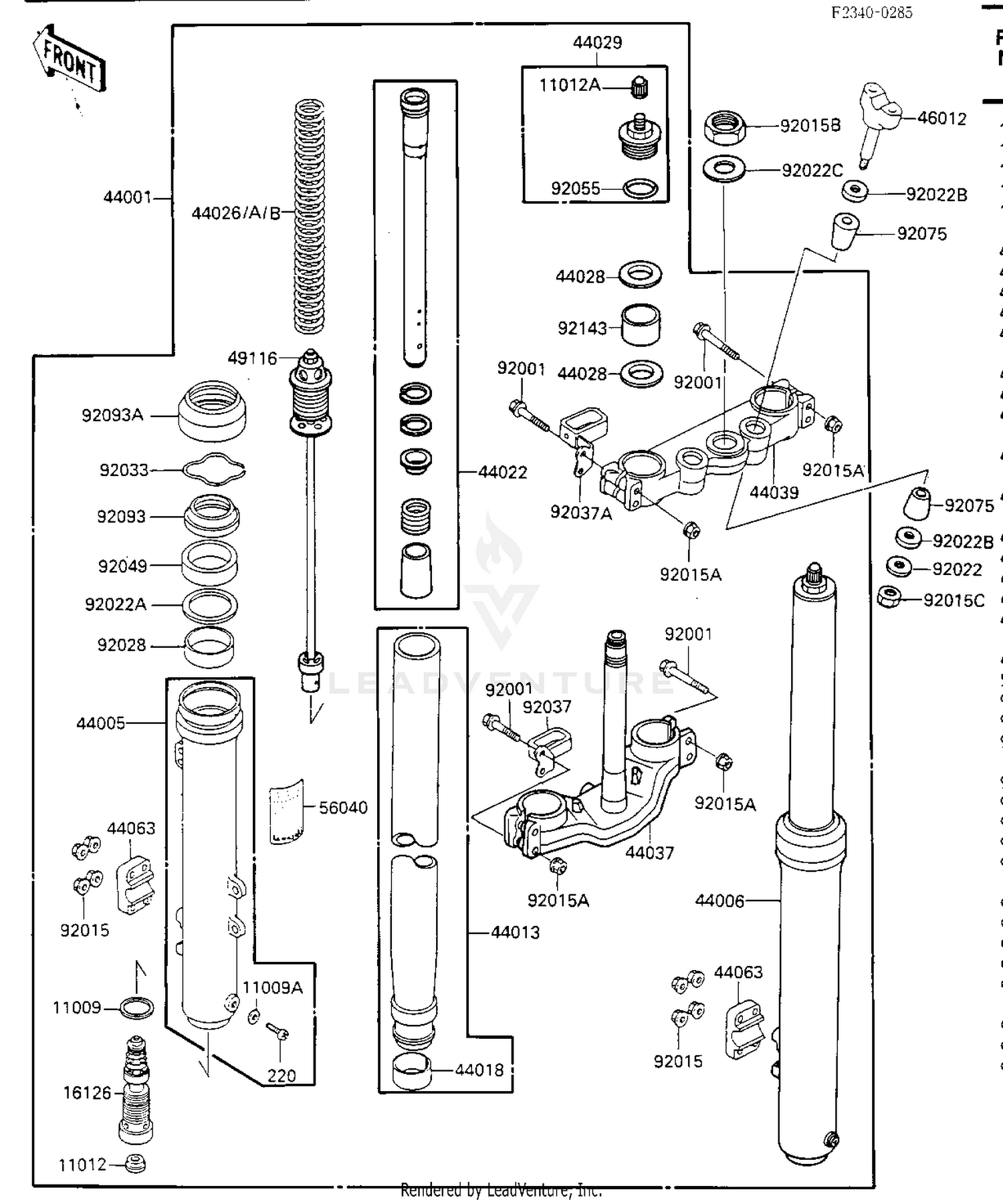

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1592 |
GASKET,FORK CYLINDER BOLT Price: $6.16 |
| 11009A |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 11012 |
11012-1381 |
CAP,FORK CYLINDER Price: $6.11 |
| 11012A |
11012-1391 |
CAP,VALVE AIR Price: $5.73 |
| 16126 |
16126-1185 |
VALVE,FORK CYLINDER Price: $155.64 |
| 44001 |
44001-1645 |
FORK-FRONT Price: $1,439.18 |
| 44005 |
44005-1270 |
PIPE-LEFT FORK OUTER This part replaces 44005-1253. Price: $354.17 |
| 44006 |
44006-1267 |
PIPE-RIGHT FORK OUTER This part replaces 44006-1243. Price: $303.48 |
| 44013 |
44013-1256 |
PIPE-FORK INNER Price: $376.15 |
| 44018 |
44018-1005 |
PISTON-FORK Price: $41.55 |
| 44022 |
44022-1205 |
CYLINDER-FORK Price: $125.10 |
| 44026 |
44026-1314 |
SPRING-FRONT FORK,K=0 Price: $81.29 |
| 44028 |
44028-1010 |
GUIDE-FORK SPRING Price: $11.30 |
| 44029 |
44029-1107 |
SEAT-FORK SPRING Price: $68.07 |
| 44037 |
44037-1208 |
HOLDER-FORK UNDER Price: $457.57 |
| 44039 |
44039-1147 |
HOLDER-FORK UPPER Price: $265.16 |
| 44063 |
44063-1008 |
HOLDER-FRONT AXLE Price: $53.61 |
| 46012 |
46012-1192 |
HOLDER-HANDLE,LWR This part replaces 46012-1167. Price: $40.60 |
| 49116 |
49116-1068 |
VALVE-ASSY,FORK Price: $196.36 |
| 56040 |
56040-1120 |
LABEL,FRONT FORK Price: $6.10 |
| 92001 |
92001-1639 |
BOLT Price: $8.05 |
| 92015 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 92015A |
92015-1485 |
NUT,FLANGED,8MM Price: $5.38 |
| 92015B |
92210-1521 |
NUT,STEERING STEM,22MM This part replaces 92015-1653. Price: $16.69 |
| 92015C |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 92022 |
92022-1088 |
WASHER,10.2X28X2 Price: $4.69 |
| 92022A |
92022-1299 |
WASHER Price: $8.58 |
| 92022B |
92022-1737 |
WASHER Price: $5.52 |
| 92022C |
92022-1873 |
WASHER,STEERING STEM Price: $7.45 |
| 92028 |
92028-1581 |
BUSHING This part replaces 92028-1145. Price: $21.80 |
| 92033 |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92037 |
92037-1627 |
CLAMP Price: $27.70 |
| 92037A |
92037-1628 |
CLAMP Price: $19.52 |
| 92049 |
92049-1295 |
SEAL-OIL,FORK OUTER T Price: $22.14 |
| 92055 |
92055-1123 |
RING-O Price: $6.22 |
| 92075 |
92075-1776 |
DAMPER Price: $8.76 |
| 92093 |
92093-1086 |
SEAL,FORK DUST Price: $19.48 |
| 92093A |
92093-1184 |
SEAL,FORK Price: $22.59 |
| 92143 |
92143-1065 |
COLLAR,L=55.5 Price: $8.76 |
