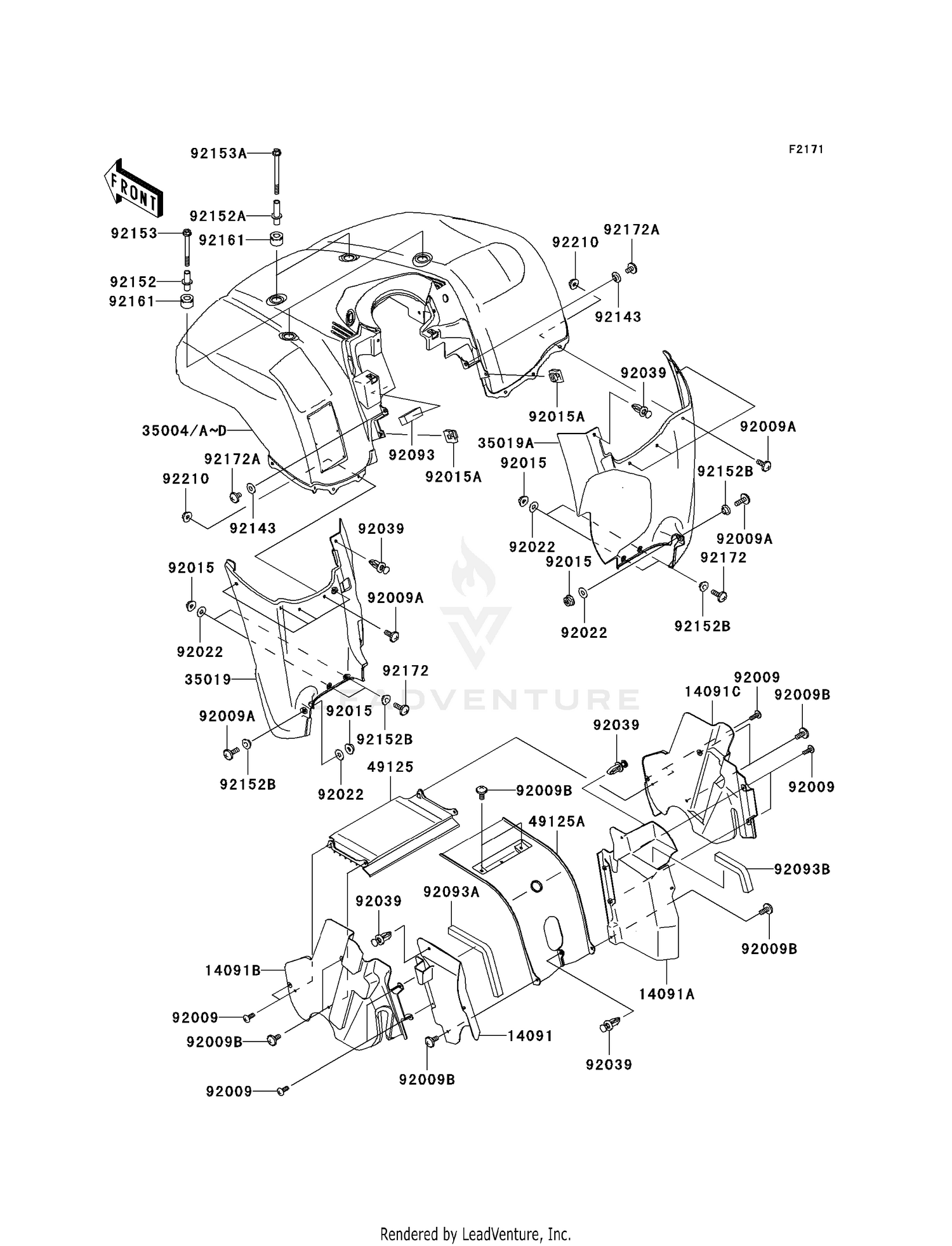

| Ref | Part Number | Description |
|---|
| 14091 |
14091-1282 |
COVER,SIDE,RR,LH Price: $15.79 |
| 14091A |
14091-1283 |
COVER,SIDE,RR,RH Price: $15.79 |
| 14091B |
14091-1428 |
COVER,SIDE,FR,LH Price: $19.59 |
| 14091C |
14091-1429 |
COVER,SIDE,FR,RH Price: $19.59 |
| 35004 |
35004-0040-260 |
FENDER-FRONT,A.RED Price: $323.32 |
| 35004A |
35004-0040-286 |
FENDER-FRONT,W.GREEN Price: $308.71 |
| 35004B |
35004-0040-290 |
FENDER-FRONT,L.GREEN Price: $323.35 |
| 35004D |
35004-0040-839 |
FENDER-FRONT,BLACK Price: $308.69 |
| 35019 |
35019-0038-6Z |
FLAP,FR,LH,F.BLACK Price: $39.01 |
| 35019A |
35019-0039-6Z |
FLAP,FR,RH,F.BLACK Price: $39.01 |
| 49125 |
49125-0006 |
SHROUD,FR,LWR Price: $17.47 |
| 49125A |
49125-1081 |
SHROUD,FR,UPP Price: $25.62 |
| 92009 |
92009-1197 |
SCREW,TAPPING,5X14 Price: $3.92 |
| 92009A |
92009-1694 |
SCREW,6X16 This part replaces 92009-1621. Price: $3.92 |
| 92009B |
92009-1662 |
SCREW,6X14 Price: $3.92 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92015A |
92015-1678 |
NUT,CLAMP,6MM Price: $5.52 |
| 92022 |
92022-1093 |
WASHER,6.5X16X1.0 Price: $2.08 |
| 92039 |
92039-0776 |
RIVET This part replaces 92039-1229. Price: $1.19 |
| 92093 |
92093-0038 |
SEAL,FR FENDER,LH Price: $4.05 |
| 92093A |
92093-0039 |
SEAL,INNER COVER,LH Price: $9.00 |
| 92093B |
92093-0040 |
SEAL,INNER COVER,RH Price: $5.86 |
| 92143 |
92143-1087 |
COLLAR Price: $4.31 |
| 92152 |
92152-0026 |
COLLAR,L=60.7 Price: $11.69 |
| 92152A |
92152-0222 |
COLLAR,L=76.8 Price: $14.54 |
| 92152B |
92152-0224 |
COLLAR Price: $5.65 |
| 92153 |
92153-0982 |
BOLT,FLANGED,8X75 Price: $4.09 |
| 92153A |
92153-0983 |
BOLT,FLANGED,8X95 Price: $4.86 |
| 92161 |
92161-1166 |
DAMPER,L=25.5 Price: $5.73 |
| 92172 |
92172-0002 |
SCREW,6X18 Price: $2.80 |
| 92172A |
92172-0005 |
SCREW,6X10 Price: $2.41 |
