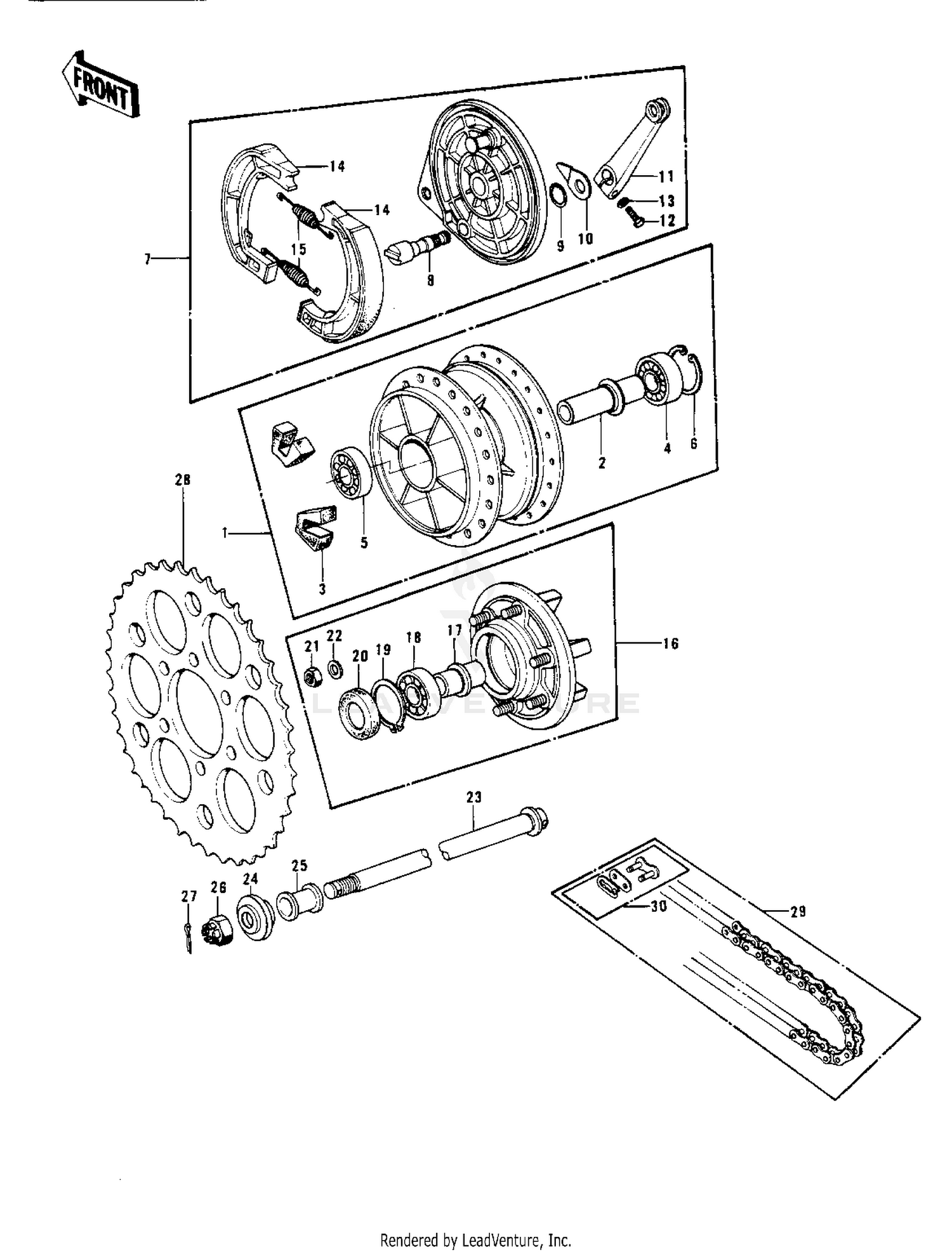

| Ref | Part Number | Description |
|---|
| 1 |
42005-045-21 |
DRUM ASSY,RR BRK,BLK Price: $358.10 |
| 2 |
42010-028 |
COLLAR,RR BRK DRUM Price: $7.16 |
| 3 |
42014-024 |
DAMPER,REAR HUB SHOCK Price: $13.46 |
| 4 |
601B6303U |
BEARING-BALL Price: $26.36 |
| 5 |
601B6303 |
BEARING-BALL,#6303C3 Price: $8.29 |
| 6 |
92033-1042 |
RING-SNAP,47MM Price: $4.22 |
| 7 |
42006-059 |
PANEL-ASY,RR BRK,BLK Price: $304.68 |
| 8 |
42026-016 |
CAM SHAFT,RR BRK PNL Price: $14.71 |
| 9 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 10 |
41085-017 |
INDICATOR,FR BRK SHOE Price: $12.70 |
| 11 |
42029-038 |
LEVER,REAR BRAKE CAM Price: $37.98 |
| 12 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 13 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 14 |
41048-1107 |
SHOE-BRAKE This part replaces 42019-011. Price: $37.39 |
| 15 |
42020-004 |
SPRING-BRAKE SHOE Price: $8.51 |
| 16 |
42008-027 |
COUPLING ASSY,RR BRK Price: $158.78 |
| 17 |
42036-023 |
SLEEVE,COUPLING Price: $38.22 |
| 18 |
601B6205 |
BEARING BALL #6205 Price: $19.57 |
| 19 |
92033-1043 |
RING-SNAP,52MM Price: $8.05 |
| 20 |
92049-1287 |
SEAL-OIL This part replaces 92052-006. Price: $13.08 |
| 21 |
92019-018 |
NUT,8MM Price: $7.24 |
| 22 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 23 |
42031-051 |
AXLE,REAR Price: $75.69 |
| 24 |
42032-055 |
COLLAR,REAR AXLE Price: $15.17 |
| 25 |
42032-056 |
COLLAR,REAR AXLE Price: $9.75 |
| 26 |
92015-1951 |
NUT,CASTLE,16MM This part replaces 92015-055. Price: $11.50 |
| 27 |
550AA4035 |
PIN-COTTER,4.0X35 This part replaces 550D4035. Price: $2.17 |
| 28 |
42041-154 |
REAR SPROCKET 48T Price: $99.85 |
| 28 |
42041-157 |
REAR SPROCKET 44T Price: $114.03 |
