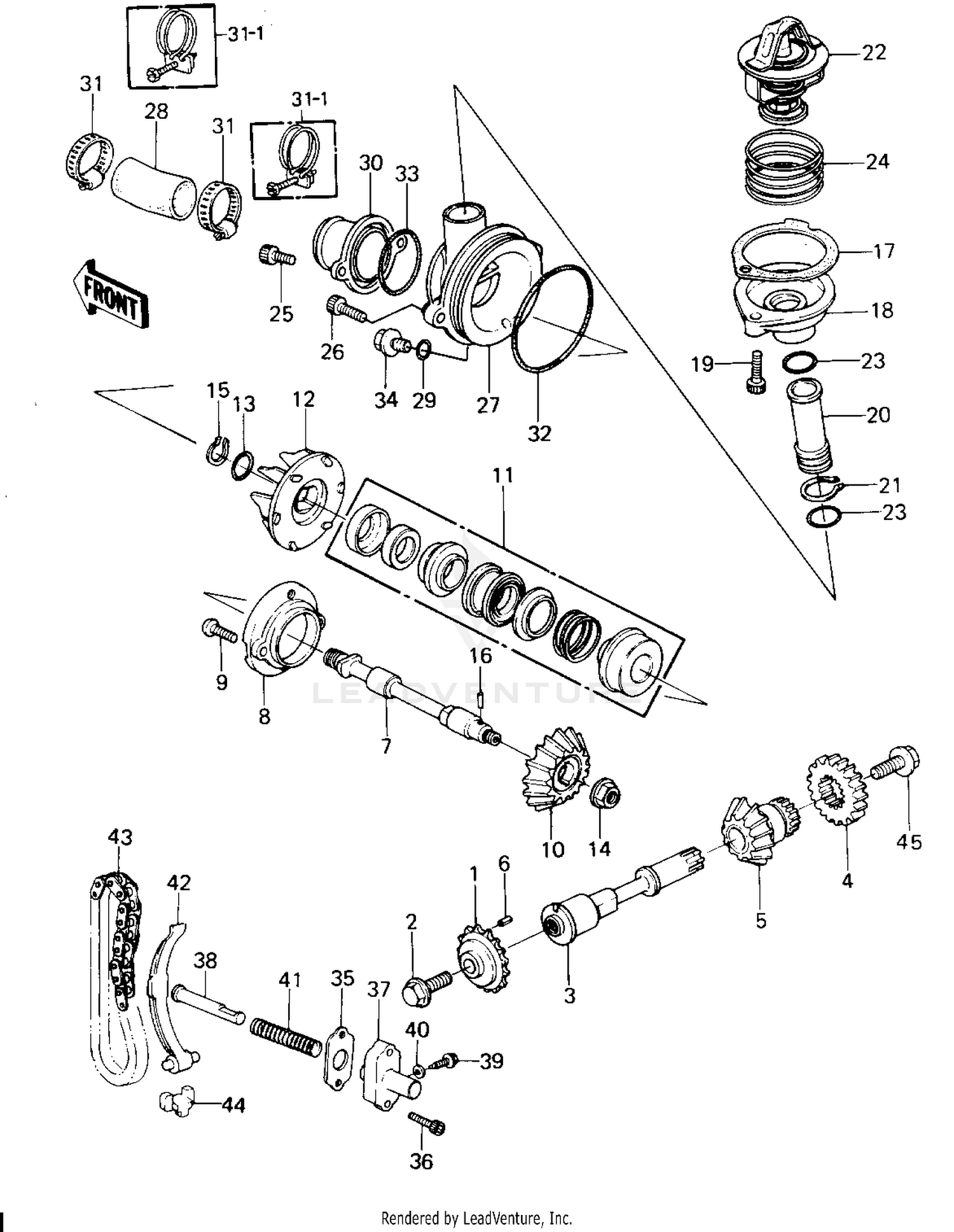

| Ref | Part Number | Description |
|---|
| 1 |
12046-1015 |
SPROCKET,TIMING CHAIN Price: $60.49 |
| 2 |
130BA0820 |
BOLT-FLANGED,8X20 This part replaces 130G0820. Price: $4.14 |
| 3 |
13107-1009 |
SHAFT,WATER PUMP DRIV Price: $121.80 |
| 4 |
13216-1010 |
GEAR,21T,TIMING Price: $34.15 |
| 6 |
555A0408 |
PIN-SPRING,4X8 Price: $3.92 |
| 7 |
13107-1011 |
SHAFT,WATER PUMP Price: $110.58 |
| 8 |
14020-1004 |
RETAINER,MECHA SEAL Price: $29.95 |
| 9 |
220R0516 |
SCREW-PAN-CROS Price: $5.00 |
| 10 |
49022-1006 |
GEAR,BEVEL,WATER PUMP Price: $149.91 |
| 11 |
49063-1001 |
SEAL,MECHANICAL Price: $98.46 |
| 12 |
59256-1001 |
IMPELLER,WATER PUMP Price: $54.35 |
| 13 |
670B1508 |
O RING,8MM Price: $1.29 |
| 14 |
92015-1014 |
NUT,FLANGED,8MM Price: $0.65 |
| 15 |
92033-1024 |
CIRCLIP,11M/M,IMPELER Price: $4.71 |
| 16 |
92042-014 |
PIN,DOWEL,4X15.8 Price: $0.43 |
| 17 |
11009-1087 |
GASKET,THERMOSTAT CAP Price: $7.74 |
| 18 |
11012-1054 |
CAP,THERMOSTAT Price: $35.48 |
| 19 |
120CA0625 |
BOLT-SOCKET,6X25 This part replaces 120P0625. Price: $2.06 |
| 20 |
32032-1184 |
PIPE,WATER BYPASS Price: $32.61 |
| 21 |
480J2000 |
CIRCLIP-TYPE-C,20MM Price: $2.71 |
| 22 |
49054-1001 |
THERMOSTAT Price: $65.32 |
| 23 |
670B2016 |
O RING,16MM Price: $1.36 |
| 24 |
92081-1104 |
SPRING,THERMOSTAT Price: $14.63 |
| 25 |
120CA0616 |
BOLT-SOCKET,6X16 This part replaces 120P0616. Price: $2.49 |
| 26 |
120CA0620 |
BOLT-SOCKET,6X20 This part replaces 120P0620. Price: $1.77 |
| 27 |
14025-1077 |
COVER,WATER PUMP Price: $61.32 |
| 28 |
39062-1020 |
HOSE-COOLING Price: $20.47 |
| 29 |
670B1508 |
O RING,8MM Price: $1.29 |
| 30 |
92005-1011 |
FITTING,SUCTION Price: $26.38 |
| 31 |
92037-1177 |
CLAMP,HOSE Price: $10.37 |
| 34 |
92066-1026 |
PLUG,DRAIN,8X10 Price: $10.19 |
| 35 |
11009-1099 |
GASKET,TIMING TENSONR Price: $4.96 |
| 36 |
120CA0625 |
BOLT-SOCKET,6X25 This part replaces 120P0625. Price: $2.06 |
| 37 |
12049-1007 |
TENSIONER,TIMING CHAN Price: $43.10 |
| 38 |
13116-1014 |
ROD,PUSH,TENSIONER Price: $15.31 |
| 39 |
92001-1155 |
BOLT,TENSIONER ADJUST Price: $5.33 |
| 40 |
92022-077 |
WASHER,6.1X12X1 Price: $3.99 |
| 41 |
92081-1102 |
SPRING,TENSIONER Price: $5.83 |
| 42 |
12053-1027 |
GUIDE,CHAIN,TIMING Price: $65.01 |
| 43 |
92057-1019 |
CHAIN,TIMING,72L Price: $27.75 |
| 44 |
92075-1187 |
DAMPER,TIMING CHAIN Price: $6.68 |
