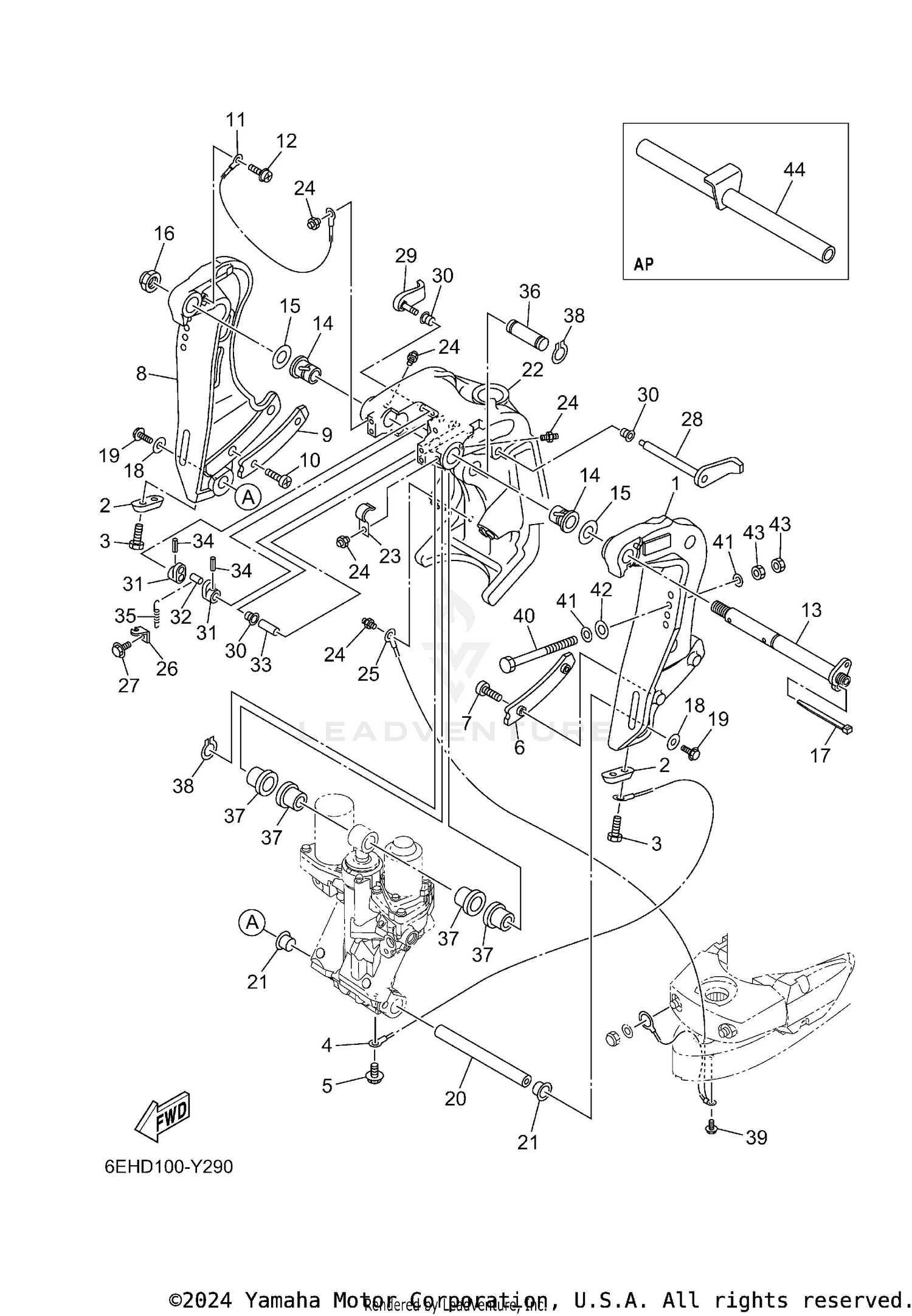

| Ref | Part Number | Description |
|---|
| 1 |
6CB-43111-10-8D |
BRACKET, CLAMP 1 Price: $410.45 |
| 2 |
65W-45251-00-00 |
ANODE Price: $12.75 |
| 3 |
90101-06020-00 |
BOLT Price: $3.95 |
| 4 |
6E5-82148-00-00 |
WIRE, LEAD 4 Price: $22.90 |
| 5 |
97E95-06510-00 |
BOLT, HEXAGON W/W Price: $0.80 |
| 6 |
61A-43132-01-00 |
WASHER, FRICTION Price: $28.55 |
| 7 |
97985-06210-00 |
SCREW, WITH WASHER This part replaces 97885-06010-00. Price: $3.20 |
| 8 |
6CB-43112-10-8D |
BRACKET, CLAMP 2 Price: $401.50 |
| 9 |
61A-43133-01-00 |
WASHER,FRICTION Price: $28.55 |
| 10 |
97985-06210-00 |
SCREW, WITH WASHER This part replaces 97885-06010-00. Price: $3.20 |
| 11 |
6E5-82148-00-00 |
WIRE, LEAD 4 Price: $22.90 |
| 12 |
97885-06012-00 |
SCREW, PAN HEAD This part replaces 97985-06212-00. Price: $3.35 |
| 13 |
64E-43131-30-00 |
BOLT, CLAMP BRACKET Price: $147.85 |
| 14 |
90386-25M31-00 |
BUSH Price: $29.55 |
| 15 |
90201-26M59-00 |
WASHER, PLATE Price: $5.50 |
| 16 |
90185-22007-00 |
NUT, SELF-LOCKING This part replaces 90185-22M11-00. Price: $23.95 |
| 17 |
90465-10098-00 |
CLAMP This part replaces 90465-11M10-00. Price: $2.70 |
| 18 |
90201-10060-00 |
WASHER, PLATE Price: $14.45 |
| 19 |
90119-10054-00 |
BOLT, WITH WASHER Price: $12.55 |
| 20 |
6BC-43818-00-00 |
PIN, LOWER SHOCK MOUNT Price: $117.10 |
| 21 |
90386-22M98-00 |
BUSH Price: $6.75 |
| 22 |
64E-43311-10-8D |
BRACKET, SWIVEL 1 Price: $886.55 |
| 23 |
90465-08M63-00 |
CLAMP Price: $11.40 |
| 24 |
93700-06002-00 |
NIPPLE, GREASE Price: $8.55 |
| 25 |
66K-82149-00-00 |
WIRE, LEAD 3 Price: $29.55 |
| 26 |
6G5-43144-00-00 |
HOOK, SPRING Price: $7.15 |
| 27 |
97E95-06512-00 |
BOLT, HEXAGON W/W Price: $2.05 |
| 28 |
6G5-43181-02-00 |
LEVER, TILT STOP 1 Price: $64.80 |
| 29 |
6G5-43185-02-00 |
LEVER, TILT STOP 2 Price: $64.80 |
| 30 |
90386-10M16-00 |
BUSH Price: $5.55 |
| 31 |
6G5-43148-00-00 |
COLLAR, DISTANCE Price: $9.45 |
| 32 |
90249-06M19-00 |
PIN Price: $9.10 |
| 33 |
90387-10M05-00 |
COLLAR Price: $6.15 |
| 34 |
91690-30020-00 |
PIN, SPRING Price: $3.55 |
| 35 |
90506-16003-00 |
SPRING, TENSION Price: $6.25 |
| 36 |
64E-43126-10-00 |
PIN, UPPER SHOCK MOUNT Price: $61.85 |
| 37 |
90386-22M98-00 |
BUSH Price: $6.75 |
| 38 |
93410-22M11-00 |
CIRCLIP Price: $6.60 |
| 39 |
95D95-06010-00 |
BOLT, FLANGE DEEP Price: $0.80 |
| 41 |
90201-13M01-00 |
WASHER, PLATE Price: $2.25 |
| 42 |
90201-12426-00 |
WASHER, PLATE Price: $2.25 |
| 43 |
95380-12600-00 |
NUT Price: $10.25 |
