| Ref | Part Number | Description |
|---|
| 2 |
505071781 |
Ski Bushing Price: $16.18 |
| 3 |
505071812 |
Retainer 17mm long Price: $6.09 |
| 5 |
505072133 |
Retainer 23mm Long Price: $6.89 |
| 6 |
860201044 |
Carbide Runner Kit (Square Runner) This part replaces 860200141. Price: $129.99 |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 8 |
250000703 |
Hex. Screw M10 X 130 This part replaces 230003044. Price: $10.99 |
| 9 |
506133300 |
Spacer Price: $23.99 |
| 10 |
732900049 |
Washer Price: $0.60 |
| 11 |
233201414 |
Hex. Flange Elastic Nut M10 Price: $1.59 |
| 12 |
505071779 |
Ski Stopper Price: $18.99 |
| 13 |
505073007 |
Clear, LH Ski Leg This part replaces 505072717. Price: $254.99 |
| 13 |
505073008 |
Clear, RH Ski Leg This part replaces 505072718. Price: $244.99 |
| 14 |
505072690 |
Leg Bushing Price: $12.49 |
| 17 |
505072664 |
Black, RH Lower Arm Price: $204.99 |
| 17 |
505072665 |
Black, LH Lower Arm Price: $204.99 |
| 18 |
505072208 |
Bushing Price: $3.28 |
| 19 |
505072214 |
Bushing Price: $18.89 |
| 20 |
505072634 |
Wear Plate Price: $6.39 |
| 21 |
250001024 |
Screw Hex. M10 X 70 This part replaces 250000291. Price: $2.19 |
| 23 |
505072374 |
Upper Arm Price: $154.99 |
| 25 |
505072250 |
Bushing Price: $3.28 |
| 26 |
505072143 |
Sleeve Price: $9.00 |
| 27 |
250001023 |
Screw Hex. M10 X 60 This part replaces 250000290. Price: $2.19 |
| 28 |
250001022 |
Screw Hex. M10 X 50 This part replaces 250000289. Price: $1.69 |
| 29 |
503189564 |
Washer Price: $0.76 |
| 30 |
505072392 |
Washer Price: $4.89 |
| 31 |
250100165 |
Hex. Flange Elastic Nut M10 This part replaces 250100088. Price: $0.87 |
| 32 |
505072448 |
O-Ring Price: $2.39 |
| 33 |
505072602 |
Stabilisator Price: $71.99 |
| 34 |
505072064 |
Bushing Price: $2.32 |
| 35 |
505072394 |
Stabilisator Lever Price: $18.99 |
| 36 |
207663046 |
Hex. Flange Screw M6 X 30 Price: $1.69 |
| 37 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 38 |
505072204 |
Sway Bar Double Joint Link Price: $21.99 |
| 39 |
207663046 |
Hex. Flange Screw M6 X 30 Price: $1.69 |
| 40 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 41 |
505072752 |
FRONT SHOCK - Call your local BRP dealership Price: $424.99 |
| 43 |
503189308 |
Piston Ring Price: $81.99 |
| 44 |
505070398 |
Air Valve Price: $21.99 |
| 45 |
505070399 |
Screw Price: $4.19 |
| 46 |
505070400 |
O-Ring Price: $4.69 |
| 48 |
505072741 |
Deep Black, Spring Price: $69.99 |
| 49 |
503194270 |
Spring Stopper This part replaces 503192029. Price: $19.99 |
| 51 |
505072753 |
Adjustment Knob Price: $2.29 |
| 52 |
250000644 |
Allen Screw M3 X 0.5 X 10 This part replaces 205031060. Price: $2.19 |
| 57 |
503189309 |
FREE PISTON - Call your local BRP dealership Price: $55.99 |
| 58 |
414888312 |
O-Ring Price: $17.49 |
| 59 |
207005544 |
Hex. Screw M10 X 55 Price: $2.29 |
| 60 |
207006544 |
Hex. Screw M10 X 1.5 X 65 Price: $2.99 |
| 61 |
503189564 |
Washer Price: $0.76 |
| 62 |
233201414 |
Hex. Flange Elastic Nut M10 Price: $1.59 |
| 63 |
505073636 |
Ball Joint This part replaces 505072682. Price: $51.99 |
| 64 |
503189276 |
Washer Price: $3.39 |
| 65 |
250100089 |
Hex. Elastic Hex. Nut M12 Price: $0.46 |
| 66 |
234021410 |
Flat Washer 12 mm Price: $0.74 |
| 67 |
250100089 |
Hex. Elastic Hex. Nut M12 Price: $0.46 |
| 69 |
505072257 |
Upper Ball Joint Price: $17.58 |
| 70 |
293370035 |
Circlip Price: $2.69 |

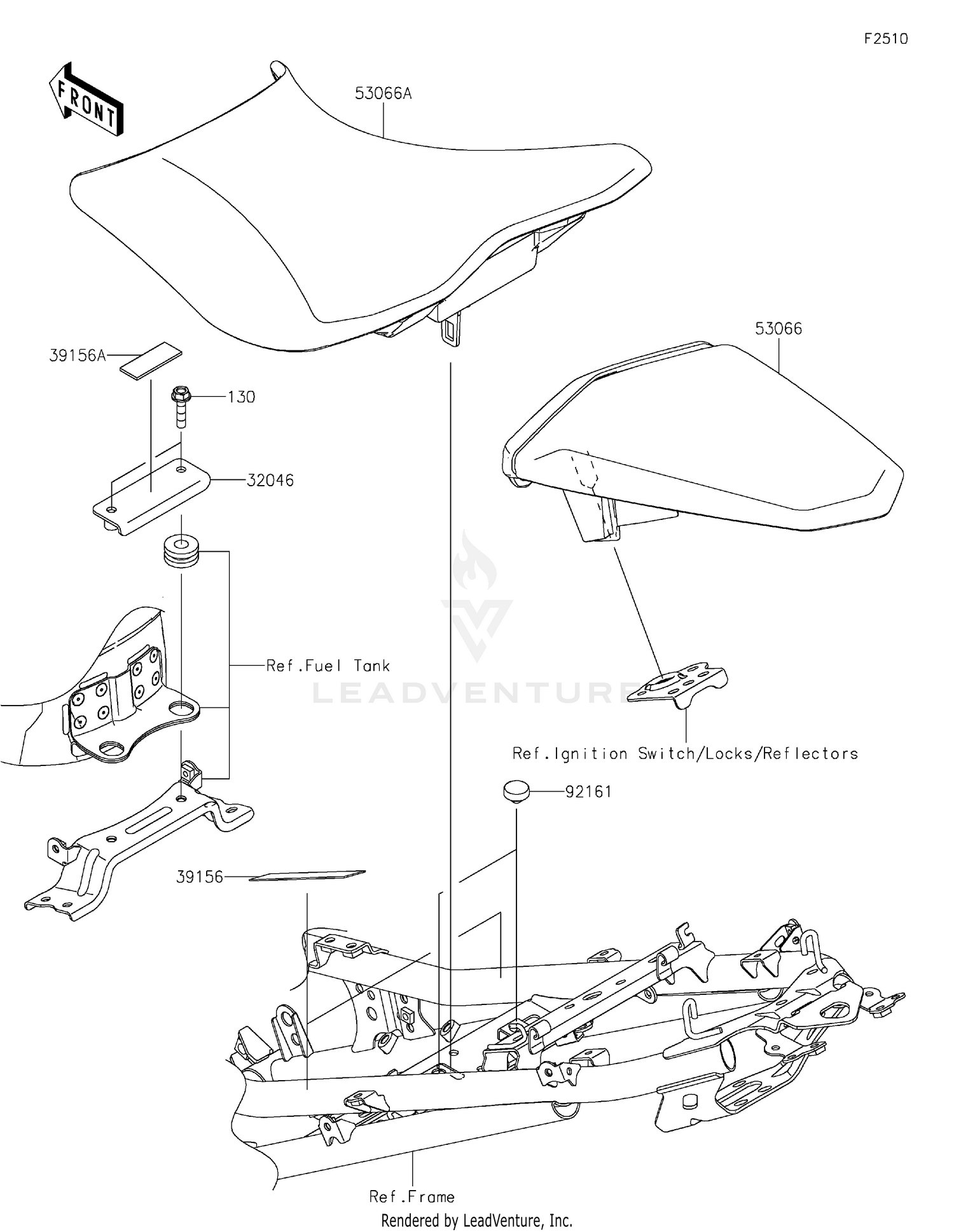

| 32046 |
32046-0423 |
BRACKET-SEAT Price: $12.32 |
| 39156 |
39156-2383 |
PAD,35X75X1 Price: $3.89 |
| 39156A |
39156-2384 |
PAD,17X45X2 Price: $2.39 |
| 53066 |
53066-0613-12Y |
SEAT-ASSY,RR,BLACK+BLK Price: $223.14 |
| 53066A |
53066-0619-MA |
SEAT-ASSY,FR,BLACK Price: $278.55 |
| 92161 |
92161-1473 |
DAMPER,9.5X18X6 Price: $1.63 |
