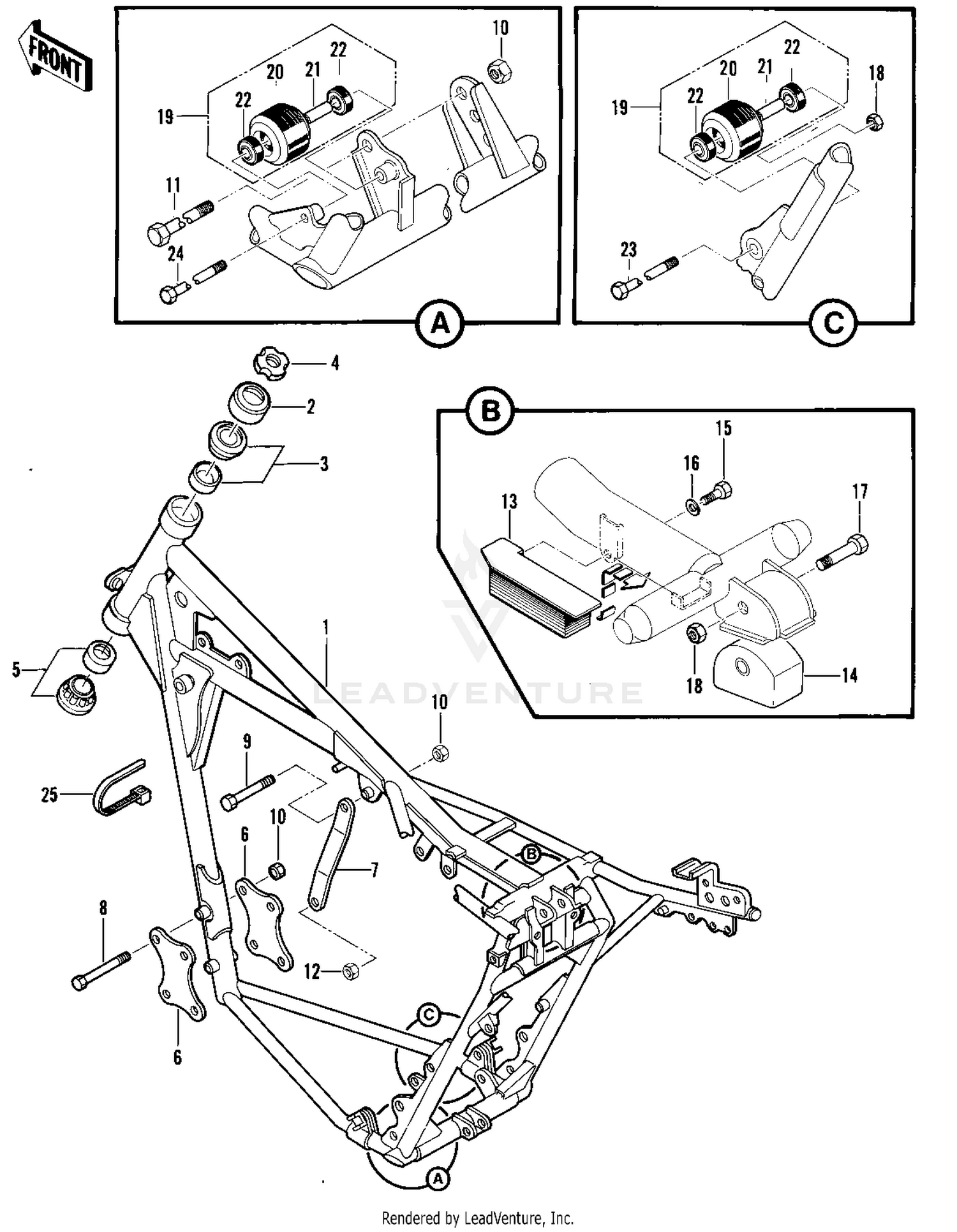

| Ref | Part Number | Description |
|---|
| 1 |
32002-1231 |
FRAME Price: $774.42 |
| 2 |
46098-015 |
CAP,STEERING STEM Price: $6.54 |
| 4 |
92015-1546 |
NUT,25MM,T=12 Price: $20.96 |
| 6 |
32029-1116 |
BRACKET,ENGINE Price: $15.42 |
| 7 |
32029-4010 |
BRACKET,ENGINE Price: $20.71 |
| 8 |
92001-1033 |
BOLT HEX HEAD,10X66.5 Price: $8.22 |
| 9 |
92001-1412 |
BOLT Price: $8.28 |
| 10 |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 11 |
92001-4001 |
BOLT,HEX HEAD,10X127 Price: $3.62 |
| 12 |
92015-1415 |
NUT,FLANGED,10MM Price: $4.69 |
| 13 |
92075-1249 |
DAMPER,REAR SHOCK Price: $16.34 |
| 14 |
92075-4025 |
DAMPER UNITRAK Price: $51.34 |
| 15 |
115G0812 |
BOLT-SMALL-UPSET,8X12 This part replaces 114G0812. Price: $4.16 |
| 16 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 17 |
115BA0840 |
BOLT-SMALL-UPSET This part replaces 115G0840. Price: $6.45 |
| 18 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 19 |
92122-1013 |
ROLLER,ASSY Price: $108.77 |
| 20 |
92122-1014 |
ROLLER Price: $19.32 |
| 21 |
92027-1081 |
COLLAR Price: $9.59 |
| 22 |
92045-1009 |
BEARING,BALL Price: $35.22 |
| 23 |
115G0855 |
BOLT-SMALL-UPSET,8X55 Price: $6.13 |
| 24 |
114B0870 |
BOLT HEX HEAD 8X70 Price: $4.82 |
