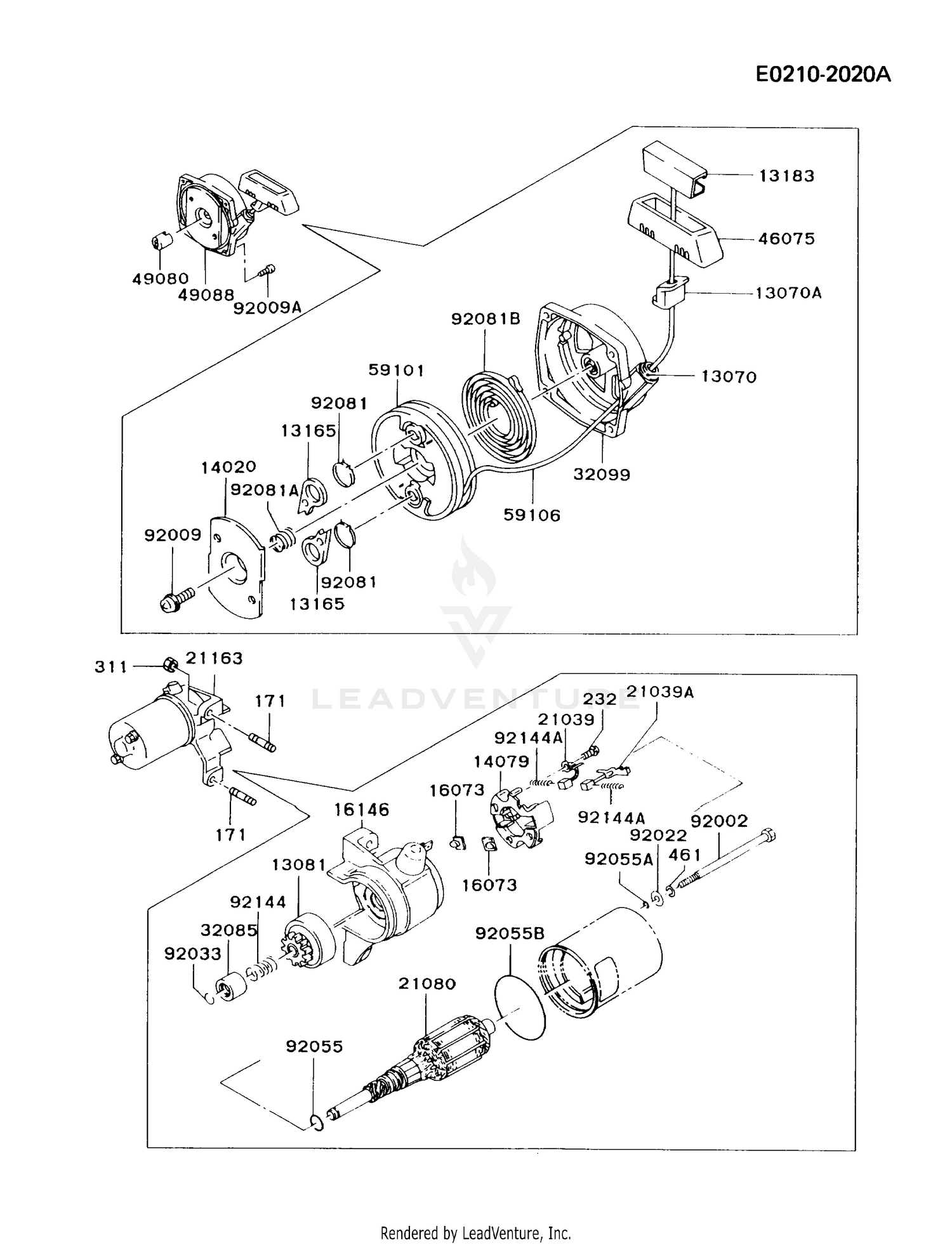

STARTER
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 171 | 171BA0616 | BOLT-STUD This part replaces 171G0616. Price: $0.66 |
| 232 | 232AA0412 | SCREW-PAN-WS+- This part replaces 232B0412. Price: $0.18 |
| 311 | 311AA0600 | NUT-HEX,6MM This part replaces 311B0600. Price: $0.96 |
| 13070 | 13070-2011 | GUIDE Price: $4.29 |
| 13070A | 13070-2062 | GUIDE Price: $3.86 |
| 13081 | 13081-2106 | CLUTCH ASSY Price: $76.59 |
| 13165 | 13165-2063 | PAWL Price: $2.44 |
| 13183 | 13183-2007 | PLATE Price: $2.80 |
| 14020 | 14020-2064 | RETAINER Price: $6.39 |
| 14079 | 13091-2071 | HOLDER, BRUS Price: $6.60 |
| 16073 | 16073-2111 | INSULATOR Price: $1.10 |
| 16146 | 16146-2120 | COVER ASSY Price: $97.79 |
| 21039 | 21039-2060 | BRUSH Price: $6.60 |
| 21039A | 21039-2061 | BRUSH Price: $6.60 |
| 21080 | 21080-2057 | ARMATURE Price: $148.09 |
| 21163 | 21163-2075 | STARTER-ELECTRIC Price: $331.05 |
| 32085 | 32085-2068 | STOPPER, PIN Price: $8.73 |
| 32099 | 32099-2086 | CASE Price: $33.81 |
| 46075 | 46075-2062 | GRIP,RECOIL STARTER Price: $5.80 |
| 49080 | 49080-2110 | PULLEY-STARTING Price: $9.71 |
| 49088 | 49088-2299 | STARTER-RECOIL Price: $50.57 |
| 59101 | 59101-2068 | REEL Price: $16.04 |
| 59106 | 59106-2078 | ROPE,3.8X1100 Price: $5.35 |
| 92002 | 92150-2286 | BOLT This part replaces 92002-2315. Price: $3.89 |
| 92009 | 92009-2031 | SCREW Price: $2.29 |
| 92009A | 92009-2204 | SCREW Price: $0.19 |
| 92022 | 92022-2232 | WASHER Price: $0.67 |
| 92033 | 92033-2085 | RING, SNAP Price: $1.90 |
| 92055 | 92055-2080 | O-RING Price: $2.91 |
| 92055A | 92055-2081 | O-RING Price: $2.91 |
| 92055B | 92055-2082 | O-RING Price: $5.93 |
| 92081 | 92081-2319 | SPRING Price: $1.81 |
| 92081A | 92081-2320 | SPRING Price: $1.81 |
| 92081B | 92081-2321 | SPRING Price: $17.54 |
| 92144 | 92144-2034 | SPRING Price: $2.60 |
| 92144A | 92144-2035 | SPRING Price: $2.30 |
