| Ref | Part Number | Description |
|---|
| 1 |
506152710 |
BLACK HANDLE BAR - Call your local BRP dealership This part replaces 506152362. Price: $67.99 |
| 2 |
506152486 |
Grip This part replaces 506152226. Price: $16.99 |
| 3 |
506152484 |
Heating Element 20W Price: Call Us |
| 3a |
515175232 |
Male Terminal Price: $1.59 |
| 5 |
219704427 |
LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership Price: $40.99 |
| 6 |
506152360 |
Insulant Price: $6.39 |
| 8 |
860200819 |
HANDLEBAR EXTENSION KIT (115MM) - Call your local BRP dealership This part replaces 860200268. Price: $69.99 |
| 15 |
506152751 |
Steering Support This part replaces 506152395. Price: $14.49 |
| 16 |
XXX |
Not Available As Spare Parts Price: Call Us |
| 17 |
250000352 |
Hex. Flange Screw M8 X 40 Price: $3.49 |
| 19 |
506152249 |
STEERING PAD - Call your local BRP dealership Price: $57.99 |
| 31 |
506152964 |
Steering Column This part replaces 506152469. Price: $204.99 |
| 32 |
506152508 |
Upper Half-Housing Price: $9.23 |
| 33 |
506152217 |
Lower Half-Housing Price: $7.62 |
| 34 |
506152509 |
Upper Anti-Vibration Gasket Price: $4.89 |
| 35 |
506152518 |
Lower Vibration Ring This part replaces 506152218. Price: $4.89 |
| 37 |
506152297 |
Housing Bushing Price: $13.49 |
| 41 |
207667056 |
Hex. Flange Screw M6 X 70 This part replaces 207667086. Price: $4.49 |
| 42 |
207667044 |
Hex. Flange Screw M6 X 70 Price: $0.98 |
| 47 |
233261416 |
Elastic Flange Nut M6 X 1.0 Price: $2.19 |
| 48 |
506152163 |
Plate Price: $13.49 |
| 49 |
207004034 |
Hex. Screw M10 X 1.5 X 40 Price: $2.19 |
| 50 |
232500416 |
Elastic Stop Nut M10 Price: $1.99 |
| 51 |
Not |
Available As Spare Part - Tie-Rod Ass'y |
| 52 |
506152496 |
Tie-Rod Ass'y Price: $62.49 |
| 53 |
506152081 |
LH Thread Ball Joint Price: $41.49 |
| 54 |
250100016 |
LH Threaded Hex. Jam Nut M10 Price: $0.76 |
| 55 |
506152019 |
RH Threaded Ball Joint Price: $41.49 |
| 56 |
732610010 |
RH Threaded Hex. Jam Nut M10 Price: $0.76 |
| 58 |
506152194 |
Washer Price: $4.69 |
| 59 |
207006044 |
HEX. SCREW M10 X 60 - Call your local BRP dealership Price: $2.09 |
| 60 |
232500416 |
Elastic Stop Nut M10 Price: $1.99 |

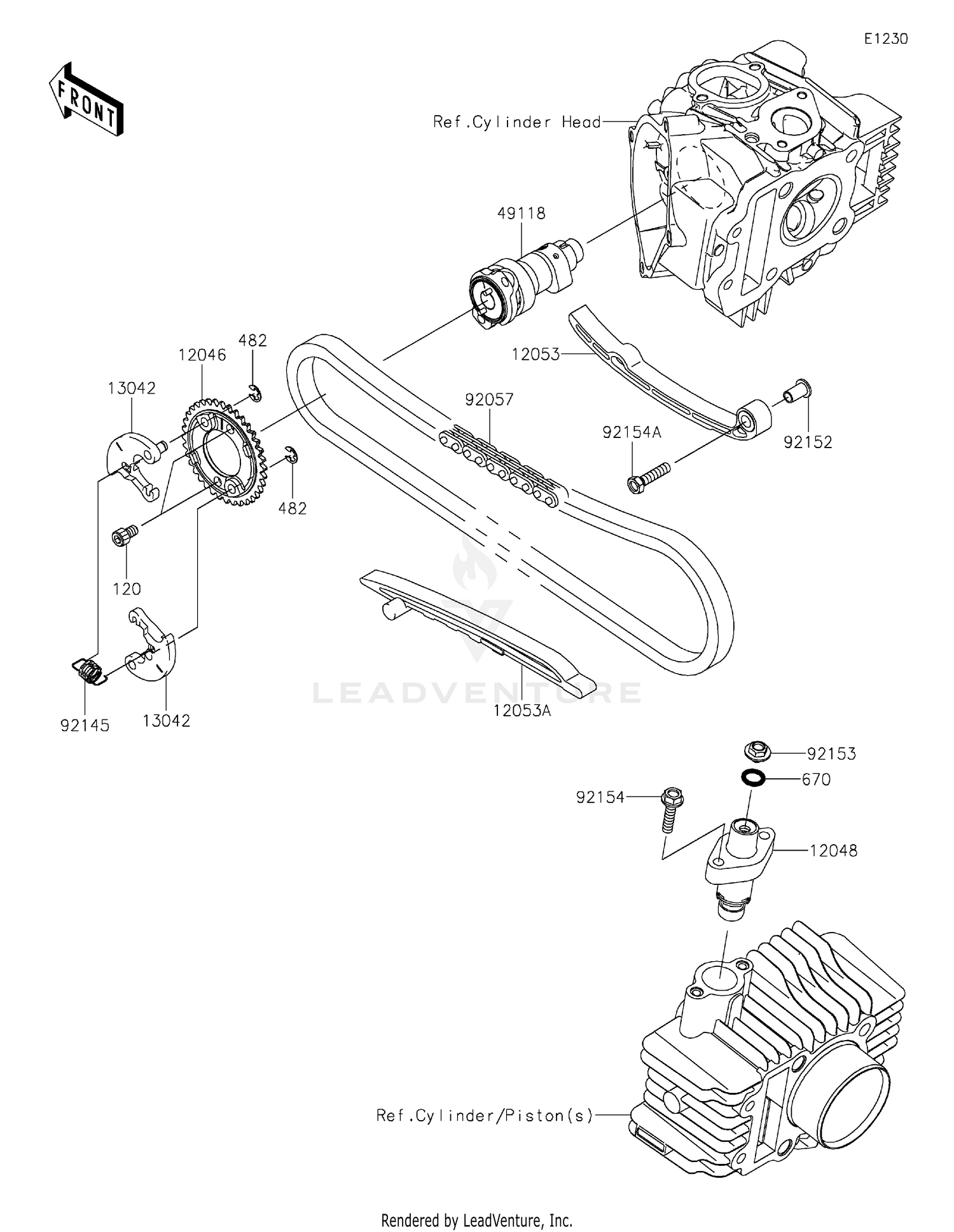

| 120 |
120CA0610 |
BOLT-SOCKET,6X10 Price: $1.71 |
| 482 |
482J5000 |
CIRCLIP-TYPE-E,5MM Price: $3.41 |
| 670 |
670D2010 |
O RING,10MM Price: $1.94 |
| 12046 |
12046-0596 |
SPROCKET,36T This part replaces 12046-0591. Price: $75.13 |
| 12048 |
12048-0097 |
TENSIONER-ASSY Price: $55.56 |
| 12053 |
12053-0185 |
GUIDE-CHAIN Price: $44.67 |
| 12053A |
12053-1461 |
GUIDE-CHAIN Price: $3.93 |
| 13042 |
13042-1141 |
WEIGHT,DECOMP Price: $44.00 |
| 49118 |
49118-0863 |
CAMSHAFT-COMP Price: $232.77 |
| 92057 |
92057-0610 |
CHAIN,CAM,94L Price: $47.96 |
| 92145 |
92145-0132 |
SPRING Price: $2.71 |
| 92152 |
92152-1369 |
COLLAR,CHAIN GUIDE Price: $2.67 |
| 92153 |
92153-1763 |
BOLT,FLANGED,6X6 Price: $2.61 |
| 92154 |
92154-1196 |
BOLT,FLANGED,6X25 Price: $0.85 |
