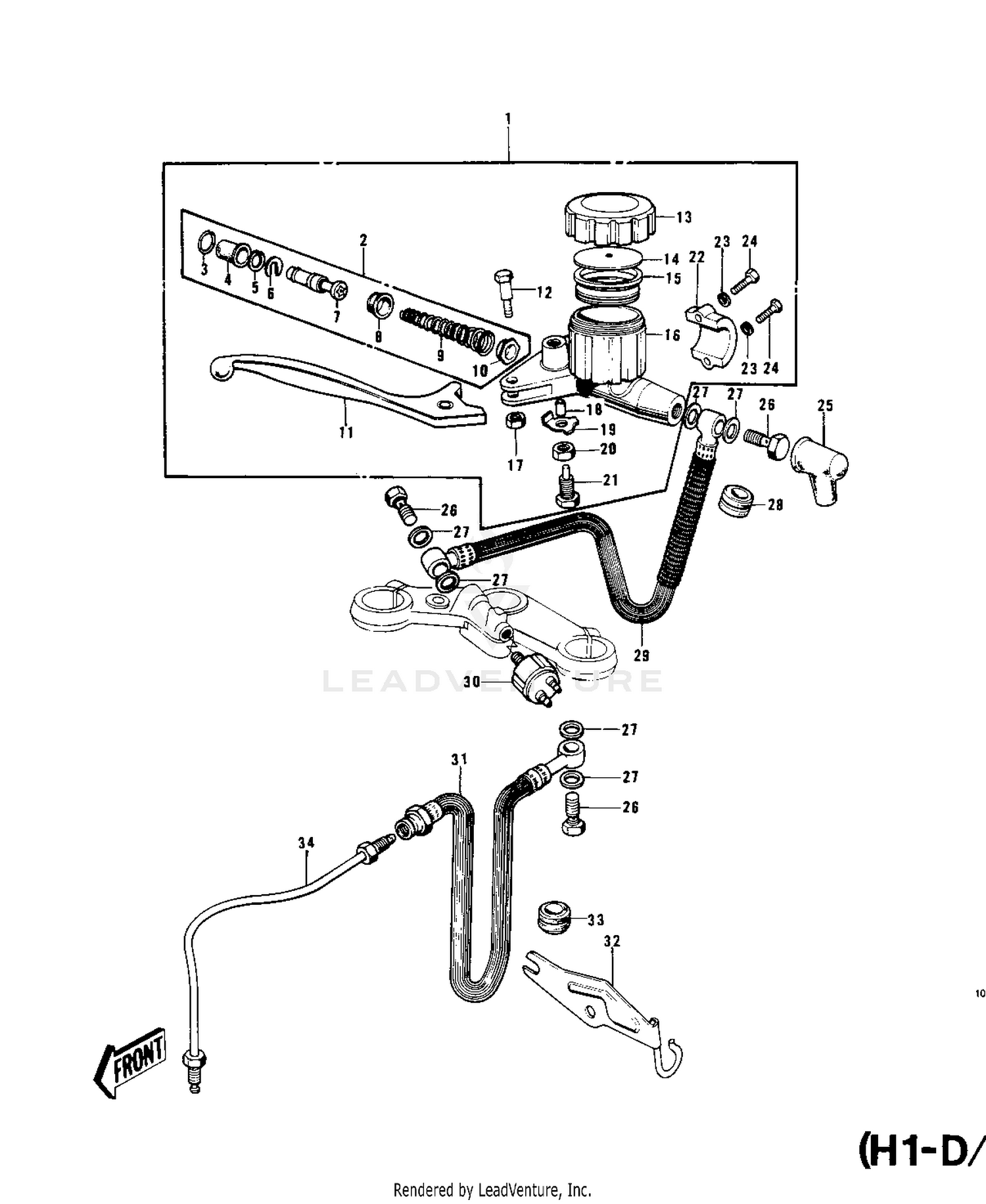

| Ref | Part Number | Description |
|---|
| 1 |
43015-032 |
CYLINDER ASSY,MASTER Price: $179.78 |
| 2 |
43073-001 |
REPAIR SET-MASTER CYL Price: $102.17 |
| 3 |
43025-001 |
STOPPER-BOOTS Price: $5.27 |
| 4 |
43024-001 |
BOOTS Price: $7.20 |
| 5 |
481J1800 |
CIRCLIP-TYPE-C,18MM Price: $4.31 |
| 6 |
43022-001 |
STOPPER-PISTON Price: $4.05 |
| 7 |
43072-001 |
PISTON ASSY Price: $25.05 |
| 8 |
43019-001 |
CUP-PRIMARY Price: $16.61 |
| 9 |
43018-001 |
SPRING ASSY-RETURN Price: $24.74 |
| 10 |
43017-001 |
VALVE ASSY-CHECK Price: $14.80 |
| 11 |
43029-003 |
LEVER,FRONT BRAKE Price: $105.99 |
| 12 |
43033-001 |
BOLT-LEVER FITTING Price: $8.39 |
| 13 |
43026-1054 |
CAP-BRAKE This part replaces 43026-003. Price: $34.87 |
| 14 |
43027-001 |
PLATE-MASTER CYLINDER Price: $10.39 |
| 15 |
43028-001 |
DIAPHRAGM Price: $43.88 |
| 16 |
43016-002 |
BODY, MASTER CYLINDER Price: $273.23 |
| 17 |
312N0600 |
NUT,6MM Price: $5.76 |
| 18 |
43074-001 |
TUBE Price: $4.23 |
| 19 |
43031-001 |
WASHER-LOCK,8MM Price: $8.41 |
| 20 |
314N0800 |
NUT,8MM Price: $0.66 |
| 21 |
43030-002 |
BOLT-LEVER ADJUST Price: $6.00 |
| 22 |
43034-001 |
HOLDER-MASTER CYL Price: $39.96 |
| 23 |
411AA0600 |
WASHER-PLAIN,6MM This part replaces 411B0600. Price: $2.92 |
| 24 |
112N0625 |
BOLT-UPSET This part replaces 110N0625. Price: $5.86 |
| 25 |
49006-1041 |
BOOT,DUST Price: $11.49 |
| 26 |
92153-0627 |
BOLT,OIL,L=23 This part replaces 92002-1888. Price: $5.48 |
| 27 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 This part replaces 43067-001. Price: $2.15 |
| 28 |
43064-005 |
DAMPER RUBBER Price: $3.60 |
| 29 |
43059-009 |
HOSE,CYLINDER BRAKE Price: $158.50 |
| 30 |
43065-001 |
SWITCH-FRONT BRAKE Price: $60.25 |
| 31 |
43095-1386 |
HOSE-BRAKE,CLUTCH,L=3 This part replaces 43059-1262. Price: $91.28 |
| 32 |
43063-001 |
BRACKET-BRAKE HOSE Price: $67.11 |
| 33 |
43064-001 |
GROMMET-HOSE BRACKET Price: $3.83 |
