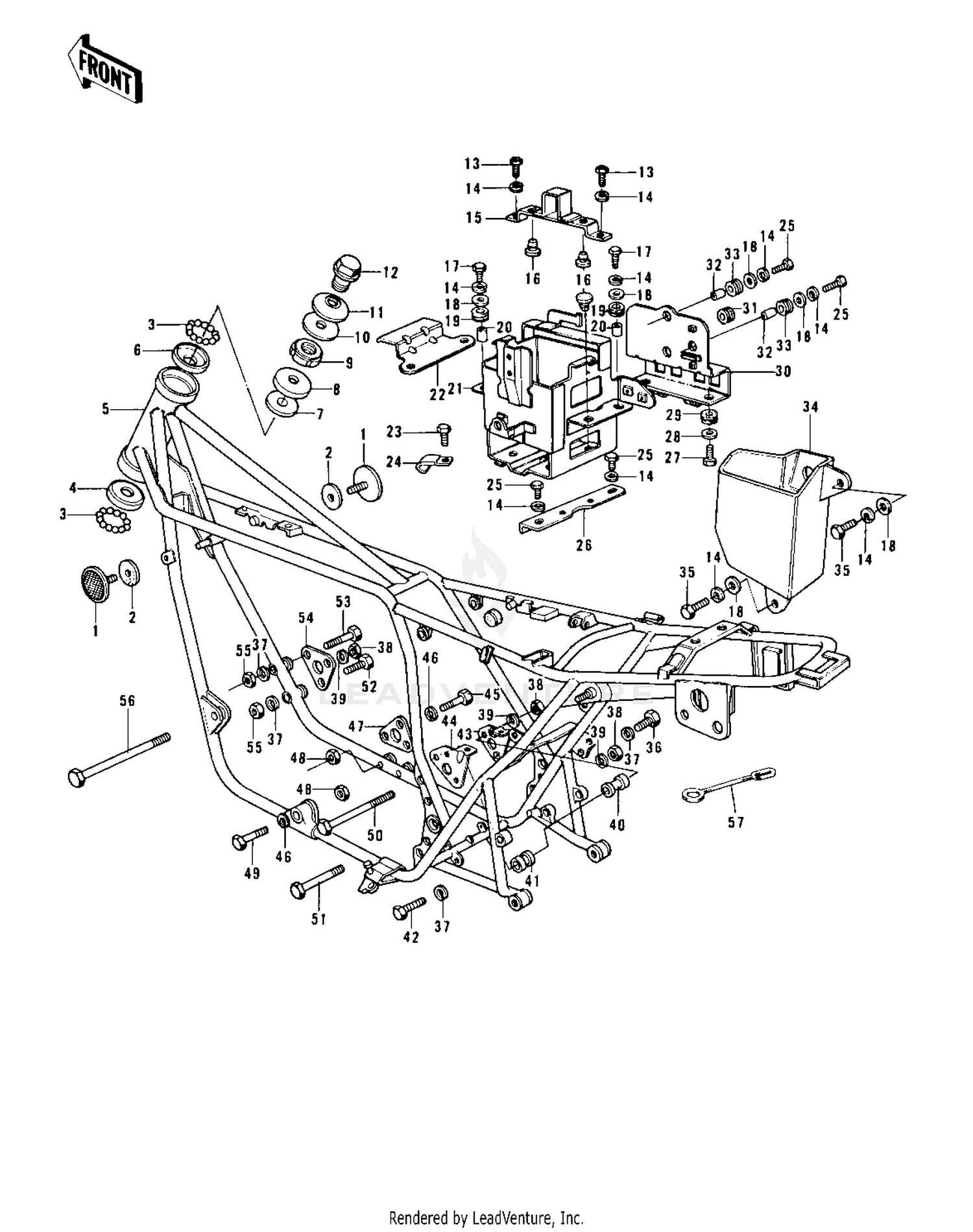

| Ref | Part Number | Description |
|---|
| 1 |
28012-016 |
REFLECTOR-REFLEX,FR Price: $23.25 |
| 2 |
92094-011 |
DAMPER RUBBER,REFLECT Price: $4.60 |
| 3 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 4 |
92048-0037 |
RACE,STEERING STEM BEARING This part replaces 92048-008. Price: $16.02 |
| 5 |
32002-152 |
FRAME Price: $1,105.10 |
| 6 |
92048-0036 |
RACE,STEERING STEM BEARING This part replaces 92048-006. Price: $11.61 |
| 7 |
92048-0032 |
RACE,STEERING STEM BEARING This part replaces 92047-011. Price: $14.60 |
| 8 |
46098-016 |
CAP,STEERING STEM Price: $6.51 |
| 9 |
92090-007 |
NUT,30MM Price: $11.71 |
| 10 |
46100-003 |
WASHER,WAVE Price: $11.39 |
| 11 |
92200-1273 |
WASHER,16X41X4.5 This part replaces 92022-230. Price: $11.93 |
| 12 |
92007-031 |
BOLT,STEERG STEM HEAD Price: $29.84 |
| 13 |
220AA0616 |
SCREW-PAN-CROS,6X16 This part replaces 220B0616. Price: $3.04 |
| 14 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 15 |
32100-020 |
BAND,BATTERY Price: $14.25 |
| 16 |
92075-078 |
DAMPER,RUBBER Price: $4.39 |
| 17 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 18 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 19 |
92075-076 |
DAMPER RUBBER Price: $4.78 |
| 20 |
92027-129 |
COLLAR,6.8X10X8.5 Price: $5.00 |
| 21 |
32097-039 |
CASE,BATTERY Price: $47.36 |
| 22 |
32105-006 |
STAY,AIR CLEANER Price: $17.65 |
| 23 |
112BA0610 |
BOLT-UPSET,6X10 This part replaces 112G0610. Price: $0.58 |
| 24 |
21126-008 |
CLAMP,WIRING HARNESS Price: $4.73 |
| 25 |
112BA0616 |
BOLT-UPSET,6X16 This part replaces 112G0616. Price: $1.17 |
| 26 |
32113-003 |
PLATE,BATTERY CASE Price: $12.89 |
| 27 |
92001-115 |
BOLT,HEAX HEAD,6X14 Price: $9.81 |
| 28 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 29 |
92075-161 |
DAMPER Price: $4.69 |
| 30 |
32129-006 |
BRACKET,BASE Price: $19.96 |
| 31 |
92075-051 |
DAMPER Price: $3.92 |
| 32 |
92027-165 |
COLLAR Price: $5.96 |
| 33 |
92075-149 |
DAMPER RUBBER Price: $11.03 |
| 34 |
32098-024 |
CASE,TOOL Price: $14.08 |
| 35 |
112AA0614 |
BOLT-UPSET This part replaces 112B0614. Price: $0.49 |
| 36 |
92002-1838 |
BOLT,FLANGED,8X40 This part replaces 92001-1578. Price: $8.19 |
| 37 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 38 |
92015-1429 |
NUT,LOCK,10MM Price: $6.88 |
| 39 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 40 |
92027-160 |
COLLAR,ENG MOUNTING Price: $13.33 |
| 41 |
92027-159 |
COLLAR,ENG MOUNTING Price: $29.02 |
| 42 |
92001-1577 |
BOLT,FLANGED,8X35 Price: $5.00 |
| 43 |
32030-056 |
PLATE,ENGINE RR,R.H Price: $11.48 |
| 44 |
32030-066 |
PLATE,REAR ENGINE,L.H Price: $15.67 |
| 45 |
92001-1265 |
BOLT,HEX HEAD,12X70 Price: $9.81 |
| 46 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 47 |
32030-026 |
PLATE,ENG MOUNT LOWER Price: $18.71 |
| 48 |
92016-045 |
NUT,12MM Price: $25.59 |
| 49 |
92001-1262 |
BOLT,HEX HEAD,12X55 Price: $11.66 |
| 50 |
92091-023 |
BOLT,ENGINE MOUNTING Price: $24.58 |
| 51 |
92003-099 |
BOLT,ENGINE MOUNTING Price: $34.88 |
| 52 |
110G0859 |
BOLT,HEX HEAD,8X59 Price: $1.61 |
| 53 |
92001-1397 |
BOLT-8X63 Price: $5.43 |
| 54 |
32030-025 |
PLATE,ENG MOUNT FRONT Price: $21.66 |
| 55 |
317AA0800 |
NUT-HEX-SMALL,8MM This part replaces 311B0800. Price: $0.68 |
| 56 |
92091-022 |
BOLT,ENGINE MOUNTING Price: $36.07 |
