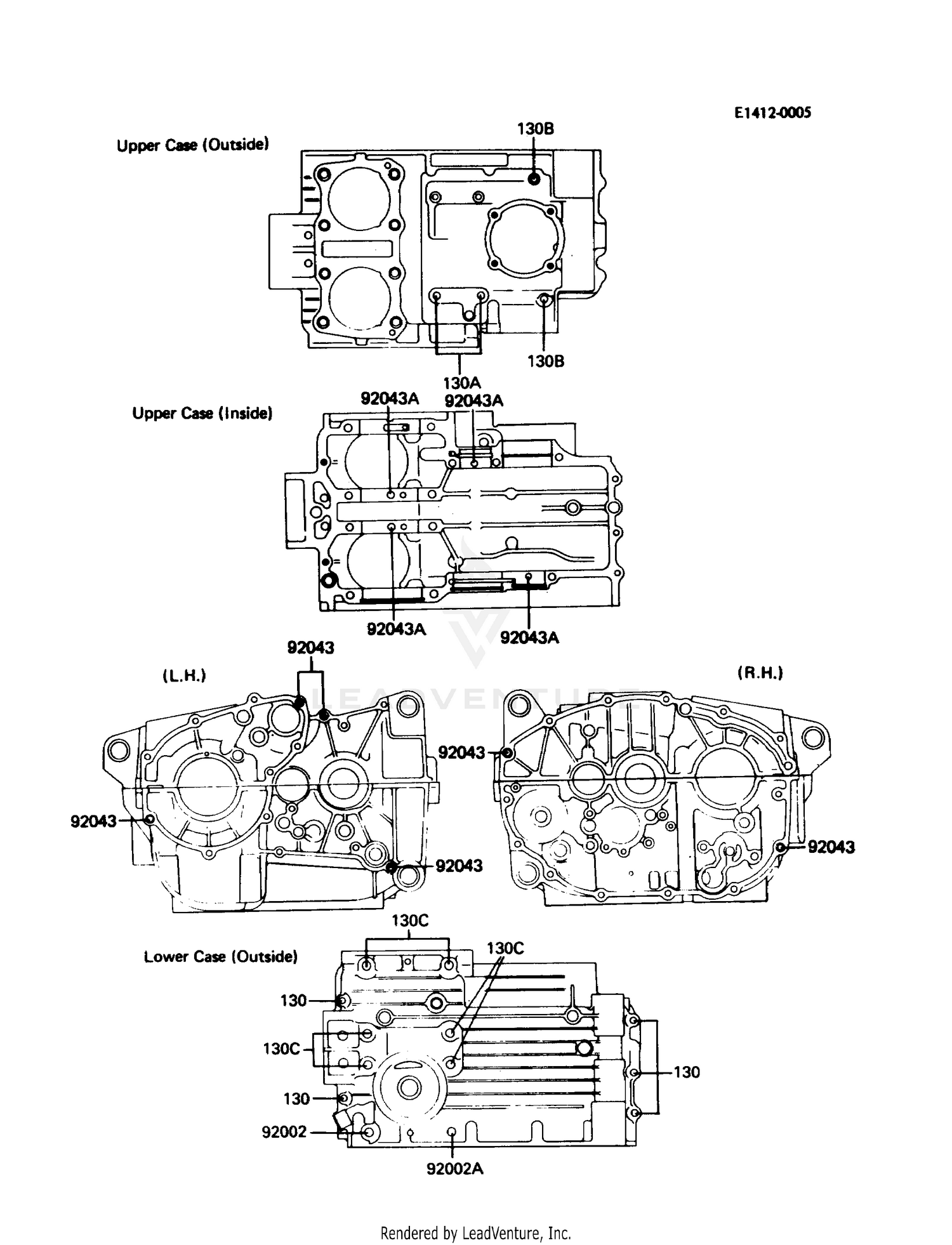

CRANKCASE BOLT PATTERN
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 130BD0635 | BOLT-FLANGED This part replaces 130Y0635. Price: $4.65 |
| 130A | 130BD0655 | BOLT-FLANGED This part replaces 130Y0655. Price: $4.83 |
| 130B | 130BD0690 | BOLT-FLANGED This part replaces 130Y0690. Price: $6.28 |
| 92002 | 92002-1341 | BOLT,8X115 Price: $9.16 |
| 92002A | 92002-1342 | BOLT,8X140 Price: $10.37 |
| 92043 | 92042-007 | PIN,DOWEL,6.3X8X14 Price: $5.70 |
| 92043A | 92043-1690 | PIN,6X16 This part replaces 92042-016. Price: $5.00 |
