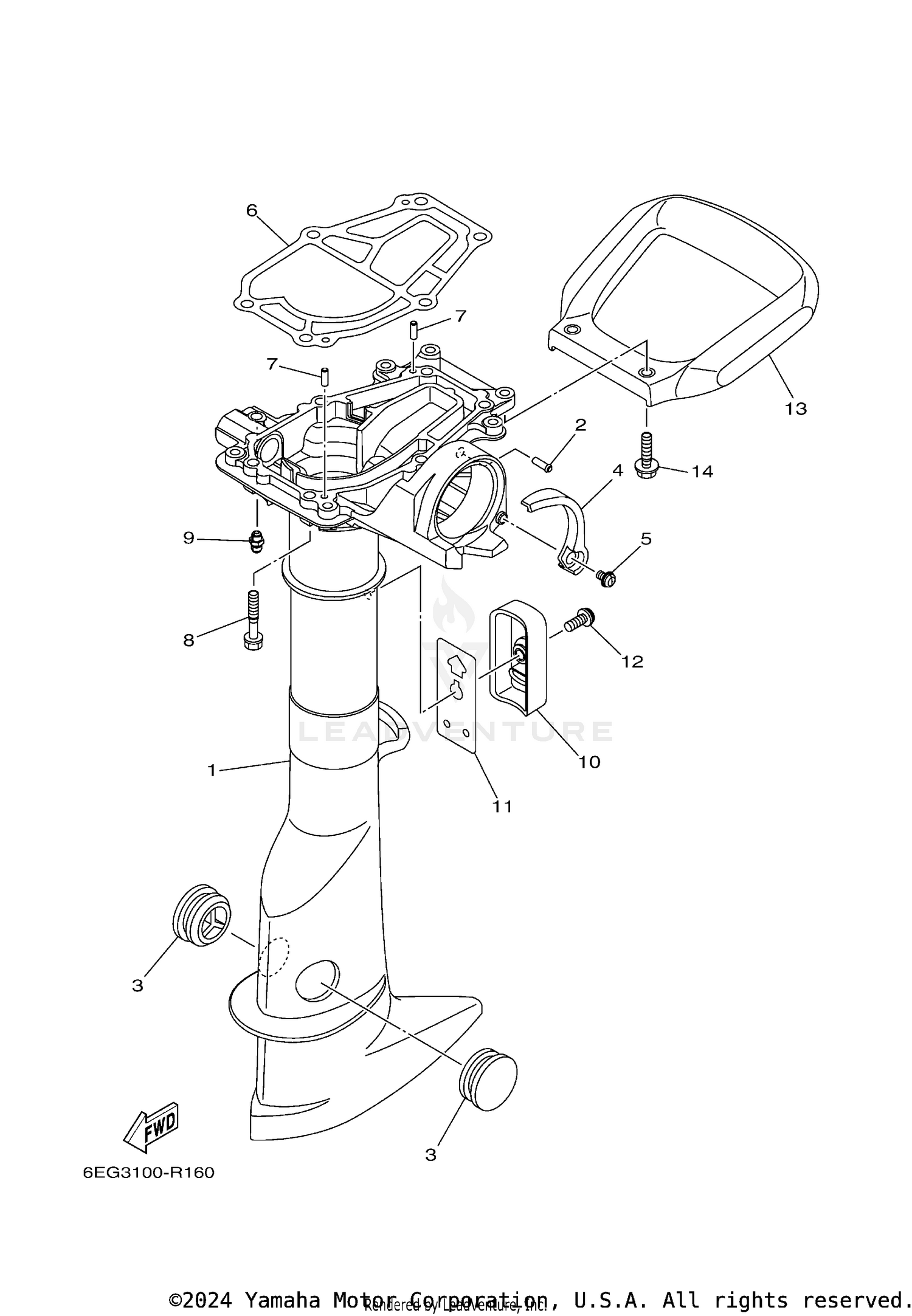

| Ref | Part Number | Description |
|---|
| 1 |
6EG-G5111-00-8D |
CASING, UPPER Price: $342.40 |
| 2 |
6EE-F4377-00-00 |
PIPE, JOINT 2 Price: $2.30 |
| 3 |
647-45151-02-00 |
COVER, UPPER CASING Price: $6.60 |
| 4 |
6EG-G5152-00-00 |
COVER, UPPER CASING 2 Price: $11.50 |
| 5 |
90159-05M12-00 |
SCREW, WITH WASHER Price: $3.20 |
| 7 |
93604-10M03-00 |
PIN, DOWEL This part replaces 93604-12M07-00. Price: $5.20 |
| 8 |
97E75-06535-00 |
BOLT, HEXAGON W/W Price: $4.40 |
| 9 |
93700-06M03-00 |
NIPPLE, GREASE Price: $8.25 |
| 10 |
6EG-45151-00-00 |
COVER, UPPER CASING This part replaces 6EG-G5151-00-00. Price: $22.30 |
| 12 |
90159-06M11-00 |
SCREW, WITH WASHER Price: $3.20 |
| 13 |
6EG-42731-00-00 |
CARRYING HANDLE This part replaces 6EG-G2731-00-00. Price: $149.20 |
