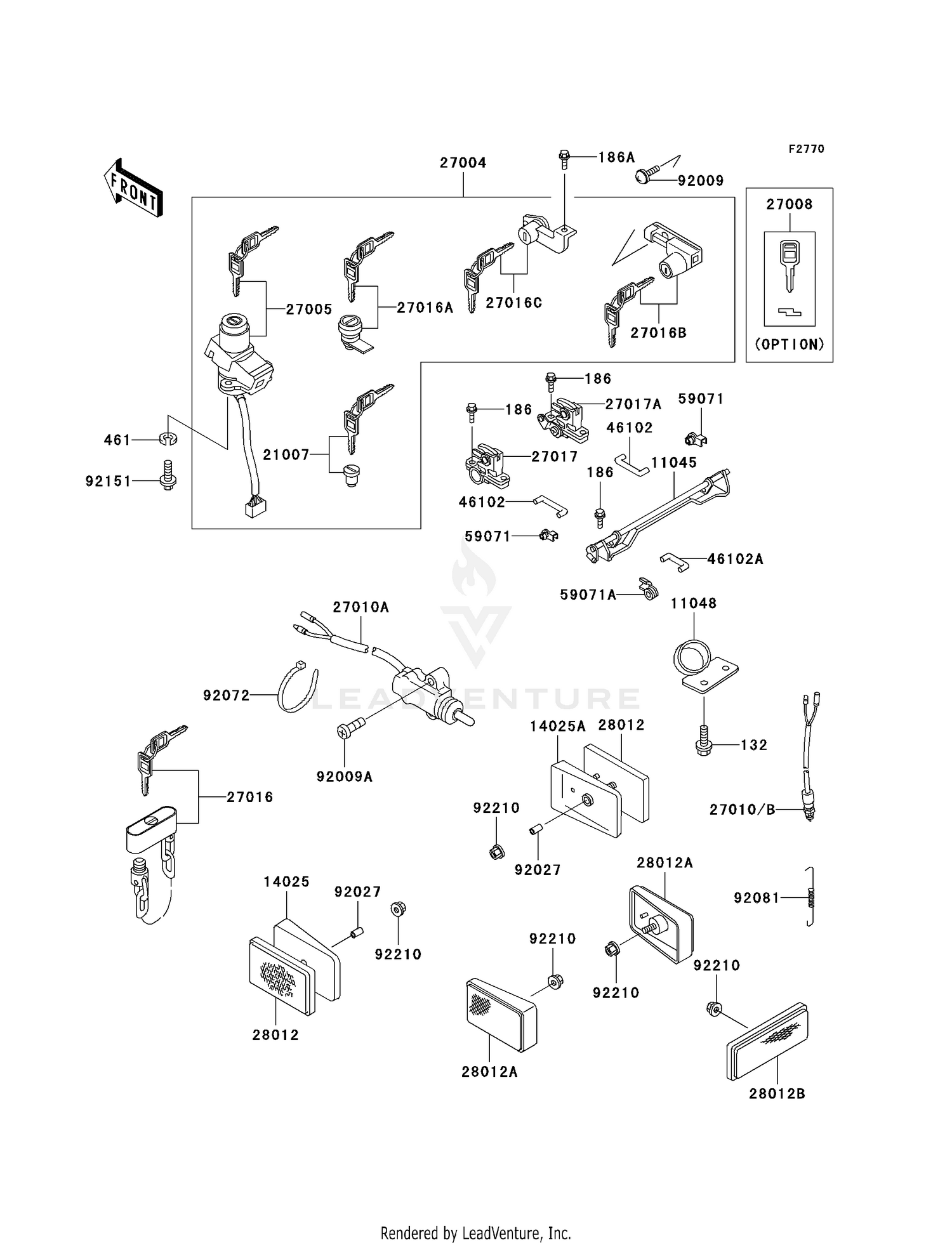

| Ref | Part Number | Description |
|---|
| 132 |
132BB0612 |
BOLT-FLANGED-SMALL,6X12 This part replaces 132J0612. Price: $2.06 |
| 186 |
186AB0614 |
BOLT-UPSET-WP This part replaces 186C0614. Price: $4.62 |
| 186A |
186AB0616 |
BOLT-UPSET-WP This part replaces 186C0616. Price: $4.41 |
| 461 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461L0600. Price: $0.71 |
| 11045 |
11045-1544 |
BRACKET,SEAT LOCK Price: $36.23 |
| 11048 |
11048-1451 |
BRACKET,IGNITION GUAR Price: $38.08 |
| 14025 |
14025-1886 |
COVER,REFLECTOR,FR Price: $15.74 |
| 14025A |
14025-1887 |
COVER,REFLECTOR,FR Price: $15.74 |
| 21007 |
21007-5037 |
ROTOR,LOCK,TANK CAP Price: $92.36 |
| 27004 |
27004-5474 |
SWITCH-ASSY Price: $492.33 |
| 27005 |
27005-5101 |
SWITCH-ASSY-IGNITION Price: $189.31 |
| 27010A |
27010-1220 |
SWITCH,SIDE STAND Price: $72.14 |
| 27010B |
27010-1474 |
SWITCH,REAR BRAKE Price: $35.68 |
| 27016 |
27016-1051 |
LOCK-ASSY,WHEEL Price: $131.28 |
| 27016A |
27016-5204 |
LOCK-ASSY,TOOL BOX Price: $81.78 |
| 27016B |
27016-5211 |
LOCK-ASSY,HELMET Price: $81.76 |
| 27016C |
27016-5221 |
LOCK-ASSY,SEAT Price: $80.47 |
| 27017 |
27017-1112 |
LOCK,SEAT,LH Price: $85.51 |
| 27017A |
27017-1113 |
LOCK,SEAT,RH Price: $85.51 |
| 28012 |
28012-1052 |
REFLECTOR-REFLEX,FR Price: $26.22 |
| 28012A |
28012-1056 |
REFLECTOR-REFLEX,RR Price: $26.23 |
| 28012B |
28012-1088 |
REFLECTOR-REFLEX Price: $22.46 |
| 46102 |
46102-1187 |
ROD,SEAT LOCK,FR Price: $9.21 |
| 46102A |
46102-1188 |
ROD,SEAT LOCK,RR Price: $4.39 |
| 59071 |
59071-1103 |
JOINT Price: $8.68 |
| 59071A |
59071-1125 |
JOINT Price: $9.13 |
| 92009 |
92009-1401 |
SCREW,5X12 Price: $4.39 |
| 92009A |
92009-1459 |
SCREW,5X20 Price: $4.38 |
| 92027 |
92027-1789 |
COLLAR,5.6X8X14.5 Price: $5.00 |
| 92072 |
92072-1195 |
BAND,L=202 Price: $1.56 |
| 92081 |
92081-1990 |
SPRING,BRAKE LAMP SWI Price: $6.89 |
| 92151 |
92153-0967 |
BOLT,TORX,6X16 This part replaces 92151-1911. Price: $2.61 |
