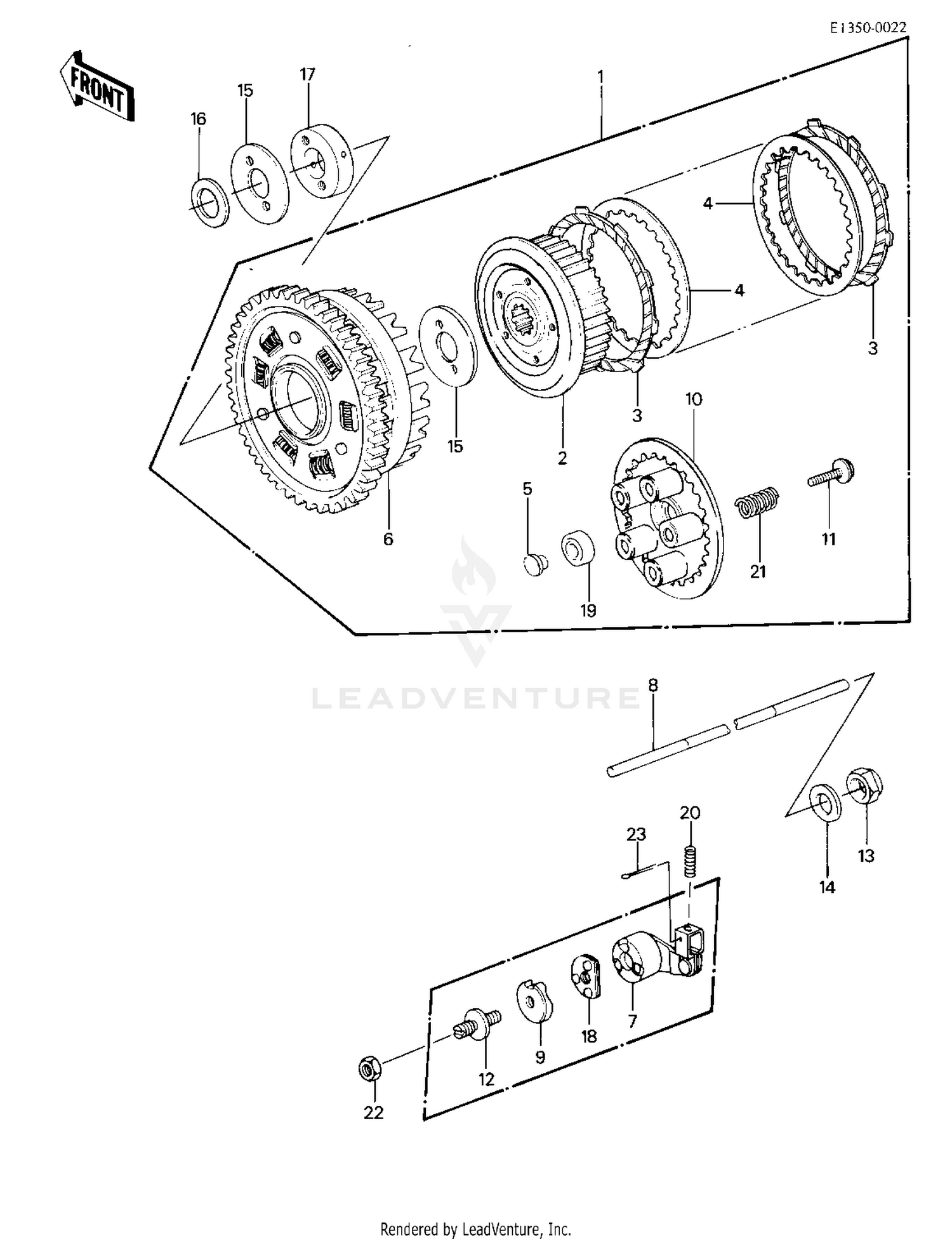

| Ref | Part Number | Description |
|---|
| 1 |
13081-1057 |
CLUTCH-ASSY Price: $535.35 |
| 2 |
13087-1015 |
HUB-CLUTCH Price: $247.36 |
| 3 |
13088-1013 |
PLATE-FRICTION Price: $15.76 |
| 4 |
13089-1004 |
PLATE-CLUTCH,T=2.3 Price: $13.16 |
| 5 |
13091-1085 |
HOLDER,CLUTCH PUSH ROD Price: $9.80 |
| 6 |
13095-1037 |
HOUSING-COMP-CLUTCH Price: $602.50 |
| 7 |
13102-1012 |
RELEASE-COMP-CLUTCH Price: $67.54 |
| 8 |
13116-1148 |
ROD-PUSH,CLUTCH This part replaces 13116-1033. Price: $53.19 |
| 9 |
13119-1003 |
CAM,RELEASE,CLUTCH Price: $16.96 |
| 10 |
13187-1006 |
PLATE-CLUTCH OPERATING Price: $75.59 |
| 11 |
92001-1066 |
BOLT,FLANGED,6X18 Price: $6.22 |
| 12 |
92009-1009 |
SCREW,SLOTTED,8M/M Price: $4.99 |
| 14 |
92022-1116 |
WASHER,20.3X36X2.3 Price: $8.58 |
| 15 |
92022-1221 |
WASHER,CLUTCH THRUST Price: $15.04 |
| 16 |
92022-1223 |
WASHER Price: $8.60 |
| 17 |
92027-1284 |
COLLAR Price: $87.84 |
| 18 |
14020-1091 |
RETAINER,CLUTCH RELEA This part replaces 92045-1001. Price: $11.60 |
| 20 |
92081-069 |
SPRING-CLUTCH RELEASE Price: $7.51 |
| 21 |
92081-1033 |
SPRING,CLUTCH Price: $7.38 |
| 22 |
318AA0800 |
NUT-HEX-SMALL,8MM This part replaces 318B0800. Price: $0.59 |
