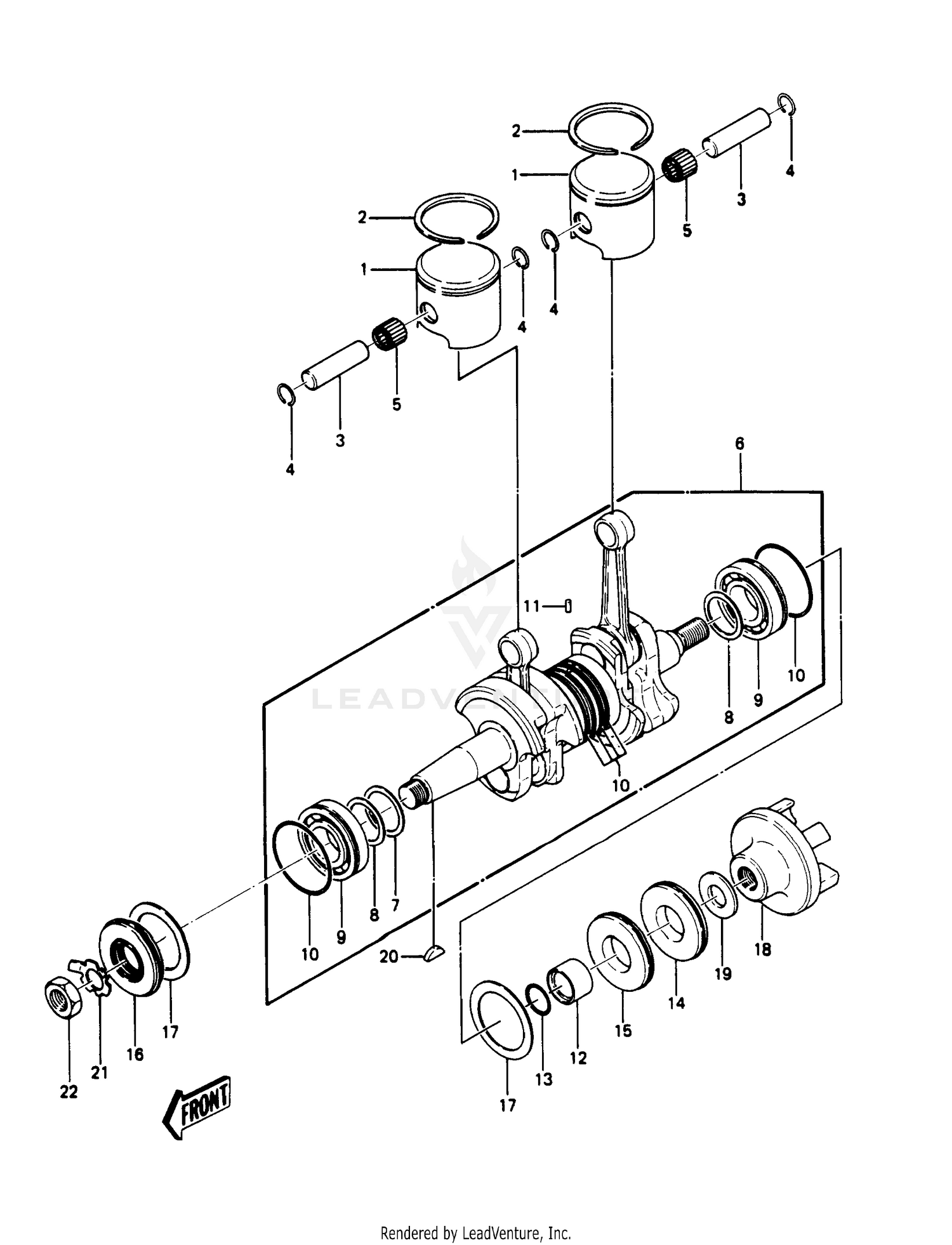

| Ref | Part Number | Description |
|---|
| 1 |
13001-3017 |
PISTON-ENGINE,STD Price: $134.78 |
| 1A |
13029-3001 |
PISTON-ENGINE,0.50 Price: $134.78 |
| 2 |
13003-3014 |
RING-PISTON TOP,STD Price: $34.19 |
| 2A |
13003-3015 |
RING-PISTON TOP,0.50 Price: $34.19 |
| 3 |
13002-504 |
PIN-PISTON Price: $13.02 |
| 4 |
92036-004 |
CIRCLIP PISTON PIN This part replaces 92036-507. Price: $0.65 |
| 5A |
13033-3005 |
BEARING-SMALL END Price: $21.61 |
| 6 |
13031-3011 |
CRANKSHAFT ASSY, Price: $1,132.44 |
| 7 |
92025-532 |
SHIM-1.0T Price: $2.47 |
| 8 |
92025-513 |
SHIM 0.1T Price: $4.24 |
| 8A |
92025-518 |
SHIM 0.2T Price: $1.17 |
| 8B |
92025-523 |
SHIM 0.3T Price: $4.27 |
| 8C |
92025-527 |
SHIM 0.4T Price: $1.05 |
| 8D |
92025-530 |
SHIM 0.5T Price: $1.17 |
| 8E |
92025-533 |
SHIM 0.6T Price: $1.17 |
| 10 |
92055-504 |
O-RING Price: $3.16 |
| 11 |
551A0410 |
PIN-DOWEL,4X10 Price: $0.65 |
| 12 |
42036-3007 |
SLEEVE,CRANKSHAFT OUT Price: $42.30 |
| 14 |
92049-3005 |
SEAL-OIL,TCY306210 Price: $72.79 |
| 15 |
92049-3006 |
SEAL-OIL,DCY30629 Price: $19.39 |
| 16 |
92050-507 |
SEAL,OIL TCY306210 Price: $17.58 |
| 17 |
92022-3021 |
WASHER Price: $5.68 |
| 18A |
42034-3706 |
COUPLING Price: $89.93 |
| 19 |
92022-3028 |
WASHER,18.5X38X4 Price: $7.64 |
| 20 |
510A5200 |
WOODRUFF KEY Price: $2.82 |
| 21 |
92022-569 |
WASHER,LOCK,20M/M Price: $4.50 |
| 22 |
92015-535 |
NUT,20M/M Price: $7.64 |
