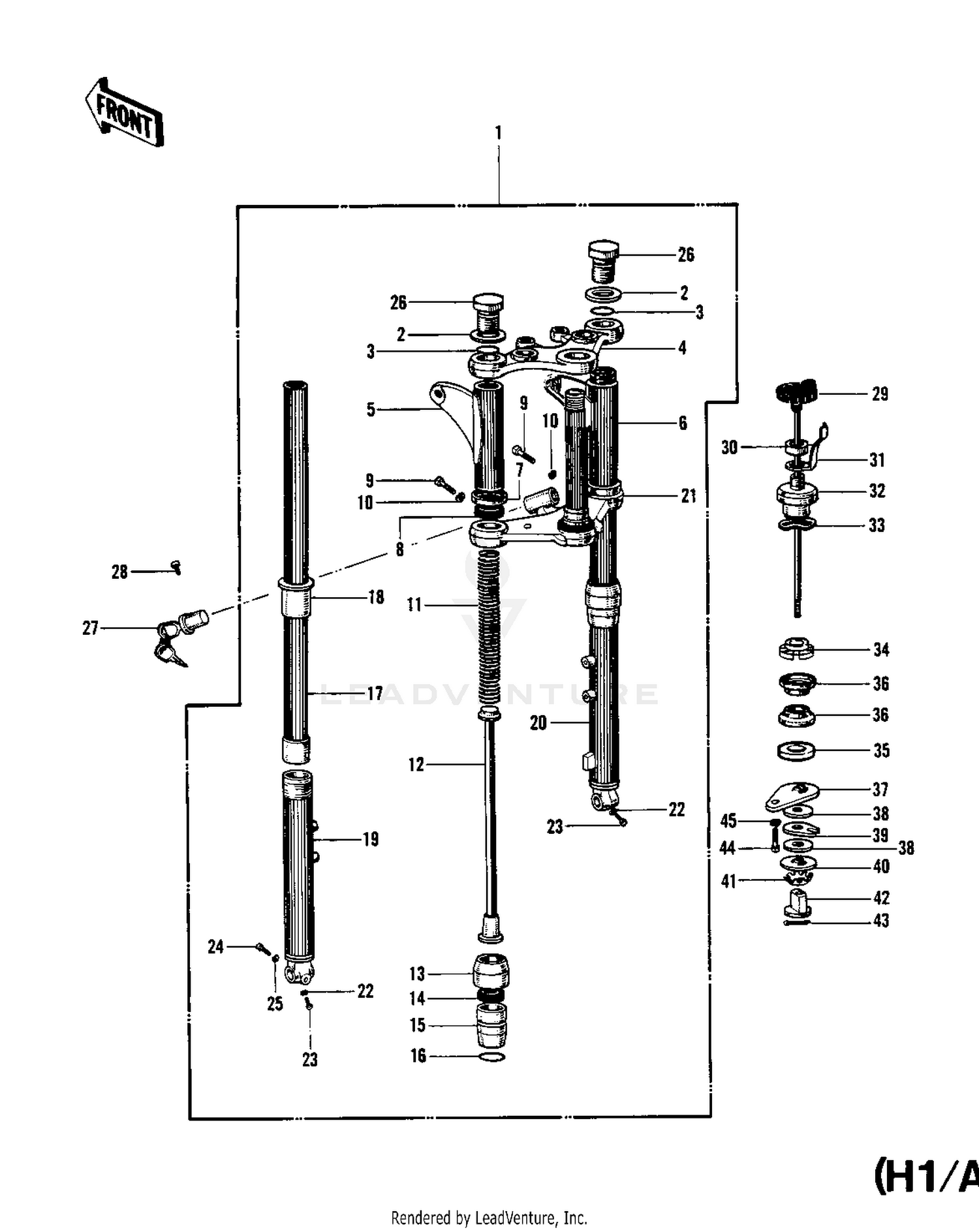

| Ref | Part Number | Description |
|---|
| 2 |
44043-033 |
WASHER FORK TOP Price: $3.84 |
| 4 |
44039-025 |
HEAD STEERING STEM Price: $178.72 |
| 7 |
44043-034 |
WASHER FORK COVER Price: $8.34 |
| 8 |
44045-029 |
GASKET FORK COVER Price: $5.21 |
| 9 |
92001-1252 |
BOLT,HEX HEAD 10X35 Price: $7.65 |
| 10 |
461DA1000 |
WASHER-SPRING,10MM This part replaces 461F1000. Price: $0.68 |
| 11 |
44026-022 |
SPRING FORK Price: $14.16 |
| 11 |
44026-031 |
SPRING-FORK Price: $25.49 |
| 12 |
44028-015 |
HOLDER FORK SPRING Price: $82.60 |
| 13 |
44010-017 |
DUST SHIELD Price: $20.94 |
| 14 |
44009-026 |
OIL SEAL This part replaces 44009-020. Price: $60.50 |
| 15 |
44007-015 |
NUT FORK OUTER TUBE Price: $56.47 |
| 17 |
44013-025 |
TUBE-FORK INNER Price: $143.35 |
| 18 |
44015-011 |
GUIDE FORK INNER TUBE Price: $23.50 |
| 19 |
44005-020 |
TUBE,LH,FORK OUTER Price: $117.41 |
| 20 |
44006-019 |
TUBE,RH,FORK OUTER Price: $143.92 |
| 21 |
44037-024 |
STEM STEERING Price: $419.90 |
| 22 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 23 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 24 |
92002-1241 |
BOLT, 8X32 This part replaces 115B0832. Price: $2.59 |
| 25 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 26 |
44041-021 |
BOLT FORK TOP Price: $53.20 |
| 27 |
27016-017 |
LOCK ASSY STEERING Price: $13.92 |
| 28 |
92099-001 |
SCREW RIVET Price: $3.89 |
| 29 |
46101-004 |
KNOB STEERING DAMPER Price: $12.28 |
| 30 |
315N1200A |
NUT 12MM Price: $5.51 |
| 31 |
46126-001 |
SPRING STRG DAMP KNOB Price: $5.79 |
| 32 |
92090-015 |
NUT STEERING STEM Price: $45.34 |
| 33 |
46100-001 |
WASHER STEERING STEM Price: $4.15 |
| 34 |
92090-007 |
NUT,30MM Price: $11.71 |
| 35 |
46098-016 |
CAP,STEERING STEM Price: $6.51 |
| 36 |
92047-006 |
CONE STRNG STEM BERNG Price: $12.67 |
| 37 |
46106-005 |
PLATE STRG DAMP STEEL Price: $9.23 |
| 38 |
46104-005 |
PLATE STRG DAMP FRCTN Price: $4.21 |
| 39 |
46105-005 |
PLATE STRG DAMP ANCHR Price: $10.60 |
| 40 |
46106-006 |
PLATE STRG DAMP STEEL Price: $5.51 |
| 41 |
46124-006 |
SPRING-STEERING DAMP Price: $10.17 |
| 42 |
46125-005 |
NUT STRG DAMPER GUIDE Price: $26.55 |
| 43 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 44 |
115G0812 |
BOLT-SMALL-UPSET,8X12 This part replaces 114G0812. Price: $4.16 |
