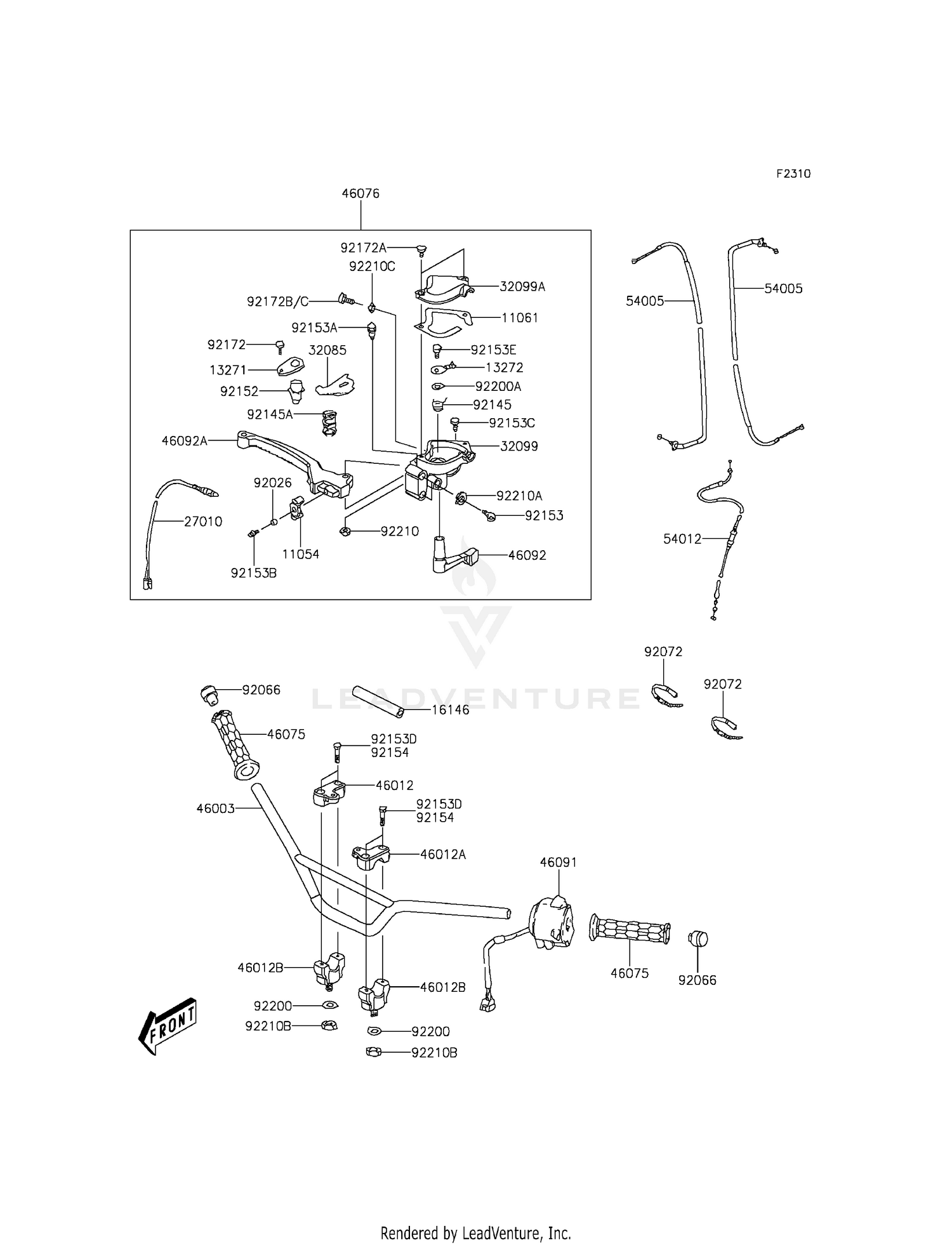

| Ref | Part Number | Description |
|---|
| 11054 |
11054-Y001 |
BRACKET Price: $10.58 |
| 11061 |
11061-Y017 |
GASKET Price: $3.54 |
| 13271 |
13272-Y043 |
PLATE This part replaces 13271-Y008. Price: $4.86 |
| 13272 |
13272-Y002 |
PLATE,CHOKE Price: $6.17 |
| 16146 |
16146-Y001 |
COVER-ASSY,HANDLE Price: $14.96 |
| 27010 |
27010-Y003 |
SWITCH,STOP Price: $13.79 |
| 32085 |
32085-Y006 |
STOPPER This part replaces 32085-Y001. Price: $6.35 |
| 32099 |
32099-Y002 |
CASE,LWR Price: $19.06 |
| 32099A |
32099-Y003 |
CASE,UPP Price: $12.96 |
| 46003 |
46003-Y001 |
HANDLE Price: $43.33 |
| 46012 |
46012-Y001 |
HOLDER-HANDLE,UPP,RH Price: $7.12 |
| 46012A |
46012-Y002 |
HOLDER-HANDLE,UPP,LH Price: $7.12 |
| 46012B |
46012-Y003 |
HOLDER-HANDLE,LWR Price: $13.47 |
| 46075 |
46075-Y002 |
GRIP,HANDLE Price: $9.24 |
| 46076 |
46076-Y001 |
LEVER-ASSY-GRIP,RH Price: $71.46 |
| 46091 |
46091-Y001 |
HOUSING-ASSY-CONTROL,LH Price: $88.20 |
| 46092 |
46092-Y001 |
LEVER-GRIP,CHOKE Price: $17.67 |
| 46092A |
46092-Y002 |
LEVER-GRIP,RH Price: $17.78 |
| 54005 |
54005-Y001 |
CABLE-BRAKE,FR Price: $17.84 |
| 54012 |
54012-Y001 |
CABLE-THROTTLE Price: $10.87 |
| 92026 |
92026-Y013 |
SPACER This part replaces 92026-Y007. Price: $6.72 |
| 92066 |
92066-Y002 |
PLUG Price: $1.16 |
| 92072 |
92072-Y001 |
BAND Price: $1.90 |
| 92145 |
92145-Y020 |
SPRING,RETURN Price: $6.17 |
| 92145A |
92145-Y075 |
SPRING This part replaces 92145-Y021. Price: $7.16 |
| 92152 |
92152-Y078 |
COLLAR This part replaces 92152-Y012. Price: $5.64 |
| 92153 |
92154-Y230 |
BOLT This part replaces 92153-Y002. Price: $5.64 |
| 92153A |
92154-Y231 |
BOLT This part replaces 92153-Y009. Price: $1.88 |
| 92153B |
92153-Y025 |
BOLT,FLANGE,6X16 Price: $0.76 |
| 92153C |
92153-Y060 |
BOLT,SOCKET,6X20 Price: $1.63 |
| 92153D |
92154-Y146 |
BOLT,SOCKET,6X25 This part replaces 92153-Y061. Price: $4.39 |
| 92153E |
92153-Y072 |
BOLT,FLANGED,8X12 This part replaces 92153-Y071. Price: $4.73 |
| 92172 |
92172-Y090 |
SCREW,PAN,3X8 This part replaces 92172-Y005. Price: $2.26 |
| 92172A |
92172-Y091 |
SCREW,PAN,4X16 This part replaces 92172-Y008. Price: $2.26 |
| 92172B |
92172-Y009 |
SCREW,PAN,5X14 Price: $0.96 |
| 92200 |
92200-Y020 |
WASHER,10MM Price: $0.76 |
| 92200A |
92200-Y022 |
WASHER Price: $6.17 |
| 92210 |
92210-Y100 |
NUT,6MM This part replaces 92210-Y008. Price: $2.26 |
| 92210A |
92210-Y101 |
NUT This part replaces 92210-Y015. Price: $2.26 |
| 92210B |
92210-Y034 |
NUT,10MM Price: $3.12 |
