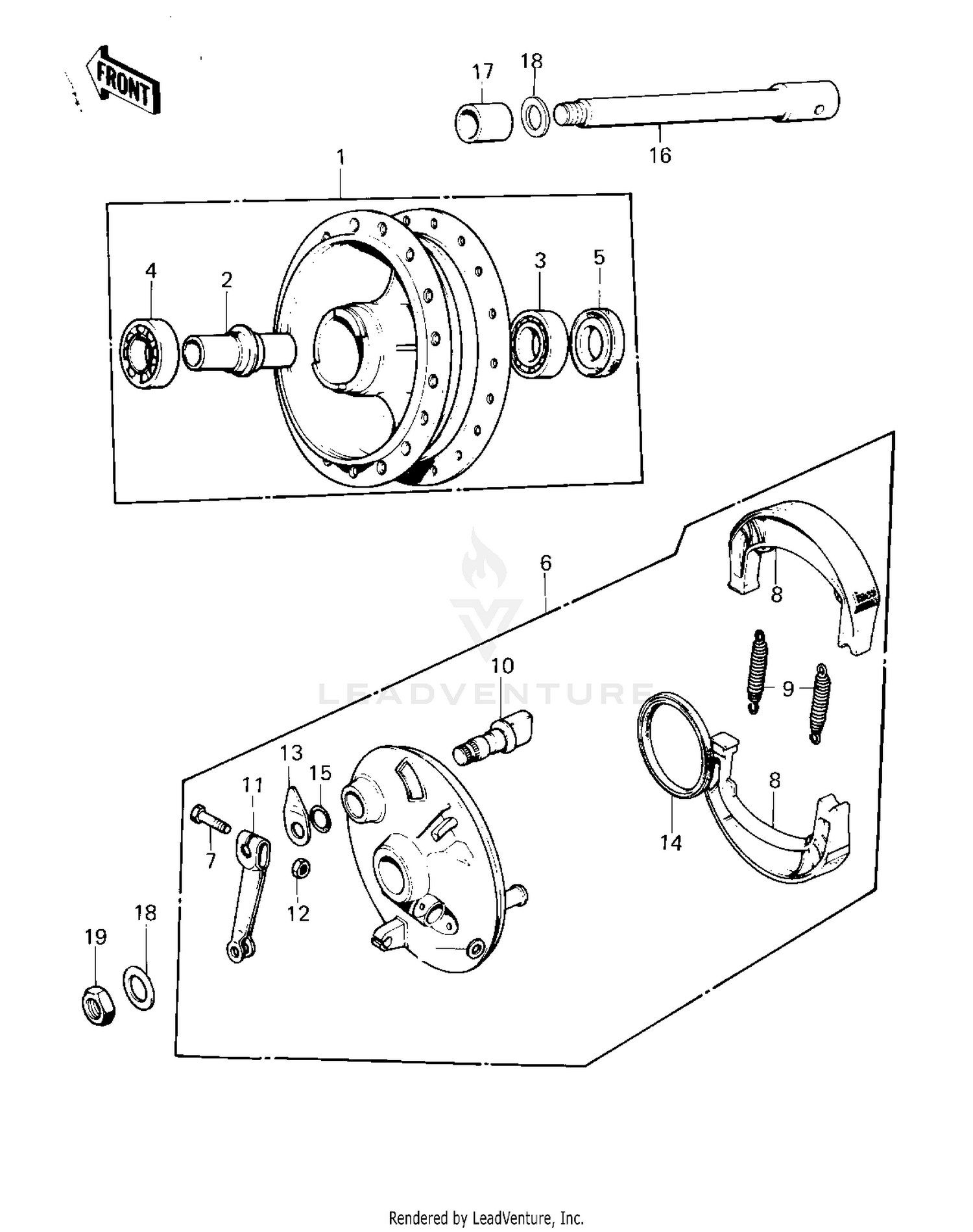

| Ref | Part Number | Description |
|---|
| 1 |
41034-1040 |
DRUM-ASSY,FR BRK Price: $214.31 |
| 2 |
41039-002 |
SPACER FRONT HUB Price: $10.96 |
| 3 |
601B6200 |
BEARING BALL #6200 Price: $14.85 |
| 4 |
601B6300Z |
BEARING BALL #6300Z Price: $15.92 |
| 5 |
92050-063 |
OIL SEAL,TC17317 Price: $15.34 |
| 6 |
41035-069-80 |
PANEL-ASY,FR BRK BUFF Price: $161.75 |
| 7 |
112BA0630 |
BOLT-UPSET This part replaces 112G0630. Price: $1.38 |
| 8 |
41048-1085 |
SHOE-BRAKE Price: $22.53 |
| 9 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 10 |
41050-018 |
CAM SHAFT-FRONT BRAKE Price: $23.50 |
| 11 |
41053-005 |
LEVER FRONT BRAKE CAM Price: $15.47 |
| 12 |
41072-007 |
NUT,6MM Price: $3.92 |
| 13 |
41085-013 |
INDICATOR,FR BK SHOE Price: $14.51 |
| 14 |
92050-002 |
OIL SEAL BRAKE PANEL Price: $14.64 |
| 16 |
41068-1359 |
AXLE,FR This part replaces 41068-039. Price: $29.09 |
| 17 |
41069-026 |
COLLAR,FRONT AXLE Price: $13.08 |
| 18 |
411AA1000 |
WASHER-PLAIN,10MM This part replaces 411B1000. Price: $0.96 |
