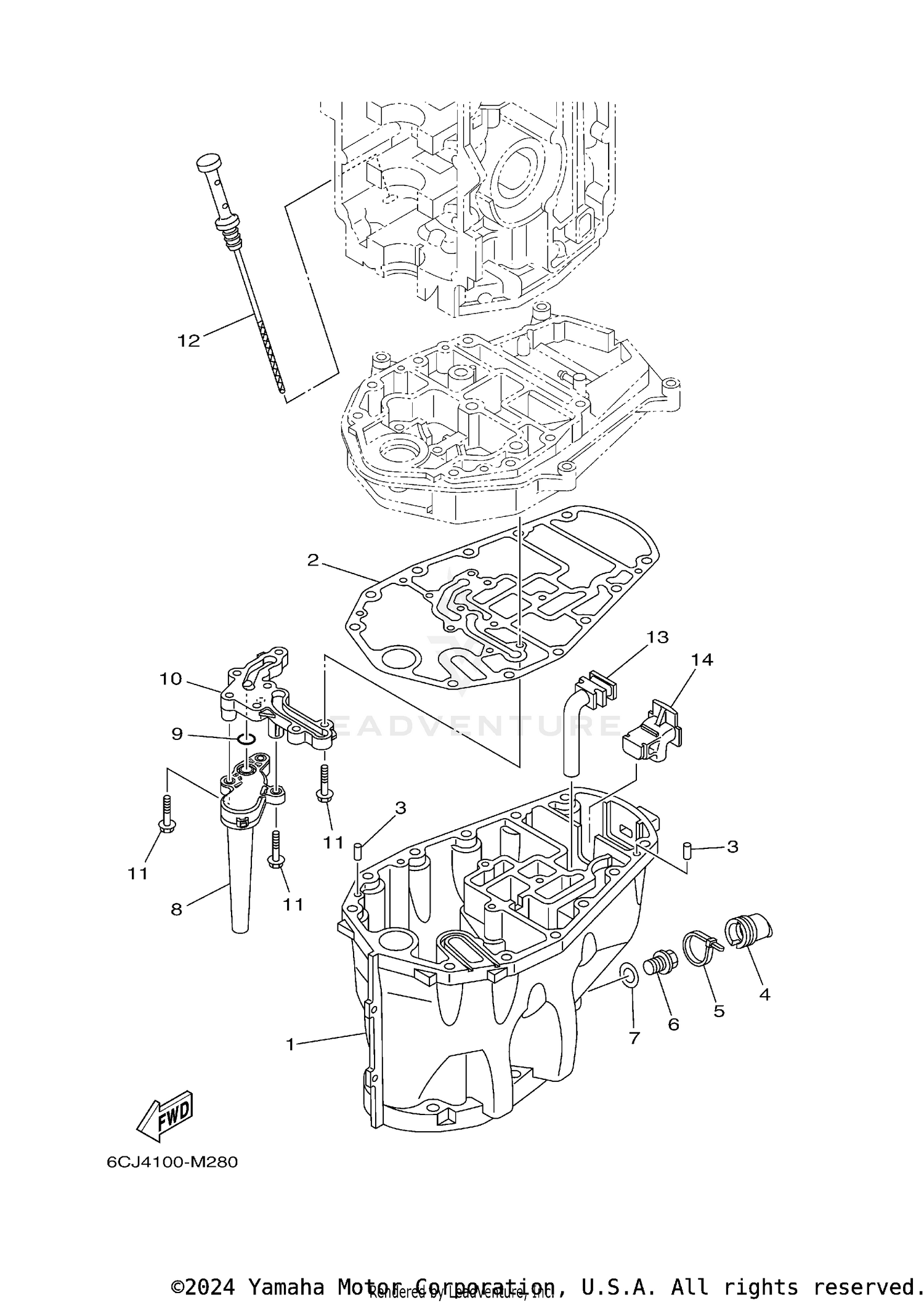

OIL PAN
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 6C5-15311-02-00 | OIL PAN Price: $617.10 |
| 2 | 6C5-15312-01-00 | GASKET, OIL PAN Price: $51.35 |
| 3 | 93606-12019-00 | PIN, DOWEL Price: $4.60 |
| 4 | 6CJ-15316-01-00 | DAMPER 1 Price: $7.90 |
| 5 | 90465-11M59-00 | CLAMP Price: $7.10 |
| 6 | 90340-14M06-00 | PLUG, STRAIGHT SCREW Price: $14.20 |
| 7 | 90430-14M09-00 | GASKET Price: $2.55 |
| 8 | 6CJ-13411-10-00 | STRAINER, OIL Price: $41.65 |
| 9 | 93210-12790-00 | O-RING Price: $8.49 |
| 10 | 6CJ-15333-10-00 | COVER Price: $36.25 |
| 11 | 95817-06025-00 | BOLT,FLANGE This part replaces 95812-06025-00. Price: $1.75 |
| 12 | 6C5-15362-00-00 | PLUG, OIL LEVEL Price: $33.00 |
| 13 | 6C5-45135-10-00 | PIPE Price: $121.85 |
