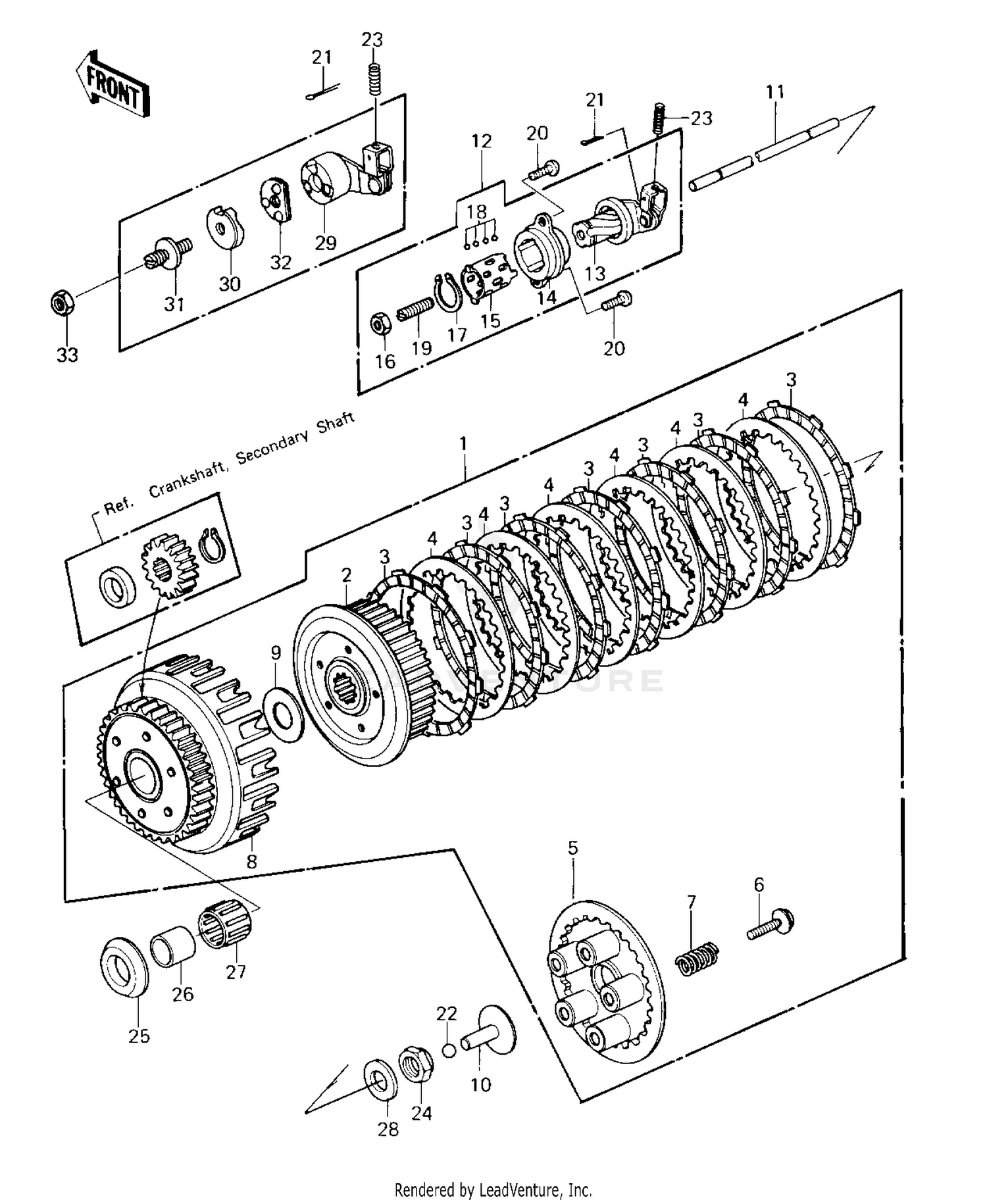

| Ref | Part Number | Description |
|---|
| 1 |
13081-1044 |
CLUTCH-ASSY Price: $539.21 |
| 2 |
13087-1162 |
HUB-CLUTCH This part replaces 13087-1052. Price: $135.05 |
| 3 |
13088-040 |
PLATE-FRICTION Price: $12.57 |
| 4 |
13089-026 |
PLATE-CLUTCH,T=2.0 Price: $12.80 |
| 5 |
13187-008 |
PLATE,CLUTCH SPRING Price: $63.68 |
| 6 |
92001-1066 |
BOLT,FLANGED,6X18 Price: $6.22 |
| 7 |
92081-139 |
SPRING,CLUTCH Price: $8.51 |
| 8 |
13095-1030 |
HOUSING,CLUTCH,65T Price: $429.20 |
| 9 |
92026-022 |
SPACER,25.5X47X2.5 Price: $9.91 |
| 10 |
13116-029 |
PUSHER,CLTCH SPRG PLT Price: $38.23 |
| 11 |
13116-1007 |
ROD,CLUTCH PUSH Price: $37.32 |
| 21 |
550AA1615 |
PIN-COTTER,1.6X15 This part replaces 550D1615. Price: $2.51 |
| 23 |
92081-069 |
SPRING-CLUTCH RELEASE Price: $7.51 |
| 24 |
92015-1555 |
NUT,20MM Price: $13.08 |
| 25 |
92026-116 |
SPACER,THRUST,T=5.5 Price: $17.60 |
| 26 |
92028-178 |
BUSHING,25X32X23.6 Price: $25.03 |
| 27 |
92046-028 |
BEARING-NEEDLE,KTV323723 Price: $21.24 |
| 28 |
92125-002 |
WASHER Price: $16.45 |
