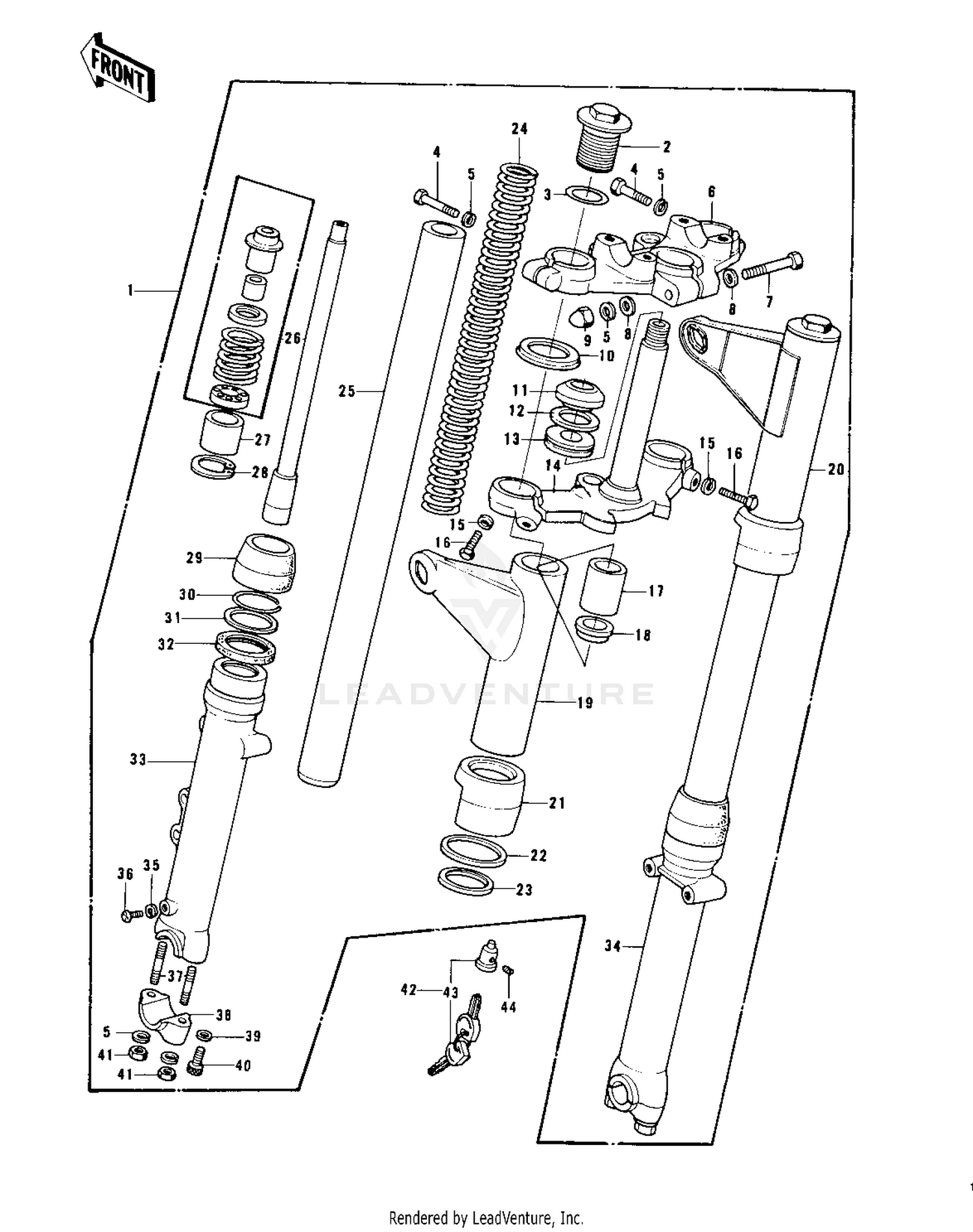

| Ref | Part Number | Description |
|---|
| 1 |
44001-175 |
FORK-FRONT Price: $1,269.52 |
| 2 |
44062-003 |
BOLT-FORK TOP Price: $49.14 |
| 4 |
44041-045 |
BOLT-HEX HEAD.8M/M Price: $25.59 |
| 5 |
461DA0800 |
WASHER-SPRING,8MM This part replaces 461F0800. Price: $0.40 |
| 6 |
44039-073 |
HEAD,STEERING Price: $176.43 |
| 7 |
44041-042 |
BOLT-STEERING STEM HD Price: $5.13 |
| 8 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 9 |
92020-007 |
NUT FUEL TANK FRONT Price: $7.63 |
| 10 |
44064-005 |
WASHER,FORK COVER Price: $18.63 |
| 11 |
92048-0033 |
RACE,STEERING STEM BEARING This part replaces 92047-012. Price: $14.60 |
| 12 |
92022-231 |
WASHER,30.5X50X0.6 Price: $4.69 |
| 13 |
92056-003 |
SEAL-OIL,STEERING STEM Price: $8.86 |
| 14 |
44037-098 |
STEM,STEERING Price: $326.23 |
| 15 |
461DA1200 |
WASHER-SPRING,12MM This part replaces 461F1200. Price: $1.03 |
| 16 |
92003-064 |
BOLT-HEX HEAD,12X36 Price: $25.59 |
| 17 |
44028-039 |
SPACER Price: $6.72 |
| 18 |
44029-019 |
GUIDE-FORK SPRING Price: $8.55 |
| 19 |
44033-072 |
COVER,L.H FORK Price: $256.02 |
| 20 |
44034-072 |
COVER,R.H FORK Price: $236.71 |
| 21 |
44064-025 |
GUIDE,FORK COVER Price: $30.34 |
| 22 |
44064-008 |
WASHER,FORK COU GUID Price: $11.66 |
| 23 |
44045-038 |
GASKET,FORK COVER Price: $5.78 |
| 24 |
44026-071 |
SPRING,FORK Price: $81.16 |
| 25 |
44013-037 |
TUBE,FORK INNER Price: $620.14 |
| 26 |
44022-027 |
CYLINDER-FORK Price: $70.55 |
| 27 |
44018-009 |
PISTON,FORK Price: $25.98 |
| 28 |
44044-019 |
CIRCLIP,FORK PISTON Price: $7.96 |
| 29 |
44010-032 |
DUST SHEILD,FORK Price: $39.46 |
| 30 |
92033-1100 |
RING-SNAP,FORK OIL Price: $14.94 |
| 31 |
44043-044 |
WASHER-OIL SEAL FIT Price: $13.51 |
| 32 |
92049-1216 |
SEAL-OIL,FORK OUTER P Price: $23.21 |
| 33 |
44005-065 |
TUBE,LH,FORK OUTER Price: $319.24 |
| 34 |
44006-063 |
TUBE,RH,FORK OUTER Price: $506.09 |
| 35 |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 36 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 37 |
92004-1009 |
STUD,8X35 Price: $6.38 |
| 38 |
44063-014 |
HOLDER,FRONT AXLE Price: $33.28 |
| 39 |
44045-057 |
GASKET,FORK CYLINDER Price: $4.86 |
| 40 |
44041-040 |
BOLT,SOCKET,FORK CYLINDER Price: $6.57 |
| 41 |
92015-1124 |
NUT,LOCK,8MM Price: $5.42 |
| 42 |
27016-048 |
LOCK,STEERING Price: $76.21 |
