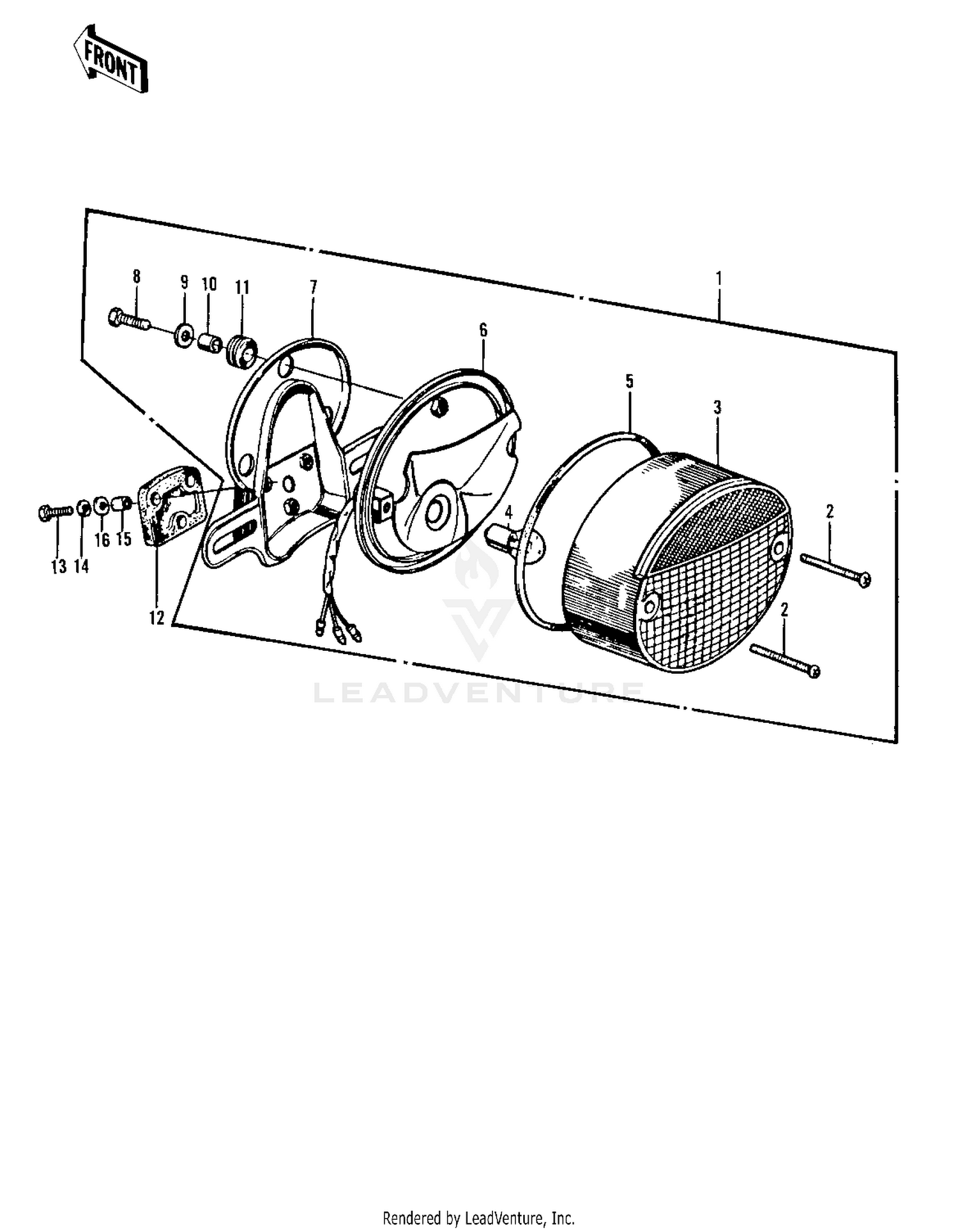

| Ref | Part Number | Description |
|---|
| 1 |
23024-018 |
LAMP ASSY,TAIL Price: $292.59 |
| 2 |
220E0435A |
SCREW-PAN HEAD,4X35 Price: $8.56 |
| 3 |
23026-023 |
LENS-TAIL LAMP Price: $131.51 |
| 4 |
92069-059 |
BULB,12V 27/8W Price: $8.12 |
| 5 |
23028-018 |
GASKET-TAIL LAMP LENS Price: $12.32 |
| 6 |
23027-030 |
CASE,TAIL LAMP Price: $142.14 |
| 7 |
23036-017 |
BRACKET,TAIL LAMP Price: $54.64 |
| 8 |
112BA0620 |
BOLT-UPSET This part replaces 112G0620. Price: $2.28 |
| 9 |
92200-0283 |
WASHER,6.5X20X1.6 This part replaces 92022-125. Price: $1.40 |
| 10 |
92027-129 |
COLLAR,6.8X10X8.5 Price: $5.00 |
| 11 |
92075-076 |
DAMPER RUBBER Price: $4.78 |
| 12 |
35039-004 |
DAMPER RUBBER,RR FEND Price: $18.41 |
| 13 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 14 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 15 |
92027-156 |
COLLAR,6.8X10X14.5 Price: $5.00 |
