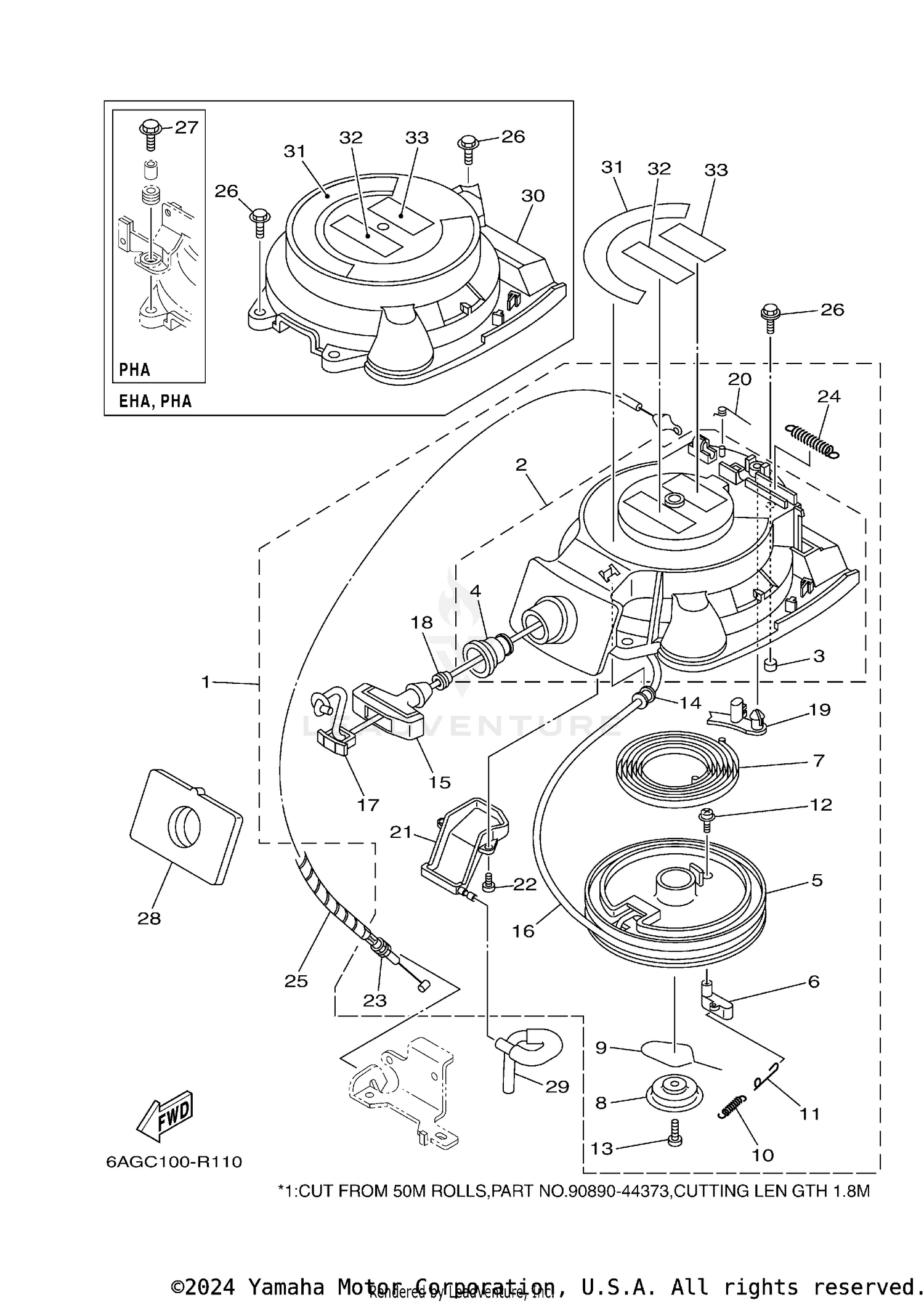

| Ref | Part Number | Description |
|---|
| 1 |
6AH-15710-03-00 |
STARTER ASSY Price: $275.95 |
| 2 |
6AH-15711-01-00 |
CASE, STARTER Price: $112.50 |
| 3 |
6BL-15764-00-00 |
COLLAR 1 Price: $11.10 |
| 4 |
6AH-15795-00-00 |
GUIDE, ROPE Price: $25.35 |
| 5 |
63V-15714-00-00 |
DRUM, SHEAVE Price: $70.95 |
| 6 |
6AH-15741-10-00 |
PAWL, DRIVE Price: $9.10 |
| 7 |
63V-15713-00-00 |
SPRING, STARTER Price: $35.45 |
| 8 |
68T-15716-00-00 |
PLATE, DRIVE Price: $14.35 |
| 9 |
63V-15705-01-00 |
SPRING, DRIVE PAWL Price: $7.15 |
| 10 |
63V-15767-01-00 |
SPRING Price: $6.40 |
| 11 |
68T-15784-00-00 |
SPRING, RETURN Price: $6.40 |
| 12 |
63V-15793-00-00 |
SCREW Price: $2.85 |
| 13 |
68T-15793-00-00 |
SCREW Price: $5.35 |
| 14 |
68T-15764-00-00 |
COLLAR 1 Price: $4.40 |
| 15 |
689-15755-02-00 |
HANDLE, STARTER Price: $6.25 |
| 17 |
6F5-15779-02-00 |
COVER Price: $5.35 |
| 18 |
6A0-15789-01-00 |
DAMPER Price: $1.65 |
| 19 |
66T-15794-00-00 |
STOPPER Price: $6.15 |
| 20 |
66T-15734-00-00 |
SPRING, RETURN Price: $6.40 |
| 21 |
6AH-15782-00-00 |
COVER, SHEAVE Price: $15.40 |
| 22 |
6AH-15793-00-00 |
SCREW Price: $4.50 |
| 23 |
6AH-15770-00-00 |
CABLE COMP., STARTER STOP Price: $50.35 |
| 24 |
66T-15731-00-00 |
SPRING, RETURN Price: $6.40 |
| 25 |
90446-06M90-00 |
HOSE (L120) Price: $6.60 |
| 26 |
95D75-06020-00 |
BOLT, FLANGE DEEP Price: $1.10 |
| 26 |
97E95-06520-00 |
BOLT, HEXAGON W/W Price: $3.05 |
| 27 |
90119-06169-00 |
BOLT, WITH WASHER Price: $4.05 |
| 28 |
6AH-15762-01-00 |
SEAL, RUBBER 2 Price: $65.80 |
| 29 |
6AH-24316-00-00 |
PIPE 6 Price: $13.25 |
| 30 |
6AH-81337-00-00 |
COVER, FLYWHEEL Price: $45.35 |
| 31 |
6AH-14427-61-00 |
LABEL, INSTRUCTION Price: $11.55 |
| 32 |
6EE-81995-40-00 |
LABEL, WARNING Price: $16.70 |
