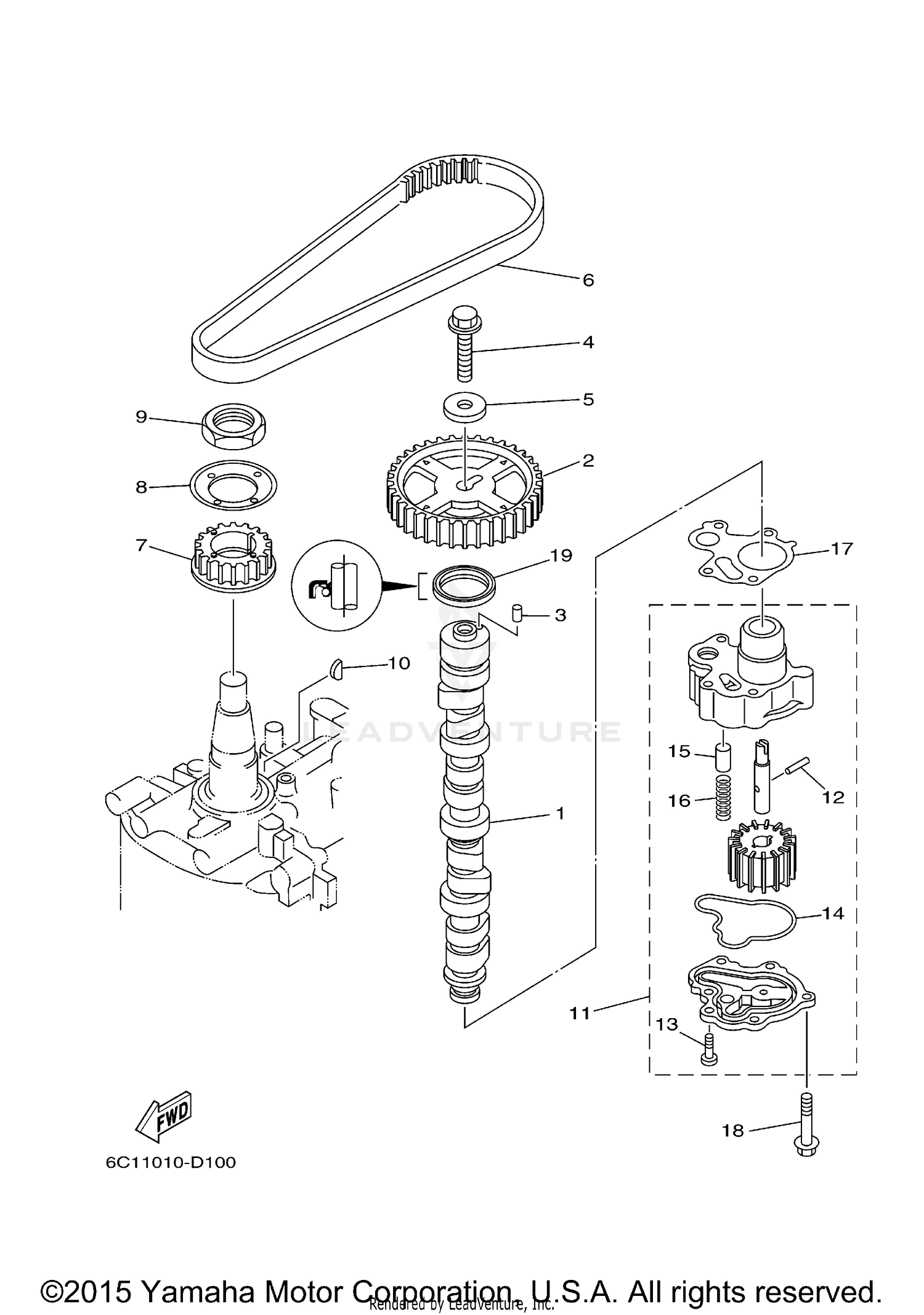

| Ref | Part Number | Description |
|---|
| 1 |
6C5-12171-00-00 |
CAMSHAFT 1 Price: $352.70 |
| 2 |
6C5-11537-00-00 |
GEAR, DRIVEN Price: $121.10 |
| 3 |
93605-17002-00 |
PIN, DOWEL Price: $5.55 |
| 4 |
95817-10035-00 |
BOLT, FLANGE Price: $9.49 |
| 5 |
90201-10144-00 |
WASHER, PLATE Price: $3.30 |
| 6 |
6C5-46241-00-00 |
BELT Price: $84.65 |
| 7 |
6C5-11536-00-00 |
GEAR, DRIVE Price: $52.50 |
| 8 |
62Y-11557-00-00 |
WASHER 1 Price: $7.70 |
| 9 |
90170-35008-00 |
NUT Price: $28.50 |
| 10 |
90280-03017-00 |
KEY, WOODRUFF This part replaces 90280-03M01-00. Price: $8.49 |
| 11 |
6C5-13300-01-00 |
OIL PUMP ASSY This part replaces 6C5-13300-00-00. Price: $221.35 |
| 12 |
93603-17070-00 |
PIN, DOWEL Price: $4.50 |
| 13 |
98580-06016-00 |
SCREW, PAN HEAD Price: $3.35 |
| 14 |
6C5-13142-00-00 |
GASKET Price: $11.05 |
| 15 |
6G8-11577-00-00 |
PLUNGER, RELIEF Price: $11.10 |
| 16 |
90501-6C500-00 |
SPRING, COMPRESSION Price: $4.65 |
| 17 |
6C5-13329-00-00 |
GASKET, PUMP COVER Price: $6.75 |
| 18 |
90119-06025-00 |
BOLT, WITH WASHER Price: $5.35 |
