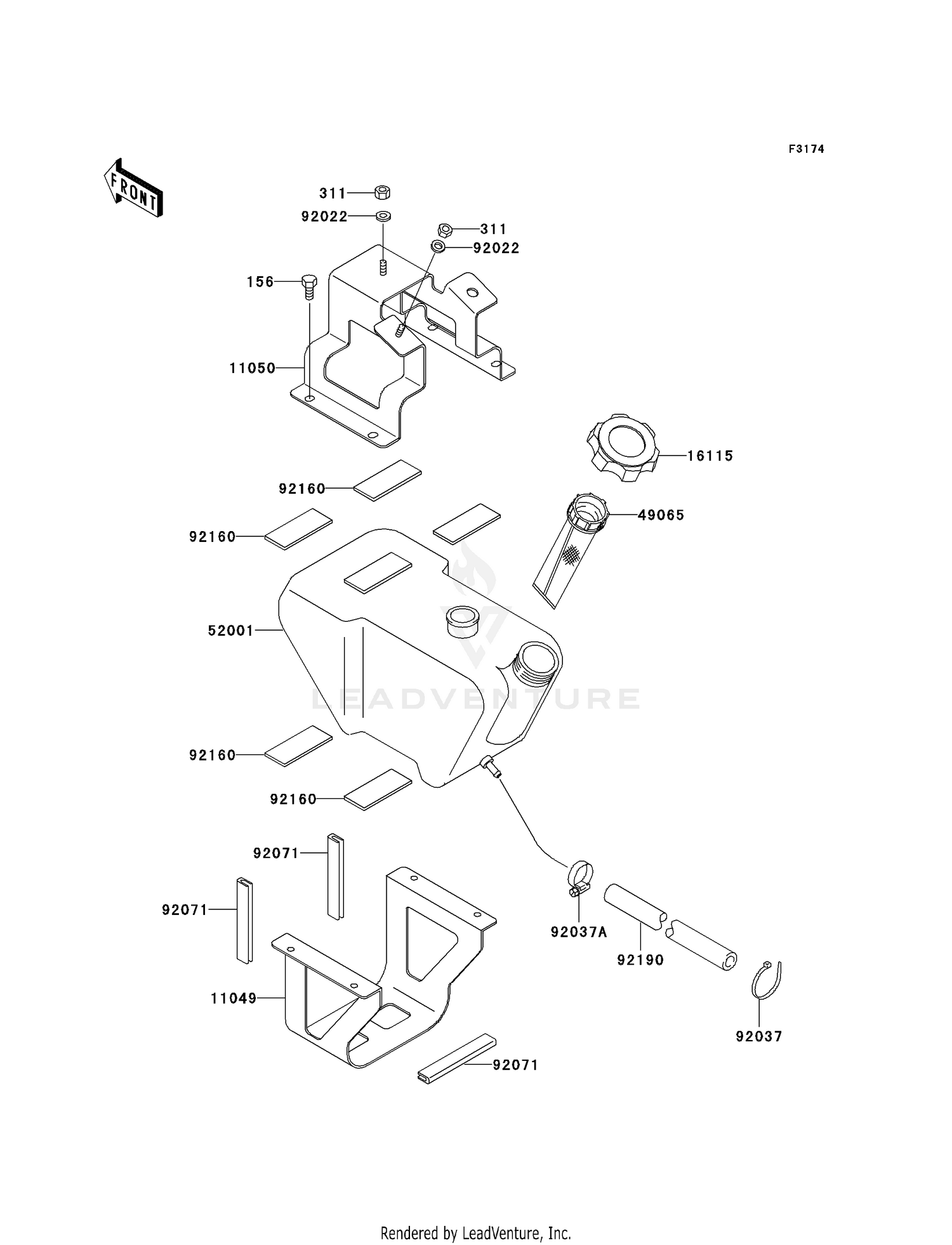

OIL TANK
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 156 | 156R0614 | BOLT-WP,6X14 Price: $3.90 |
| 311 | 311R0600 | NUT-HEX,6MM Price: $0.70 |
| 11049 | 11049-3760 | BRACKET Price: $75.84 |
| 11050 | 11050-3725 | BRACKET Price: $89.37 |
| 16115 | 16115-3720 | CAP-OIL FILLER This part replaces 16115-3714. Price: $59.68 |
| 49065 | 49065-3702 | FILTER-OIL Price: $17.81 |
| 52001 | 52001-3730 | TANK-OIL Price: $42.10 |
| 92022 | 92022-3710 | WASHER,6.5X20X1.5 Price: $3.65 |
| 92037 | 92037-1173 | CLAMP Price: $3.49 |
| 92037A | 92037-3726 | CLAMP Price: $3.98 |
| 92071 | 92071-1198 | GROMMET Price: $2.90 |
| 92160 | 92160-3880 | DAMPER,WATER MUFFER Price: $5.88 |
