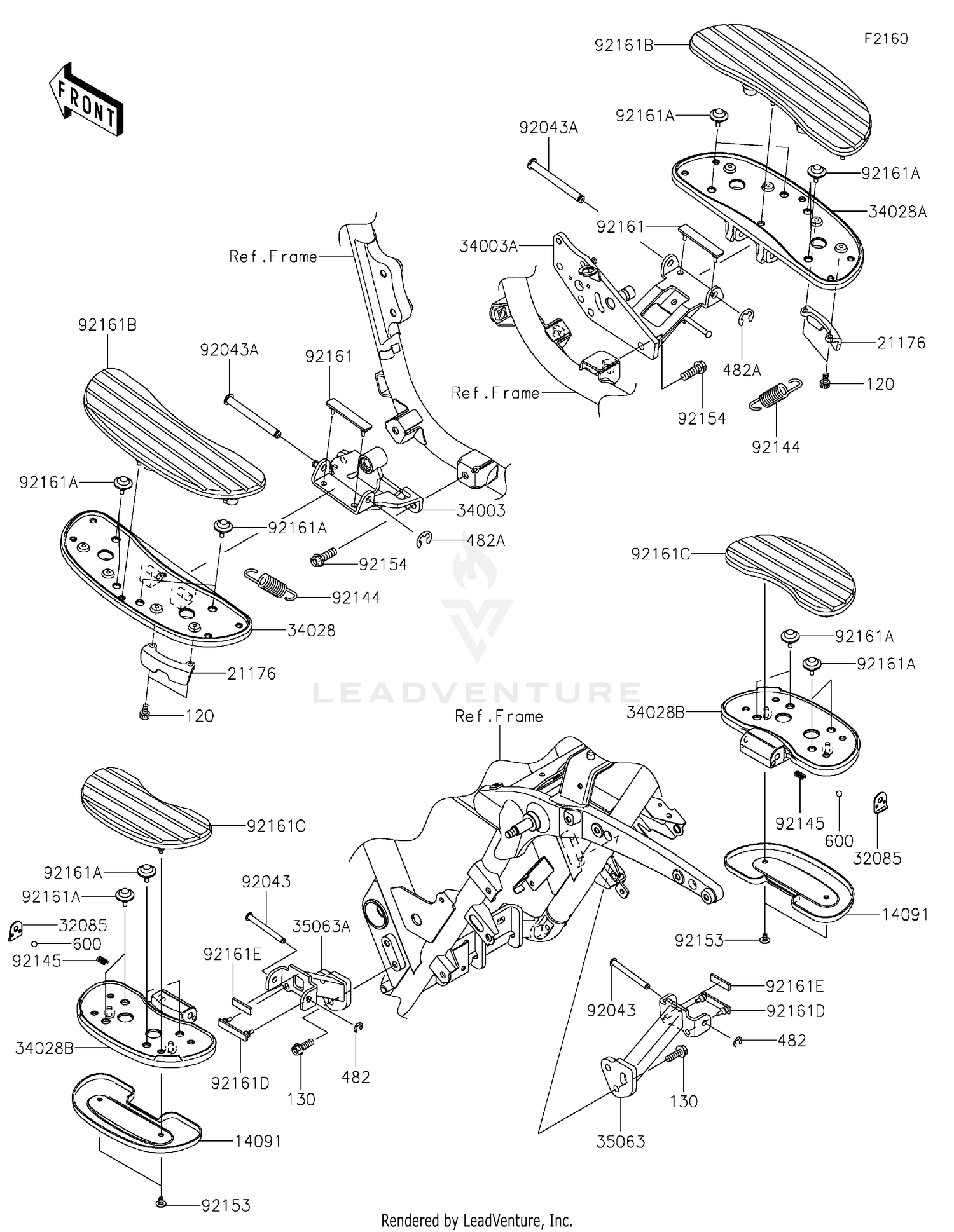

| Ref | Part Number | Description |
|---|
| 3 |
250000676 |
Forming Screw M5 x 16 Price: $1.09 |
| 4 |
250200025 |
Washer M5 Price: $0.76 |
| 5 |
520000693 |
RH Protector Price: $53.99 |
| 5 |
520000694 |
LH Protector Price: $53.99 |
| 6 |
293150163 |
Rivet Hucklok Price: $3.09 |
| 8 |
520000677 |
Wiring Harness Ass'y Price: $39.99 |
| 10 |
520000758 |
Bulb Price: $9.29 |
| 11 |
511000764 |
Rear Light Cover Price: $39.99 |
| 12 |
705014429 |
Rubber Stopper This part replaces 705003666. Price: $6.09 |
| 13 |
549011291 |
Horn Price: $36.99 |
| 14 |
21118 |
Reflector (Bright) Price: $29.99 |
| 15 |
520001600 |
Yellow, RH Reflector Price: $34.99 |
| 16 |
520001601 |
Yellow, LH Reflector Price: $34.99 |
| 17 |
705002423 |
Amber, Lateral Reflector Price: $15.99 |
| 18 |
520000871 |
Deep Black, Reflector Support Price: $5.79 |
| 19 |
27120 |
TIE RAP - Call your local BRP dealership Price: $0.95 |
| 20 |
520001593 |
Tools Kit This part replaces 529000078. Price: $52.99 |
| 26 |
520000894 |
Tool Kit Rack Price: $14.99 |
| 27 |
520000528 |
Latch Price: $7.89 |
| 30 |
520001775 |
Locking Plate Price: Call Us |
| 32 |
520001810 |
Clevis Pin Price: Call Us |
| 33 |
41029 |
Hair pin Price: $4.49 |
| 35 |
390909100 |
Avex Rivet Price: $0.30 |
| 41 |
520000727 |
Plate Price: $36.99 |
| 42 |
207782544 |
Carriage Bolt, M8 X 25 Price: $1.59 |
| 43 |
207784044 |
Bolt Carriage M8 X 40 Price: $1.19 |
| 44 |
233281414 |
Hex. Flange Elastic Nut M8 Price: $1.49 |
| 120 |
120CB0616 |
BOLT-SOCKET,6X16 Price: $1.27 |
| 130 |
130BB0825 |
BOLT-FLANGED,8X25 Price: $4.45 |
| 482 |
482EA7000 |
CIRCLIP-TYPE-E Price: $3.92 |
| 482A |
482EA8000 |
CIRCLIP-TYPE-E,8MM Price: $0.68 |
| 600 |
600A0800 |
BALL-STEEL,1/4 Price: $0.62 |
| 14091 |
14091-1808 |
COVER,REAR STEP Price: $33.22 |
| 21176 |
21176-0123 |
SENSOR,BANK Price: $22.09 |
| 32085 |
32085-0045 |
STOPPER,REAR STEP Price: $3.29 |
| 34003 |
34003-0102-18R |
HOLDER-STEP,FR,LH,F.S.BLACK Price: $119.72 |
| 34003A |
34003-0103-18R |
HOLDER-STEP,FR,RH,F.S.BLACK Price: $124.87 |
| 34028 |
34028-0143 |
STEP,FR,LH Price: $110.41 |
| 34028A |
34028-0144 |
STEP,FR,RH Price: $110.41 |
| 34028B |
34028-0145 |
STEP,RR Price: $66.61 |
| 35063 |
35063-0649-18R |
STAY,RR,RH,F.S.BLACK Price: $80.77 |
| 35063A |
35063-0669-18R |
STAY,RR,LH,F.S.BLACK Price: $80.77 |
| 92043 |
92043-0054 |
PIN,8X76.5 Price: $2.90 |
| 92043A |
92043-1707 |
PIN,10X98.5 Price: $10.49 |
| 92144 |
92144-1266 |
SPRING Price: $8.79 |
| 92145 |
92145-1319 |
SPRING Price: $1.81 |
| 92153 |
92153-1096 |
BOLT,SOCKET,6X10 Price: $2.80 |
| 92154 |
92154-0284 |
BOLT,FLANGED,10X30 Price: $3.52 |
| 92161 |
92161-0746 |
DAMPER,STEP HOLDER Price: $7.60 |
| 92161A |
92161-0766 |
DAMPER,STEP Price: $5.29 |
| 92161B |
92161-0770 |
DAMPER,FOOT BOARD Price: $68.83 |
| 92161C |
92161-0771 |
DAMPER,REAR STEP Price: $54.46 |
| 92161D |
92161-0772 |
DAMPER,REAR STEP Price: $7.24 |
