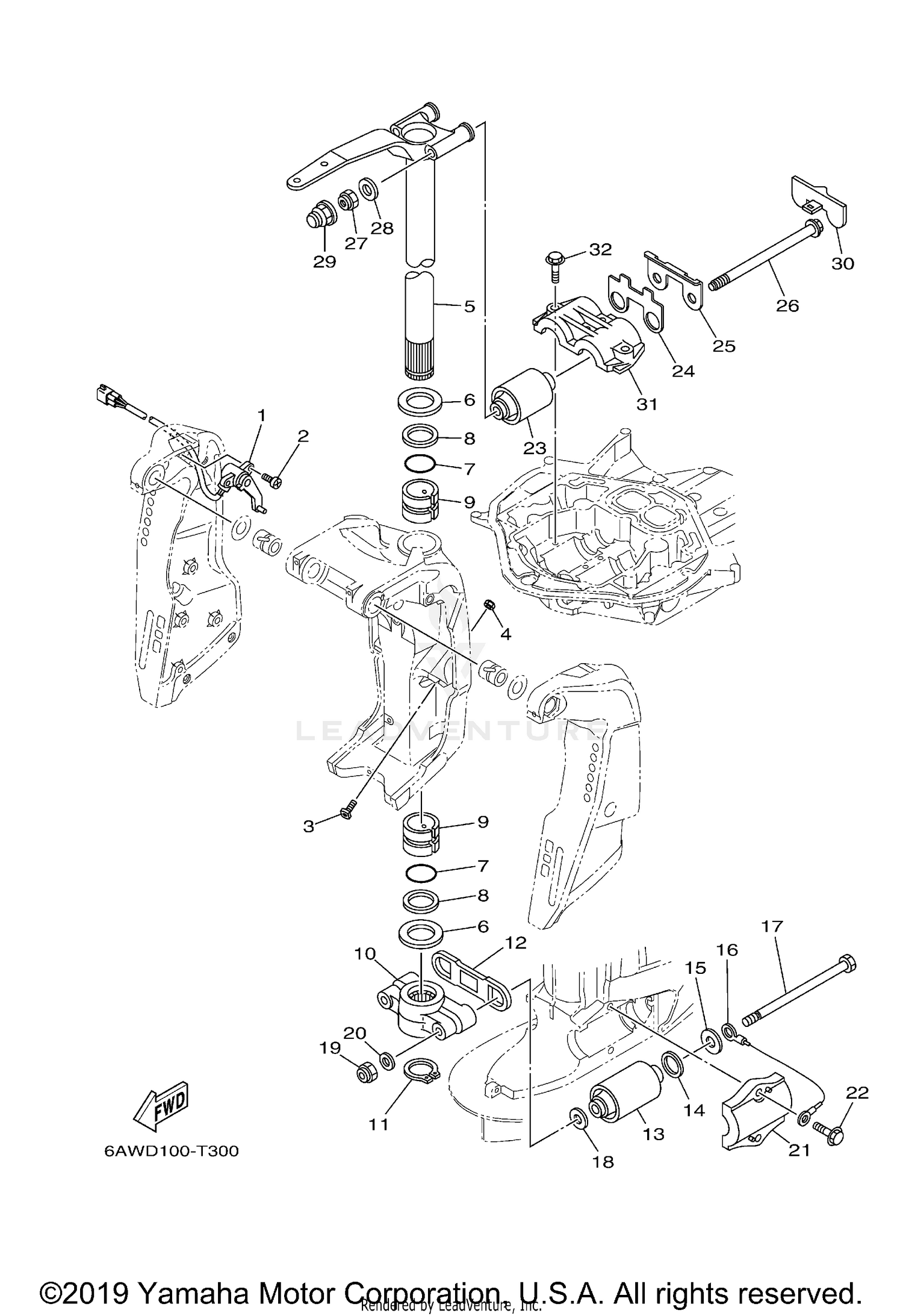

| Ref | Part Number | Description |
|---|
| 1 |
6AW-83672-00-00 |
TRIM SENDER Price: $326.25 |
| 2 |
98580-06016-00 |
SCREW, PAN HEAD This part replaces 97885-06016-00. Price: $3.35 |
| 3 |
6AW-43376-00-00 |
BOLT, THRUST RECEIVER Price: $39.80 |
| 4 |
95780-10300-00 |
NUT, FLANGE Price: $13.00 |
| 5 |
6AW-42510-01-8D |
STEERING BRACKET ASSY Price: $947.65 |
| 6 |
90201-46008-00 |
WASHER, PLATE Price: $7.45 |
| 7 |
93210-43001-00 |
O-RING Price: $3.55 |
| 8 |
90202-45001-00 |
WASHER, PLATE Price: $4.40 |
| 9 |
90386-45002-00 |
BUSH Price: $19.35 |
| 10 |
6AW-44551-00-CA |
HOUSING, LOWER MOUNT RUBBER 1 Price: $401.70 |
| 11 |
93410-44087-00 |
CIRCLIP Price: $11.40 |
| 12 |
6AW-44575-01-00 |
GROMMET This part replaces 6AW-44575-00-00. Price: $17.50 |
| 13 |
6AW-44555-00-00 |
MOUNT DAMPER, LOWER SIDE Price: $169.65 |
| 14 |
90202-32M19-00 |
WASHER, PLATE Price: $10.40 |
| 15 |
90201-16016-00 |
WASHER, PLATE Price: $14.30 |
| 16 |
6AW-82149-00-00 |
WIRE, LEAD 3 Price: $11.70 |
| 17 |
90101-14004-00 |
BOLT Price: $29.95 |
| 18 |
90201-15M58-00 |
WASHER, PLATE Price: $12.70 |
| 19 |
90185-14M00-00 |
NUT, SELF-LOCKING Price: $18.45 |
| 20 |
92990-14600-00 |
WASHER This part replaces 92995-14600-00. Price: $7.20 |
| 21 |
6AW-44552-00-CA |
HOUSING, LOWER MOUNT RUBBER 2 Price: $81.95 |
| 22 |
90119-10024-00 |
BOLT, WITH WASHER Price: $10.40 |
| 23 |
6AW-44514-01-00 |
MOUNT DAMPER, UPPER SIDE Price: $115.45 |
| 24 |
6AW-44532-00-00 |
STOPPER, UPPER MOUNT Price: $24.05 |
| 25 |
6AW-44526-00-00 |
PLATE Price: $93.35 |
| 26 |
90105-16003-00 |
BOLT, FLANGE Price: $97.25 |
| 27 |
90185-16008-00 |
NUT, SELF-LOCKING Price: $35.65 |
| 28 |
90201-16030-00 |
WASHER, PLATE Price: $7.30 |
| 29 |
6AW-44194-00-00 |
CAP Price: $12.35 |
| 30 |
6AW-44533-00-00 |
DAMPER, UPPER MOUNT RUBBER Price: $24.45 |
| 31 |
6AW-44511-01-CA |
COVER, UPPER MOUNT Price: $71.45 |
