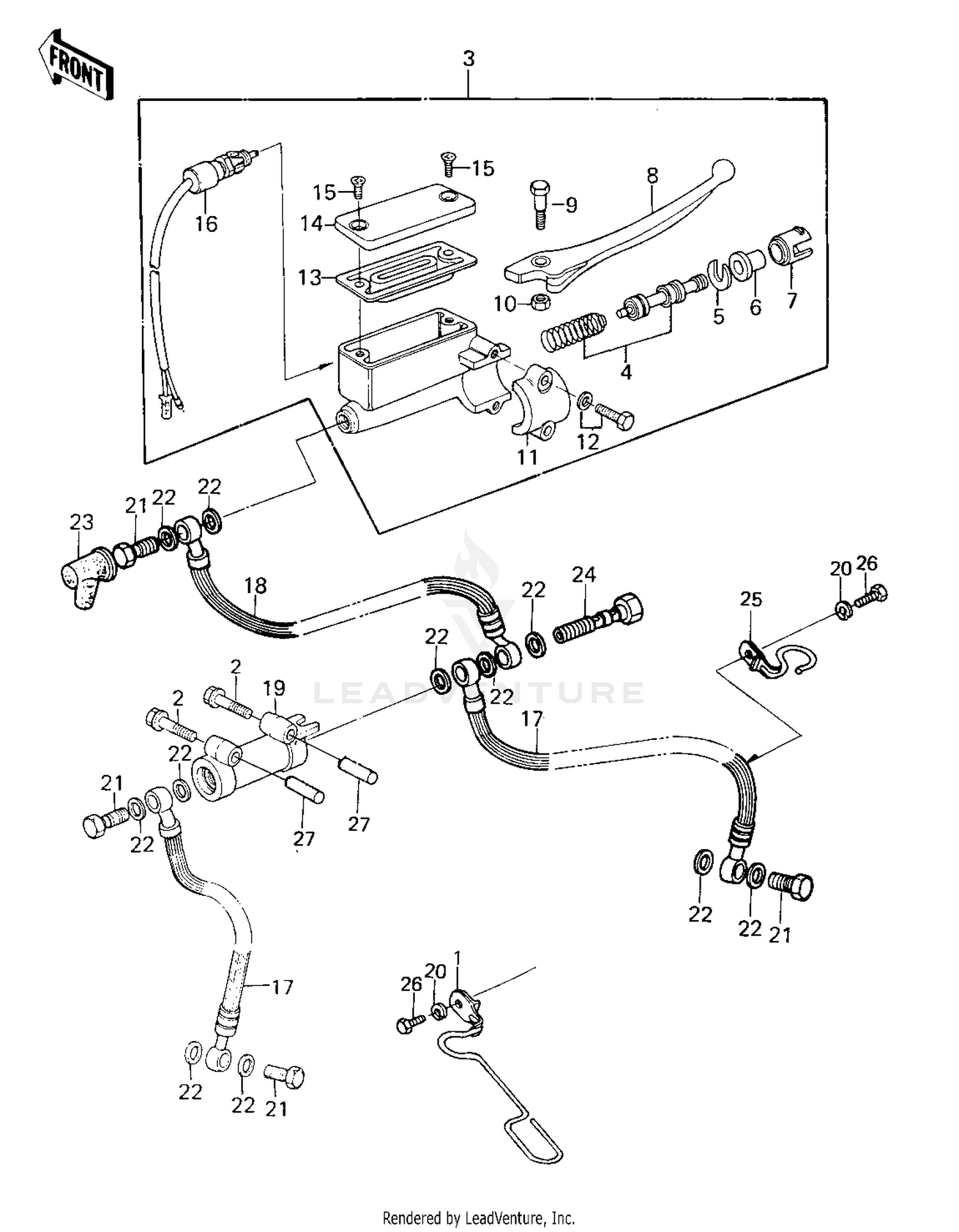

| Ref | Part Number | Description |
|---|
| 1 |
92037-1116 |
CLAMP,CABLE Price: $24.54 |
| 2 |
92002-1140 |
BOLT,6X65 This part replaces 130G0665. Price: $4.86 |
| 3 |
43015-1032 |
CYLINDER ASSY,FRONT Price: $535.27 |
| 4 |
43020-1023 |
PISTON-COMP-BRAKE Price: $95.02 |
| 5 |
43022-1001 |
STOPER,PISTON Price: $4.71 |
| 6 |
49016-1010 |
DUST COVER Price: $13.20 |
| 7 |
14008-1007 |
LINER,PISTON Price: $9.81 |
| 8 |
46092-1004 |
LEVER,FRONT BRAKE Price: $40.55 |
| 9 |
92001-1056 |
BOLT,CLUTCH LEV FITT Price: $14.96 |
| 10 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 11 |
43034-1001 |
HOLDER,MASTER CYLINDR Price: $35.11 |
| 12 |
43033-003 |
BOLT,HEX HEAD,6X25 Price: $4.75 |
| 13 |
43028-1008 |
DIAPHRAGM Price: $36.57 |
| 14 |
43026-1006 |
CAP,OIL CUP Price: $78.23 |
| 15 |
92001-1055 |
SCREW,COUNTERSUNK HED Price: $5.84 |
| 16 |
27010-1028 |
SWITCH,BRAKE Price: $33.48 |
| 17 |
43059-1030 |
HOSE,BRAKE Price: $104.63 |
| 18 |
43059-1538 |
HOSE-BRAKE Price: $101.58 |
| 19 |
43061-1002 |
JOINT,FR BRAKE HOSE Price: $72.14 |
| 20 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 21 |
92153-0627 |
BOLT,OIL,L=23 This part replaces 92002-1888. Price: $5.48 |
| 22 |
49091-0001 |
WASHER-SEAL,10.1X14.5X1.5 This part replaces 43067-001. Price: $2.15 |
| 23 |
49006-1041 |
BOOT,DUST Price: $11.49 |
| 24 |
92153-0628 |
BOLT,OIL,L=37 This part replaces 92002-1909. Price: $11.83 |
| 25 |
92037-1054 |
CLAMP,FRNT BRK HOSE Price: $6.66 |
| 26 |
112BA0612 |
BOLT-UPSET This part replaces 112G0612. Price: $1.49 |
