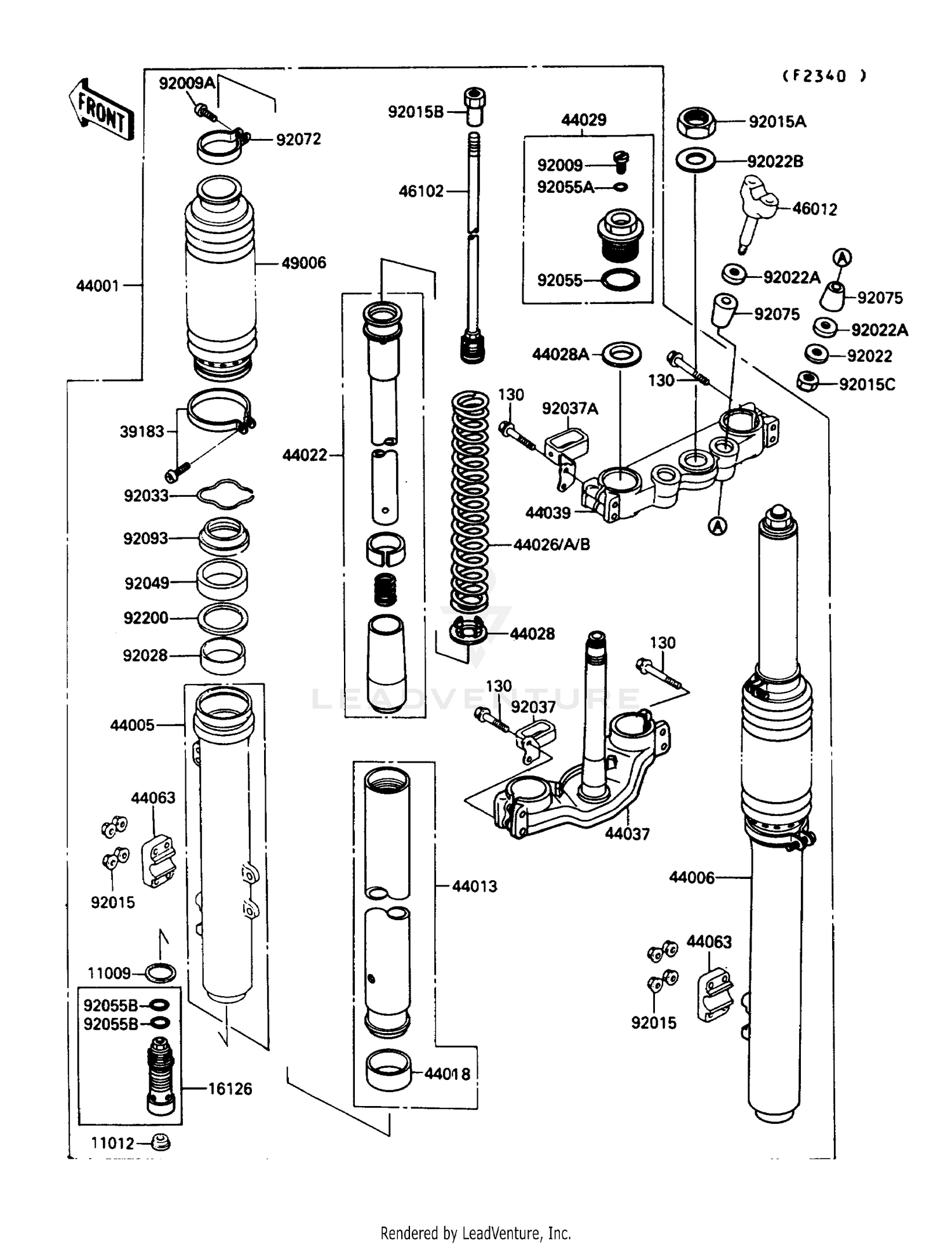

| Ref | Part Number | Description |
|---|
| 11009 |
11009-1791 |
GASKET Price: $5.05 |
| 11012 |
11012-1381 |
CAP,FORK CYLINDER Price: $6.11 |
| 16126 |
16126-1220 |
VALVE Price: $107.92 |
| 39183 |
39183-1056 |
BAND-ASSY,BOOT Price: $8.33 |
| 44001 |
44001-1728 |
FORK-FRONT Price: $1,829.55 |
| 44005 |
44005-1289 |
PIPE-LEFT FORK OUTER Price: $394.74 |
| 44006 |
44006-1286 |
PIPE-RIGHT FORK OUTER Price: $302.25 |
| 44013 |
44013-1290 |
PIPE-FORK INNER Price: $376.15 |
| 44018 |
44018-1055 |
PISTON-FORK,INNER PIP Price: $28.52 |
| 44022 |
44022-1237 |
CYLINDER-FORK Price: $177.80 |
| 44026A |
44026-1421 |
SPRING-FRONT FORK,K=0 Price: $98.13 |
| 44028 |
44028-1066 |
GUIDE-FORK SPRING Price: $7.98 |
| 44028A |
44028-1067 |
GUIDE-FORK SPRING Price: $6.73 |
| 44029 |
44029-1138 |
SEAT-FORK SPRING Price: $88.76 |
| 44037 |
44037-1257 |
HOLDER-FORK UNDER Price: $536.47 |
| 44039 |
44039-1192 |
HOLDER-FORK UPPER Price: $181.00 |
| 44063 |
44063-1056 |
HOLDER-FRONT AXLE Price: $55.31 |
| 46012 |
46012-1192 |
HOLDER-HANDLE,LWR Price: $40.60 |
| 46102 |
46102-1267 |
ROD,FORK Price: $151.08 |
| 49006 |
49006-1256 |
BOOT,FORK Price: $77.63 |
| 92009 |
92009-1568 |
SCREW Price: $7.21 |
| 92009A |
92009-1573 |
SCREW,3.5X10 Price: $3.95 |
| 92015 |
92210-0630 |
NUT,FLANGED,6MM This part replaces 92015-1078. Price: $2.00 |
| 92015A |
92210-1521 |
NUT,STEERING STEM,22MM This part replaces 92015-1653. Price: $16.69 |
| 92015B |
92015-1776 |
NUT Price: $18.77 |
| 92015C |
92210-1184 |
NUT,LOCK,10MM This part replaces 92019-021. Price: $6.11 |
| 92022 |
92022-1088 |
WASHER,10.2X28X2 Price: $4.69 |
| 92022A |
92022-1737 |
WASHER Price: $5.52 |
| 92022B |
92022-1873 |
WASHER,STEERING STEM Price: $7.45 |
| 92028 |
92028-1570 |
BUSHING Price: $15.18 |
| 92033 |
92033-1264 |
RING-SNAP Price: $6.10 |
| 92037 |
92037-1627 |
CLAMP Price: $27.70 |
| 92037A |
92037-1628 |
CLAMP Price: $19.52 |
| 92049 |
92049-1341 |
SEAL-OIL Price: $30.88 |
| 92055A |
92055-1441 |
RING-O,2.8X6.6X1.9 Price: $2.93 |
| 92055B |
92055-1462 |
RING-O Price: $3.95 |
| 92072 |
92072-1247 |
BAND Price: $7.34 |
| 92075 |
92075-1776 |
DAMPER Price: $8.76 |
| 92093 |
92093-1281 |
SEAL Price: $27.26 |
| 92200 |
92200-1006 |
WASHER Price: $11.91 |
