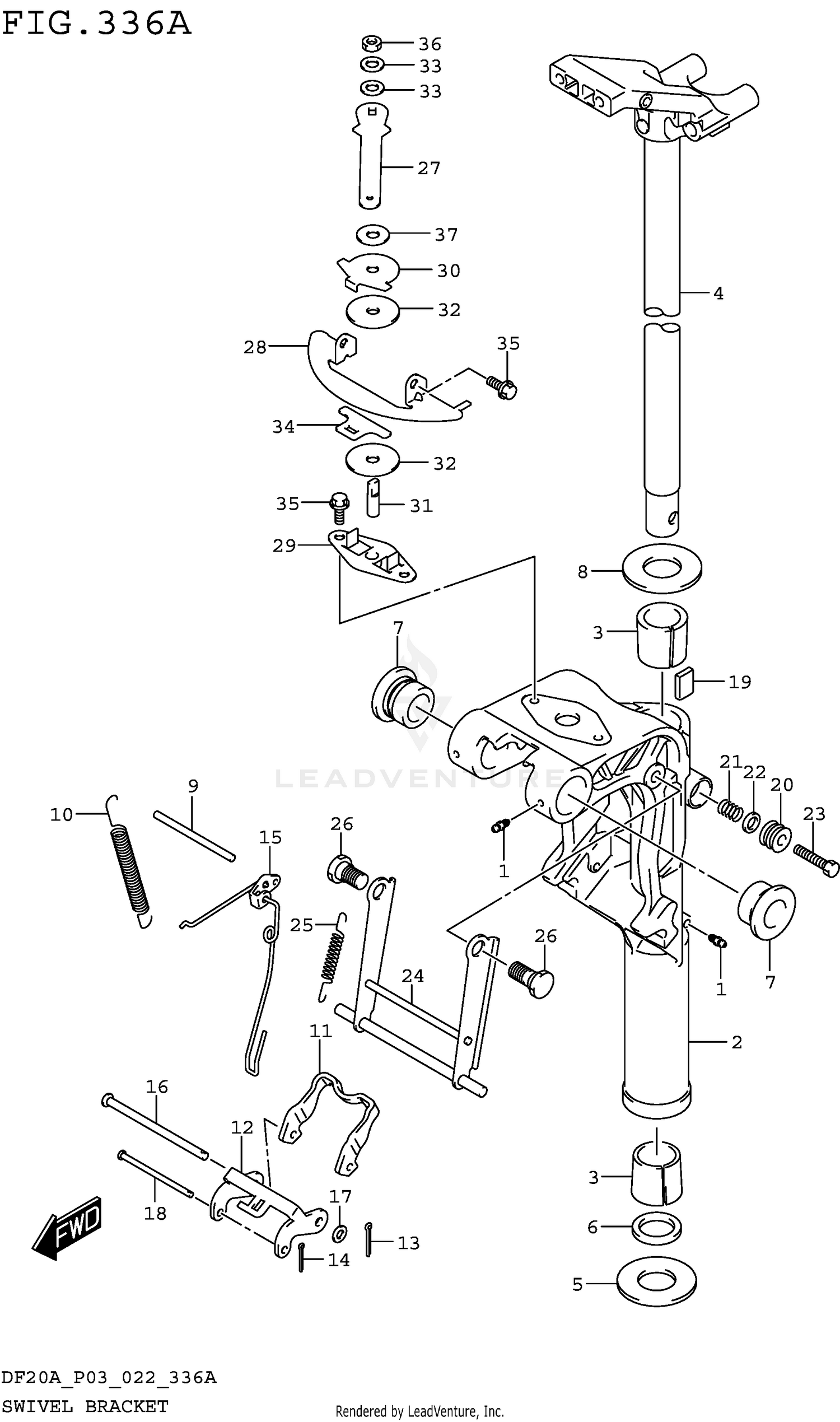

SWIVEL BRACKET (DF9.9B DF15A DF20A)
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22511-99011 | NIPPLE GREASE Price: Call Us |
| 3 | 43711-99J00 | BUSH STEERING Price: Call Us |
| 5 | 09160-27012 | WASHER (27.5X47X1) Price: Call Us |
| 6 | 09282-27002 | OIL SEAL (26X39X5) Price: Call Us |
| 7 | 43211-87JL0 | BUSH SWIVEL BRACKET Price: Call Us |
| 8 | 09160-27012 | WASHER (27.5X47X1) Price: Call Us |
| 9 | 41225-89L00 | PIN RELEASE ARM Price: Call Us |
| 10 | 45212-89L00 | SPRING REVERSE LOCK ARM Price: Call Us |
| 11 | 45231-89L00 | ARM REVERSE LOCK Price: Call Us |
| 12 | 45241-89L00 | LINK REVERSE LOCK ARM Price: Call Us |
| 13 | 09204-01002 | PIN Price: Call Us |
| 14 | 45247-99J00 | PIN REV LOCK ARM COTTER Price: Call Us |
| 15 | 45250-89L03 | LINK RELEASE Price: Call Us |
| 16 | 09200-06061 | PIN (L:95.5) Price: Call Us |
| 17 | 09160-06082 | WASHER (6.5X13X1.0) Price: Call Us |
| 18 | 09200-05014 | PIN (L:73) Price: Call Us |
| 19 | 43411-939L0 | PLATE STEERING ADJUSTER Price: Call Us |
| 20 | 43412-93901 | COVER STEERING ADJUSTER Price: Call Us |
| 21 | 29440-93J00 | SPRING STEERING ADJUSTER Price: Call Us |
| 22 | 09160-08082 | WASHER (8.5X16X1.2) Price: Call Us |
| 24 | 45710-89L10 | ARM SHALLOW DRIVE Price: Call Us |
| 26 | 09111-10067 | BOLT (10X20.5) Price: Call Us |
| 27 | 43411-89L00 | LEVER STEERING ADJUSTER Price: Call Us |
| 28 | 43415-89L01 | PLATE STRG ADJUSTER Price: Call Us |
| 29 | 43420-89L00 | PLATE STRG ADJ FRICTION Price: Call Us |
| 30 | 43425-89L00 | PLATE STRG ADJ UPPER Price: Call Us |
| 31 | 43512-89L00 | SHAFT STRG ADJ THREAD Price: Call Us |
| 33 | 43516-89J00 | WASHER STEERING ADJUSTER Price: Call Us |
| 34 | 43517-89L00 | SPACER STEERING ADJUSTER Price: Call Us |
| 35 | 09116-06225 | BOLT (6X16) Price: Call Us |
| 36 | 09159-08L02 | NUT Price: Call Us |
