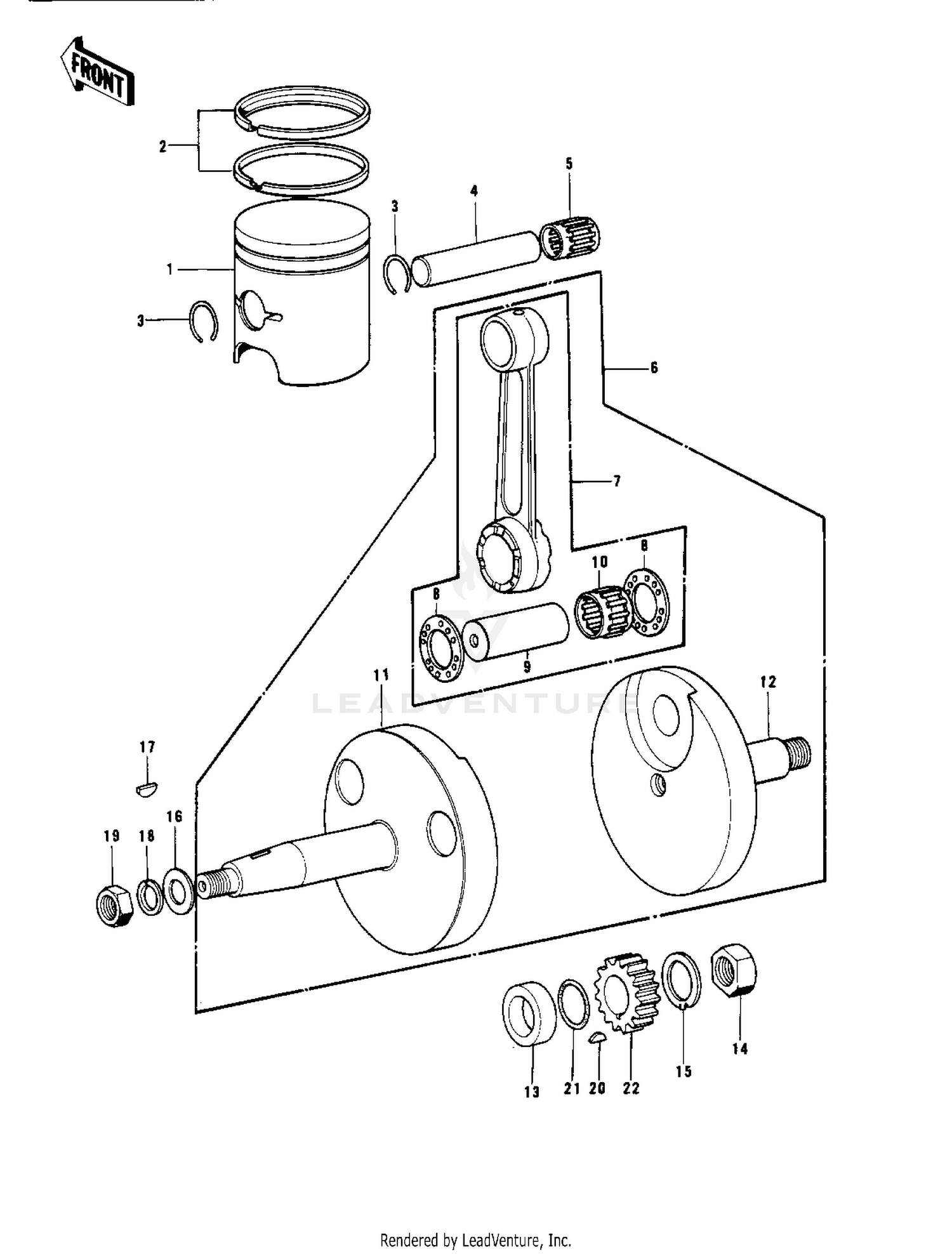

| Ref | Part Number | Description |
|---|
| 1 |
13001-076 |
PISTON,STD Price: $128.31 |
| 1 |
13029-076 |
PISTON,0.020" O/S Price: $129.53 |
| 2 |
13008-057 |
RING SET,STD Price: $105.47 |
| 2 |
13025-060 |
RING SET,0.020" O/S Price: $91.93 |
| 3 |
92036-024 |
CIRCRIP,PISTON PIN Price: $3.21 |
| 4 |
13002-030 |
PIN-PISTON Price: $12.79 |
| 5 |
13033-1055 |
BEARING-SMALL END,KTV Price: $30.91 |
| 6 |
13036-042 |
CRANKSHAFT ASSY Price: $500.97 |
| 7 |
13044-027 |
CONNECTING ROD SET Price: $180.94 |
| 8 |
92026-1346 |
SPACER This part replaces 92026-093. Price: $26.41 |
| 9 |
13035-032 |
PIN,CRANK Price: $35.57 |
| 10 |
13034-035 |
BEARING,BIG END Price: $30.21 |
| 11 |
13037-054 |
CRANKSHAFT,L.H Price: $105.79 |
| 12 |
13038-050 |
CRANKSHAFT,R.H Price: $151.07 |
| 13 |
92027-190 |
COLLAR,CRANKSHAFT Price: $17.07 |
| 14 |
92015-019 |
NUT 18MM Price: $7.22 |
| 15 |
92024-015 |
WASHER LOCK 18MM Price: $4.91 |
| 16 |
92022-172 |
WASHER-PLAIN,14MM Price: $11.10 |
| 17 |
92038-001 |
KEY,WOODRUFF Price: $4.96 |
| 18 |
461F1400 |
WASHER SPRING 14MM Price: $0.43 |
| 19 |
92015-043 |
NUT 14MM Price: $7.50 |
| 20 |
510A5100 |
KEY-WOODRUFF Price: $2.70 |
