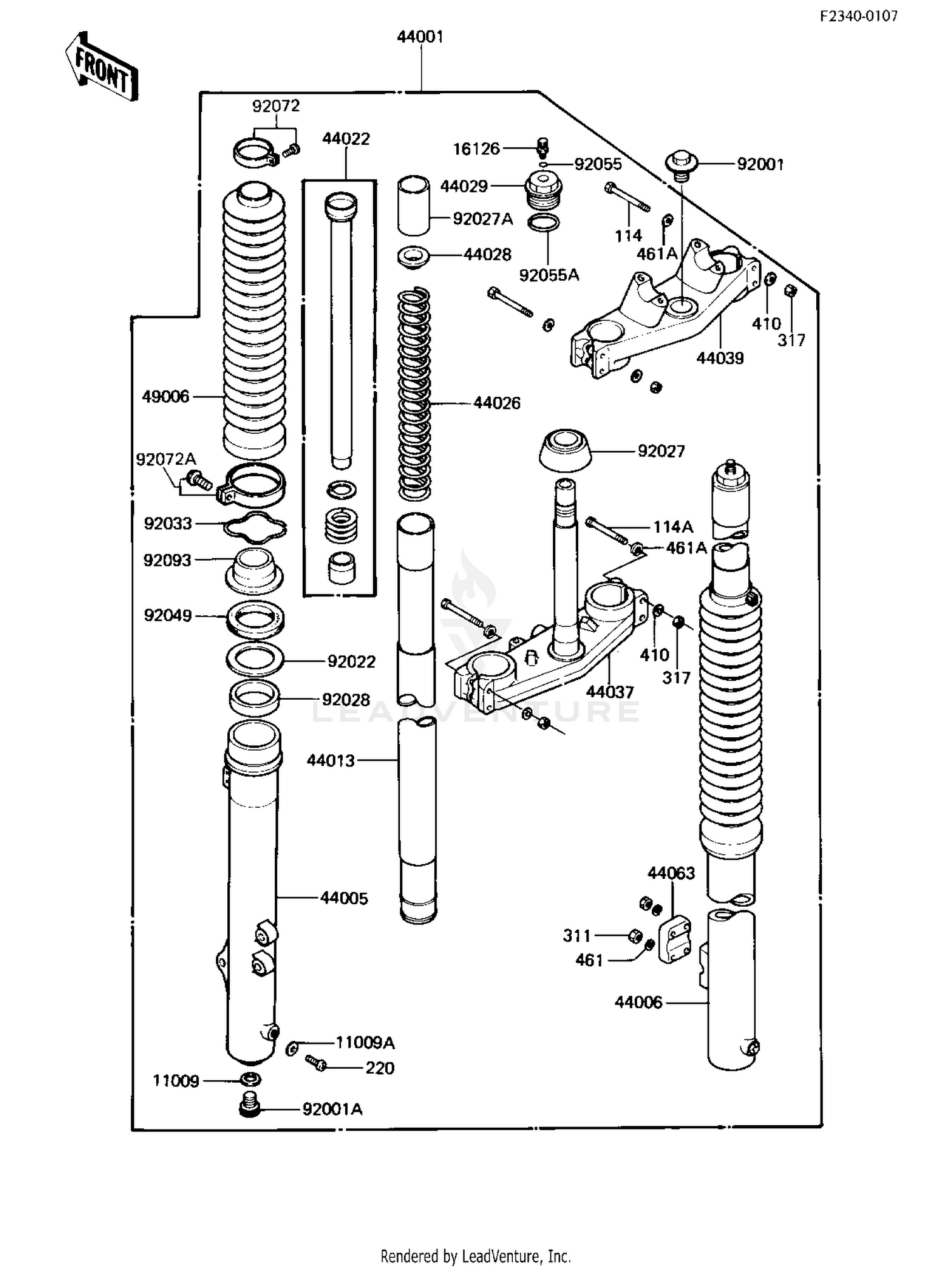

| Ref | Part Number | Description |
|---|
| 114 |
114G0850 |
BOLT HEX HEAD 8X50 Price: $5.06 |
| 114A |
115G0855 |
BOLT-SMALL-UPSET,8X55 This part replaces 114G0855. Price: $6.13 |
| 220 |
220AA0408 |
SCREW-PAN-CROS,4X8 This part replaces 220B0408. Price: $0.68 |
| 311 |
311BA0600 |
NUT-HEX,6MM This part replaces 311G0600. Price: $2.23 |
| 317 |
317BA0800 |
NUT-HEX-SMALL,8MM This part replaces 317G0800. Price: $1.67 |
| 410 |
410AA0800 |
WASHER-PLAIN-SMALL,8MM This part replaces 410B0800. Price: $0.96 |
| 461 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 11009 |
11009-1553 |
GASKET,FORK DRAIN PLUG Price: $5.17 |
| 11009A |
44045-002 |
GASKET,FORK DRAIN PLUG Price: $5.18 |
| 16126 |
16126-1048 |
VALVE,AIR FRONT FORK Price: $17.25 |
| 44001 |
44001-1328 |
FORK-FRONT Price: $1,071.18 |
| 44005 |
44005-1084 |
TUBE,LH,FORK OUTER Price: $309.64 |
| 44006 |
44006-1084 |
TUBE,RH,FORK OUTER Price: $283.26 |
| 44013 |
44013-1082 |
PIPE-FORK INNER Price: $261.04 |
| 44022 |
44022-1075 |
CYLINDER-FORK Price: $86.06 |
| 44026 |
44026-1131 |
SPRING-FRONT FORK Price: $38.47 |
| 44028 |
44028-1010 |
GUIDE-FORK SPRING Price: $11.30 |
| 44029 |
44029-1031 |
SEAT-FORK SPRING Price: $57.26 |
| 44037 |
44037-1084 |
HOLDER-FORK UNDER Price: $438.68 |
| 44039 |
44039-1060 |
HOLDER-FORK UPPER Price: $205.85 |
| 44063 |
44063-1008 |
HOLDER-FRONT AXLE Price: $53.61 |
| 49006 |
49006-1081 |
BOOT Price: $85.65 |
| 92001 |
92001-1520 |
BOLT Price: $19.67 |
| 92001A |
92001-1533 |
BOLT Price: $13.72 |
| 92022 |
92022-1299 |
WASHER Price: $8.58 |
| 92027 |
92027-1427 |
COLLAR,FRONT FORK Price: $78.19 |
| 92027A |
92027-1449 |
COLLAR Price: $9.49 |
| 92028 |
92028-1581 |
BUSHING This part replaces 92028-1145. Price: $21.80 |
| 92033 |
92033-1077 |
RING-SNAP Price: $4.96 |
| 92049 |
92049-1295 |
SEAL-OIL,FORK OUTER T Price: $22.14 |
| 92055 |
670B1506 |
O RING,6MM This part replaces 92055-1094. Price: $1.28 |
| 92055A |
92055-1123 |
RING-O Price: $6.22 |
| 92072 |
92072-1078 |
BAND Price: $11.16 |
| 92072A |
92072-1081 |
BAND Price: $11.77 |
| 92093 |
92093-1086 |
SEAL,FORK DUST Price: $19.48 |
