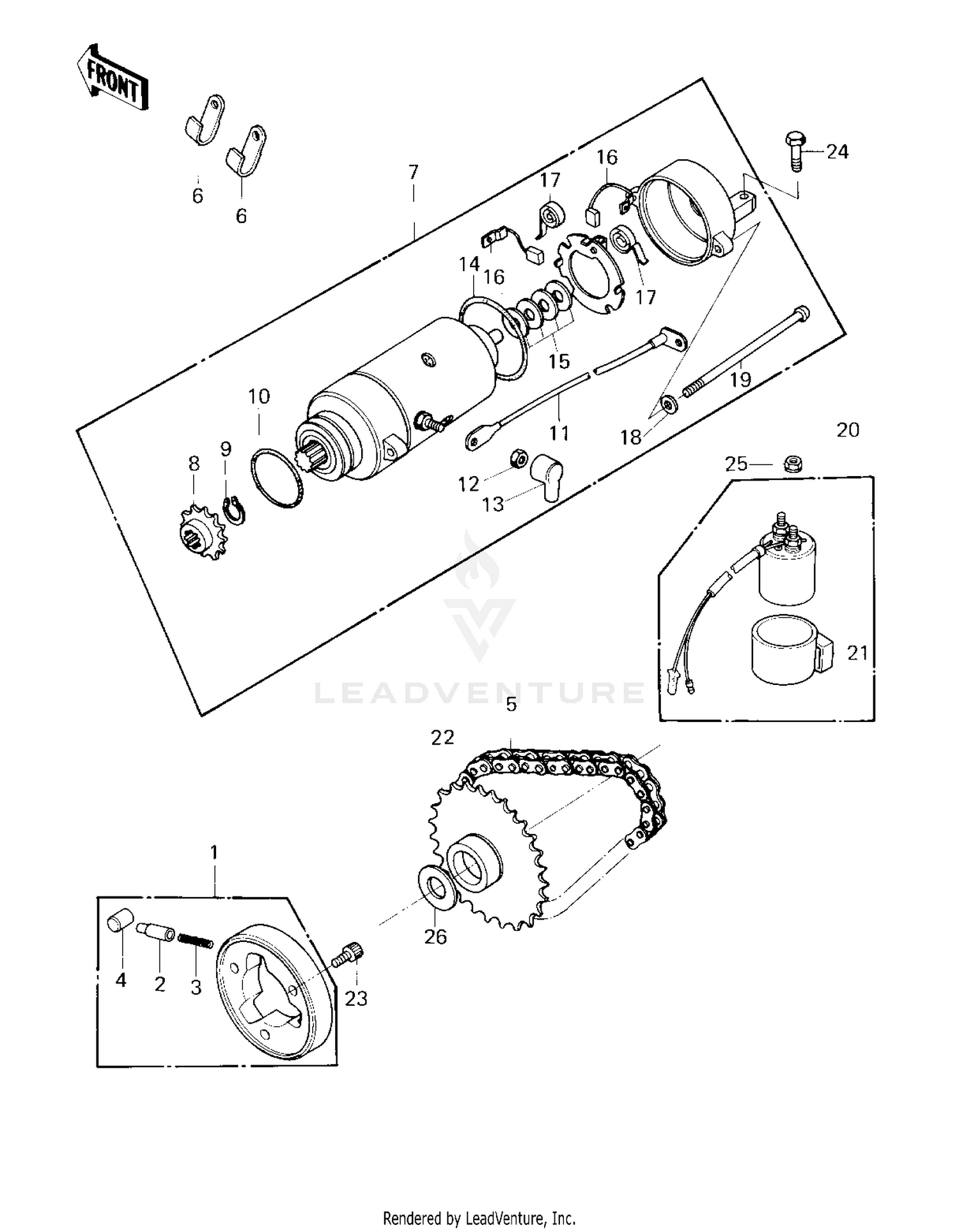

| Ref | Part Number | Description |
|---|
| 1 |
13193-1001 |
CLUTCH ASSY,STARTER Price: $225.54 |
| 2 |
92043-087 |
PIN Price: $12.76 |
| 3 |
92081-110 |
SPRING Price: $4.76 |
| 4 |
92122-004 |
ROLLER Price: $11.07 |
| 5 |
21070-010 |
CHAIN,DYNAMO Price: $99.93 |
| 6 |
21126-008 |
CLAMP,WIRING HARNESS Price: $4.73 |
| 7 |
21163-1234 |
STARTER-ELECTRIC This part replaces 21163-1020. Price: $691.99 |
| 8 |
21053-003 |
SPROCKET,STARTER MOT Price: $33.59 |
| 9 |
92033-1326 |
RING-SNAP This part replaces 92033-034. Price: $10.44 |
| 10 |
92055-1669 |
RING-O This part replaces 21027-008. Price: $12.48 |
| 11 |
26010-045 |
WIRE,STARTER MOTOR LD Price: $34.67 |
| 12 |
312AA0600 |
NUT-HEX This part replaces 312B0600. Price: $0.73 |
| 13 |
21017-017 |
GROMMET,STARTER TERMINAL Price: $9.43 |
| 15 |
21025-011 |
WASHER,9.1X18X0.2 Price: $6.22 |
| 16 |
21039-003 |
CARBON BRUSH Price: $40.76 |
| 17 |
21040-003 |
SPRING,CARBON BRUSH Price: $8.56 |
| 18 |
461DA0600 |
WASHER-SPRING,6MM This part replaces 461F0600. Price: $0.71 |
| 19 |
21099-055 |
UNAVAILABLE IN PRICE BOOK Price: Call Us |
| 20 |
21164-005 |
SWITCH ASSY,MAGNETIC Price: $159.50 |
| 21 |
92161-1722 |
DAMPER,MAGNETIC SWITCH This part replaces 21064-002. Price: $19.64 |
| 22 |
21170-003 |
GEAR,STARTER CLUTCH Price: $333.60 |
| 23 |
120CA0816 |
BOLT-SOCKET,8X16 This part replaces 120P0816. Price: $4.45 |
| 24 |
130BA0625 |
BOLT-FLANGED,6X25 This part replaces 130G0625. Price: $1.20 |
| 25 |
92017-014 |
NUT,LOCK 6MM Price: $7.51 |
