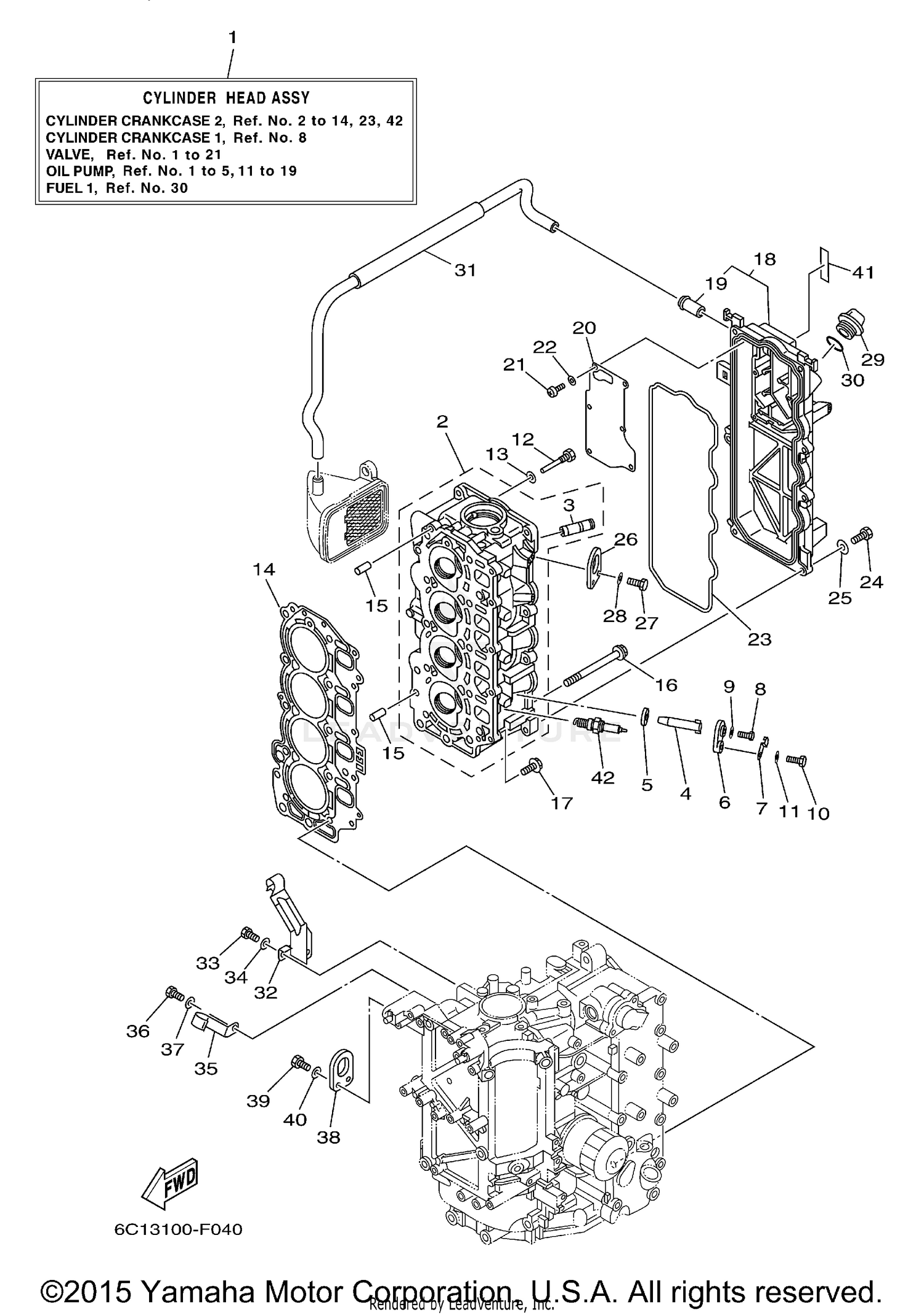

| Ref | Part Number | Description |
|---|
| 1 |
6C5-W009A-14-9S |
CYLINDER HEAD COMPLETE This part replaces 6C5-W009A-11-9S. Price: $852.60 |
| 2 |
99999-04131-00 |
HEAD, CYLINDER 1 This part replaces 6C5-11111-00-9S. Price: $1,486.15 |
| 4 |
62Y-11325-00-00 |
ANODE Price: $11.40 |
| 5 |
66M-11328-01-00 |
GROMMET, ANODE This part replaces 66M-11328-00-00. Price: $1.35 |
| 6 |
66M-11327-00-94 |
COVER, ANODE Price: $10.70 |
| 7 |
66M-12535-00-00 |
PLATE Price: $6.25 |
| 8 |
97095-05012-00 |
BOLT Price: $1.75 |
| 9 |
92990-05600-00 |
WASHER, PLATE This part replaces 92995-05600-00. Price: $0.80 |
| 10 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 11 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 12 |
90109-06M65-00 |
BOLT Price: $32.99 |
| 13 |
90430-06014-00 |
GASKET Price: $8.60 |
| 14 |
6C5-11181-01-00 |
GASKET, CYLINDER HEAD 1 Price: $68.00 |
| 15 |
99530-08012-00 |
PIN, DOWEL Price: $6.60 |
| 16 |
90105-09005-00 |
BOLT, FLANGE Price: $8.60 |
| 17 |
90119-06MA3-00 |
BOLT, WITH WASHER Price: $3.20 |
| 18 |
6C5-11191-02-9S |
COVER, CYLINDER HEAD 1 This part replaces 6C5-11191-01-9S. Price: $124.05 |
| 19 |
62Y-14485-00-00 |
PIPE, JOINT Price: $16.60 |
| 20 |
6C5-11168-00-00 |
COVER, BREATHER Price: $6.15 |
| 21 |
98507-04010-00 |
SCREW, PAN HEAD Price: $3.55 |
| 22 |
92907-04600-00 |
WASHER Price: $1.85 |
| 23 |
62Y-11356-00-00 |
SEAL, CYLINDER 2 Price: $18.75 |
| 24 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 25 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 26 |
62Y-11119-00-00 |
HANGER, ENGINE Price: $13.25 |
| 27 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 28 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 29 |
6G8-15363-00-00 |
PLUG, OIL Price: $13.50 |
| 30 |
93210-24235-00 |
O-RING This part replaces 93210-24M79-00. Price: $8.49 |
| 31 |
6C5-1531A-01-00 |
HOSE, BREATHER 1 Price: $69.65 |
| 32 |
6C5-15378-00-00 |
HOLDER Price: $24.75 |
| 33 |
97D95-06014-00 |
BOLT, HEXAGON DEEP This part replaces 97095-06014-00. Price: $1.55 |
| 34 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 35 |
6C5-15378-11-00 |
HOLDER Price: $13.10 |
| 36 |
97D95-06014-00 |
BOLT, HEXAGON DEEP This part replaces 97095-06014-00. Price: $1.55 |
| 37 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 38 |
62Y-11119-00-00 |
HANGER, ENGINE Price: $13.25 |
| 39 |
97080-06020-00 |
BOLT This part replaces 97095-06020-00. Price: $4.50 |
| 40 |
92990-06600-00 |
WASHER, PLATE This part replaces 92995-06600-00. Price: $2.85 |
| 41 |
62Y-12138-40-00 |
MARK, CAUTION Price: $5.75 |
