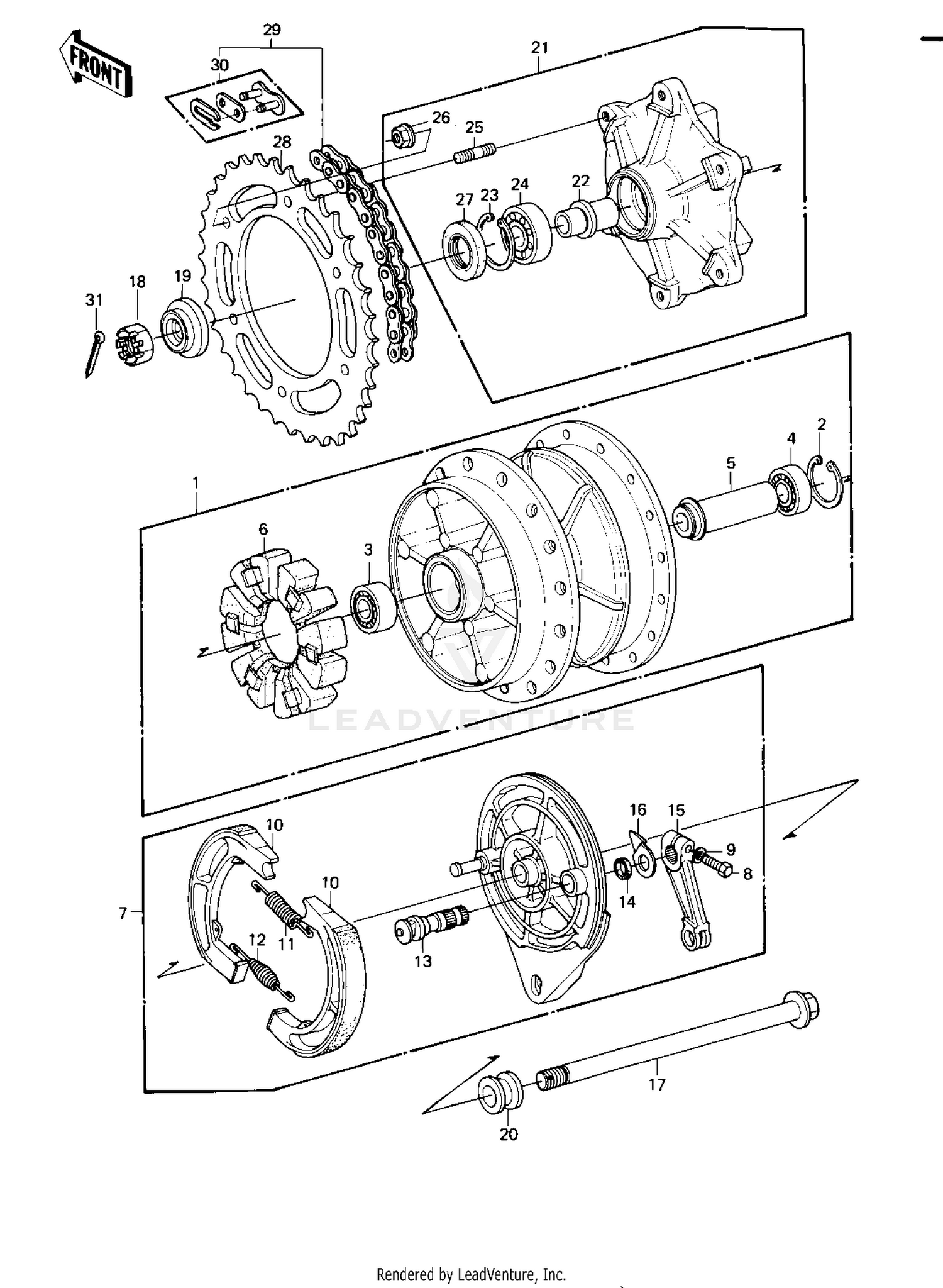

| Ref | Part Number | Description |
|---|
| 1 |
41034-1015 |
DRUM-ASSY,RR BRK Price: $304.36 |
| 2 |
481J3500 |
CIRCLIP-TYPE-C,35MM Price: $1.96 |
| 3 |
601B6202 |
BEARING-BALL,#6202C3 Price: $8.64 |
| 4 |
601B6202UG |
BEARING-BALL,#6202UG This part replaces 601B6202U. Price: $12.47 |
| 5 |
92027-1099 |
COLLER,REAR BRAKE Price: $20.44 |
| 6 |
92075-1068 |
DAMPER,SHOCK,RR HUB Price: $47.86 |
| 7 |
41035-1325 |
PANEL-ASSY This part replaces 41035-1017. Price: $315.55 |
| 8 |
112BA0625 |
BOLT-UPSET,6X25 This part replaces 112G0625. Price: $3.72 |
| 9 |
410AA0600 |
WASHER-PLAIN-SMALL This part replaces 410B0600. Price: $1.31 |
| 10 |
41048-1084 |
SHOE-BRAKE This part replaces 41048-1012. Price: $29.87 |
| 11 |
92081-1766 |
SPRING,BRAKE SHOE Price: $8.03 |
| 12 |
92081-1550 |
SPRING,BRAKE SHOE Price: $9.49 |
| 13 |
41050-1011 |
CAM,BRAKE,REAR Price: $39.23 |
| 14 |
41051-001 |
SEAL,BRAKE CAM Price: $4.26 |
| 15 |
41053-1013 |
LEVER,BRAKE CAM,REAR Price: $52.92 |
| 16 |
41085-017 |
INDICATOR,FR BRK SHOE Price: $12.70 |
| 19 |
92027-1100 |
COLLAR,REAR AXLE,L.H Price: $29.20 |
| 20 |
92027-1101 |
COLLAR,REAR AXLE,R.H Price: $8.06 |
| 21 |
42033-1031 |
COUPLING-ASSY,RR HUB This part replaces 42033-1007. Price: $141.32 |
| 22 |
42036-1020 |
SLEEVE,RR HUB COUPLIN Price: $24.60 |
| 23 |
92033-1041 |
RING-SNAP,42MM Price: $6.16 |
| 24 |
601B6004 |
BEARING BALL #6004 Price: $12.47 |
| 25 |
92004-1015 |
STUD,8X17 Price: $4.99 |
| 26 |
92015-1022 |
NUT-8MM Price: $0.48 |
| 27 |
92050-060 |
SEAL-OIL,26X42X8 Price: $18.15 |
| 28 |
42041-1050 |
SPROCKET,REAR,44T Price: $79.16 |
| 29 |
92057-1096 |
CHAIN,DR.EK428SHX116L Price: $129.91 |
| 30 |
92058-1015 |
JOINT-CHAIN Price: $5.20 |
