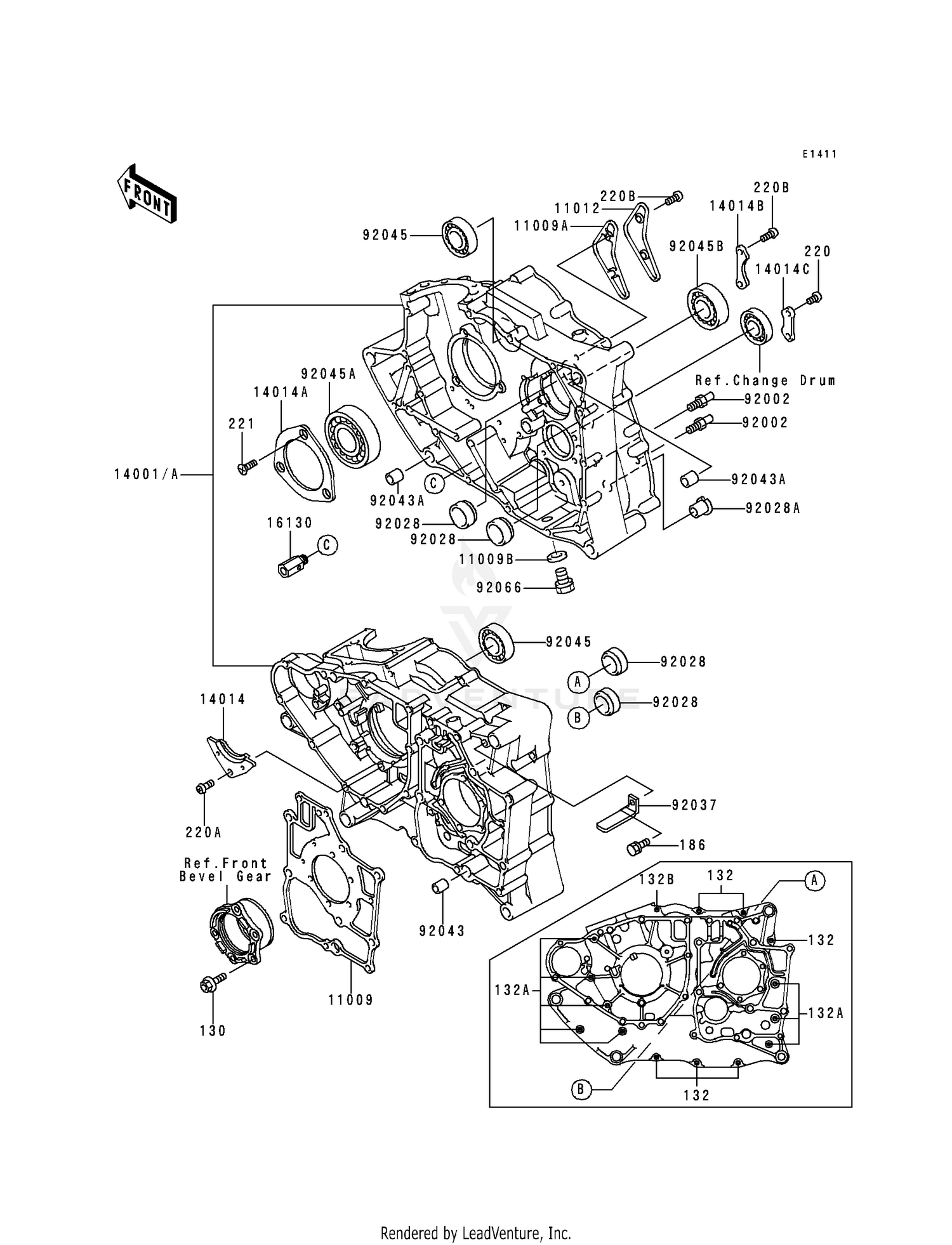

CRANKCASE

CRANKCASE

Parts (28)

RefPart NumberDescription
130 130CA0620 BOLT-FLANGED,6X20 This part replaces 130P0620. Price: $1.70
132 132BD0635 BOLT-FLANGED-SMALL,6X35 This part replaces 132Y0635. Price: $4.12
132A 132BD0665 BOLT-FLANGED-SMALL,6X65 This part replaces 132Y0665. Price: $4.76
132B 132BD0685 BOLT-FLANGED-SMALL This part replaces 132Y0685. Price: $6.25
186 186AA0614 BOLT-UPSET-WP This part replaces 186D0614. Price: $0.97
220 220AA0610 SCREW-PAN-CROS,6X10 This part replaces 220B0610. Price: $3.23
220A 220AA0612 SCREW-PAN-CROS,6X12 This part replaces 220B0612. Price: $1.19
220B 220AA0614 SCREW-PAN-CROS,6X14 This part replaces 220B0614. Price: $1.48
221 221AA0616 SCREW-CSK-CROS,6X16 This part replaces 221B0616. Price: $0.59
11009 11060-1653 GASKET,GEAR CASE This part replaces 11009-1516. Price: $13.93
11009A 11060-1654 GASKET,OIL LINE CAP This part replaces 11009-1517. Price: $4.52
11009B 92065-097 GASKET,12X22X2 Price: $0.74
11012 11012-1443 CAP Price: $9.80
14001A 14001-5324 SET-CRANKCASE This part replaces 14001-5255. Price: $925.70
14014 14014-035 PLATE,POSITIONING Price: $5.24
14014A 14014-1004 PLATE,POSITIONING Price: $11.61
14014B 14014-1069 PLATE-POSITION Price: $6.16
14014C 14014-1070 PLATE-POSITION,CHANGE Price: $7.22
16130 16130-1001 VALVE-ASSY-RELIEF Price: $41.16
92002 92002-1408 BOLT,RETURN SPRING Price: $6.61
92028 92028-132 BUSHING,23X30X13 Price: $38.06
92028A 92028-1386 BUSHING Price: $17.40
92037 92171-0652 CLAMP,L=60 This part replaces 92037-1316. Price: $2.61
92043 92043-0963 PIN,12X14 This part replaces 92042-031. Price: $6.57
92043A 92043-1279 PIN,11.5X14X14 Price: $5.00
92045 92045-1118 BEARING-BALL,6004TMB Price: $23.76
92045A 92045-1172 BEARING-BALL Price: $48.87
92045B 92045-1142 BEARING-BALL,TMB304CCM This part replaces 92045-1173. Price: $40.43
