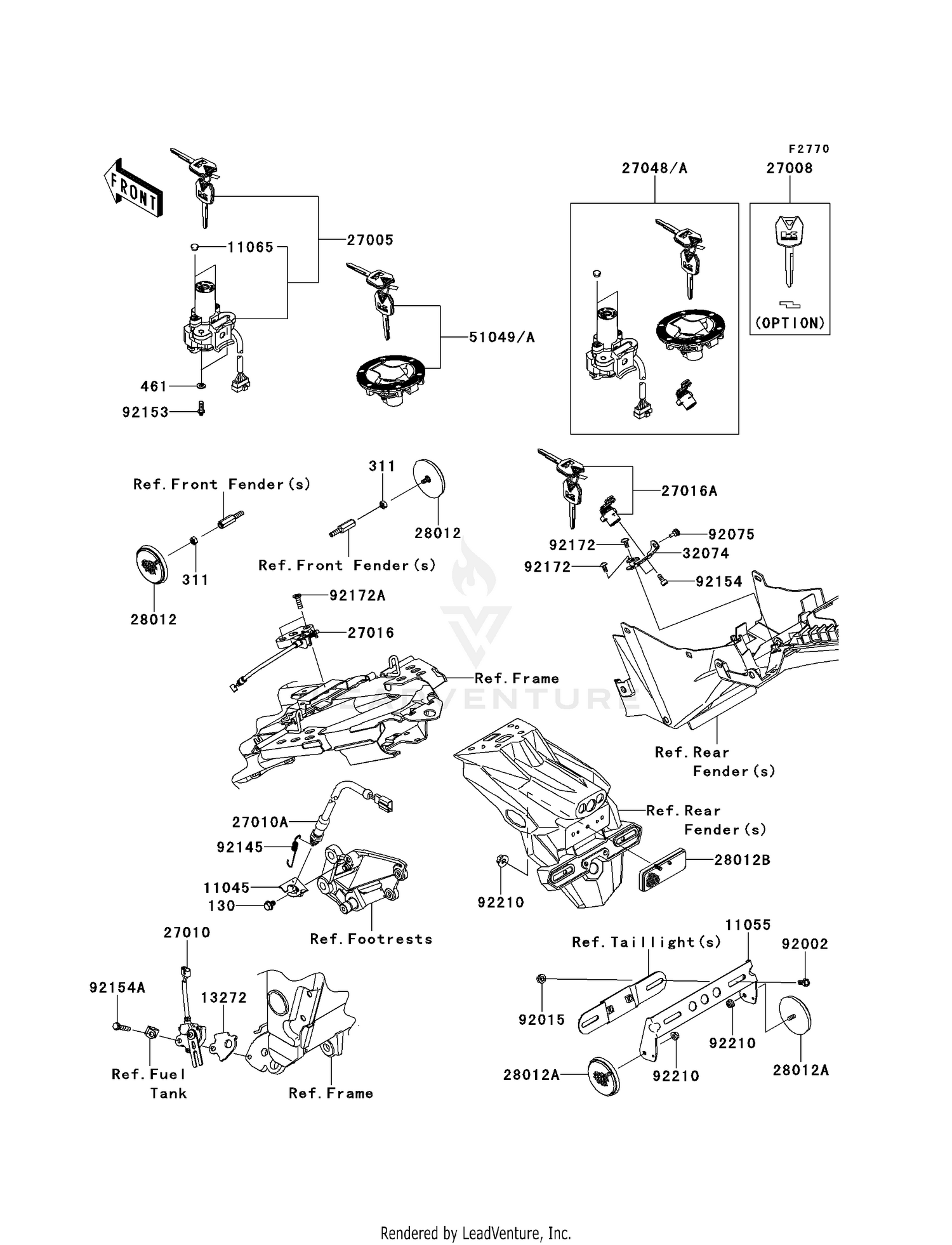

| Ref | Part Number | Description |
|---|
| 130 |
130BA0610 |
BOLT-FLANGED,6X10 Price: $1.20 |
| 311 |
311AB0500 |
NUT-HEX,5MM Price: $0.43 |
| 461 |
461DA0600 |
WASHER-SPRING,6MM Price: $0.71 |
| 11045 |
11045-1641 |
BRACKET,REAR BRAKE SWITCH Price: $8.10 |
| 11055 |
11055-1092 |
BRACKET,REFLECTOR Price: $33.36 |
| 11065 |
11065-0708 |
CAP,IGNITION SWITCH Price: $4.37 |
| 13272 |
13272-1330 |
PLATE Price: $3.71 |
| 27005 |
27005-5144 |
SWITCH-ASSY-IGNITION Price: $174.70 |
| 27010 |
27010-0097 |
SWITCH,SIDE STAND Price: $117.39 |
| 27010A |
27010-0726 |
SWITCH,REAR BRAKE Price: $46.80 |
| 27016 |
27016-0075 |
LOCK-ASSY,SEAT STRIKER Price: $59.26 |
| 27016A |
27016-5378 |
LOCK-ASSY Price: $104.16 |
| 27048 |
27048-5075 |
SWITCH-ASSY This part replaces 27048-5008. Price: $443.73 |
| 28012 |
28012-0001 |
REFLECTOR-REFLEX,FR,SIDE Price: $24.14 |
| 28012A |
28012-0002 |
REFLECTOR-REFLEX Price: $24.14 |
| 28012B |
28012-1077 |
REFLECTOR-REFLEX Price: $23.25 |
| 32074 |
32074-0018 |
BRACKET-LOCK Price: $3.71 |
| 51049A |
51049-5009 |
CAP-TANK,FUEL This part replaces 51049-5007. Price: $187.02 |
| 92002 |
112BA0612 |
BOLT-UPSET This part replaces 92002-1132. Price: $1.49 |
| 92015 |
92015-1367 |
NUT,FLANGED,6MM Price: $3.69 |
| 92075 |
92075-1808 |
DAMPER,6X10X15 Price: $1.39 |
| 92145 |
92145-0683 |
SPRING,BRAKE LAMP SWITCH Price: $3.67 |
| 92153 |
92153-0967 |
BOLT,TORX,6X16 Price: $2.61 |
| 92154 |
92154-0933 |
BOLT,SOCKET,5X12 Price: $1.19 |
| 92154A |
92154-1040 |
BOLT,FLANGED,6X30 Price: $2.67 |
| 92172 |
92172-0262 |
SCREW,TAPPING,5X10 Price: $1.34 |
| 92172A |
92172-0786 |
SCREW,6X20 Price: $0.85 |
