| Ref | Part Number | Description |
|---|
| 1 |
420835065 |
Idle Gear, 34 Teeth This part replaces 420835061. Price: $69.99 |
| 2 |
420835062 |
Idle Gear, 17 Teeth Price: $21.99 |
| 3 |
420835070 |
Water Pump Gear, 18 Teeth Price: $21.99 |
| 4 |
420229302 |
Location Pin 10 M6x50 This part replaces 420229301. Price: $3.29 |
| 5 |
420832660 |
Needle Pin Price: $2.19 |
| 6 |
420827590 |
Thrust Washer Price: $4.09 |
| 7 |
293300117 |
O-Ring Price: $4.49 |
| 8 |
420440234 |
Torx Flange Screw M6 X 25 Price: $3.09 |
| 9 |
420910230 |
Step Collar Price: $69.99 |
| 10 |
420650315 |
Oil Seal Price: $11.99 |
| 11 |
420947430 |
Spacer Ring Price: $2.19 |
| 12 |
420837921 |
Water Pump Shaft Price: $53.99 |
| 13 |
420922805 |
Water Impeller Price: $38.99 |
| 15 |
420430780 |
Gasket Price: $15.49 |
| 16 |
420431290 |
Gasket Price: $15.49 |
| 17 |
420440234 |
Torx Flange Screw M6 X 25 Price: $3.09 |
| 18 |
420230415 |
Seal Washer Price: $1.79 |
| 19 |
420922141 |
Water Manifold Price: $41.99 |
| 20 |
224061121 |
Flat Washer Price: $0.55 |
| 21 |
420922091 |
MOLDED HOSE - Call your local BRP dealership Price: $18.99 |
| 22 |
420851673 |
Gear Clamp Price: $5.79 |
| 23 |
509000442 |
Oeticker Gear Clamp, 25.6-706R This part replaces 420851663. Price: $5.29 |
| 24 |
420460461 |
Molded Hose Price: $21.99 |
| 25 |
420951293 |
Gear Clamp Price: $9.49 |
| 26 |
420922132 |
Molded Hose Price: $31.99 |
| 27 |
509000442 |
Oeticker Gear Clamp, 25.6-706R This part replaces 420851663. Price: $5.29 |
| 28 |
420822541 |
Thermostat Housing Ass'y Price: $72.99 |
| 29 |
420631876 |
O-Ring Price: $11.49 |
| 30 |
420440162 |
Torx Flange Screw M6 X 16 Price: $3.29 |

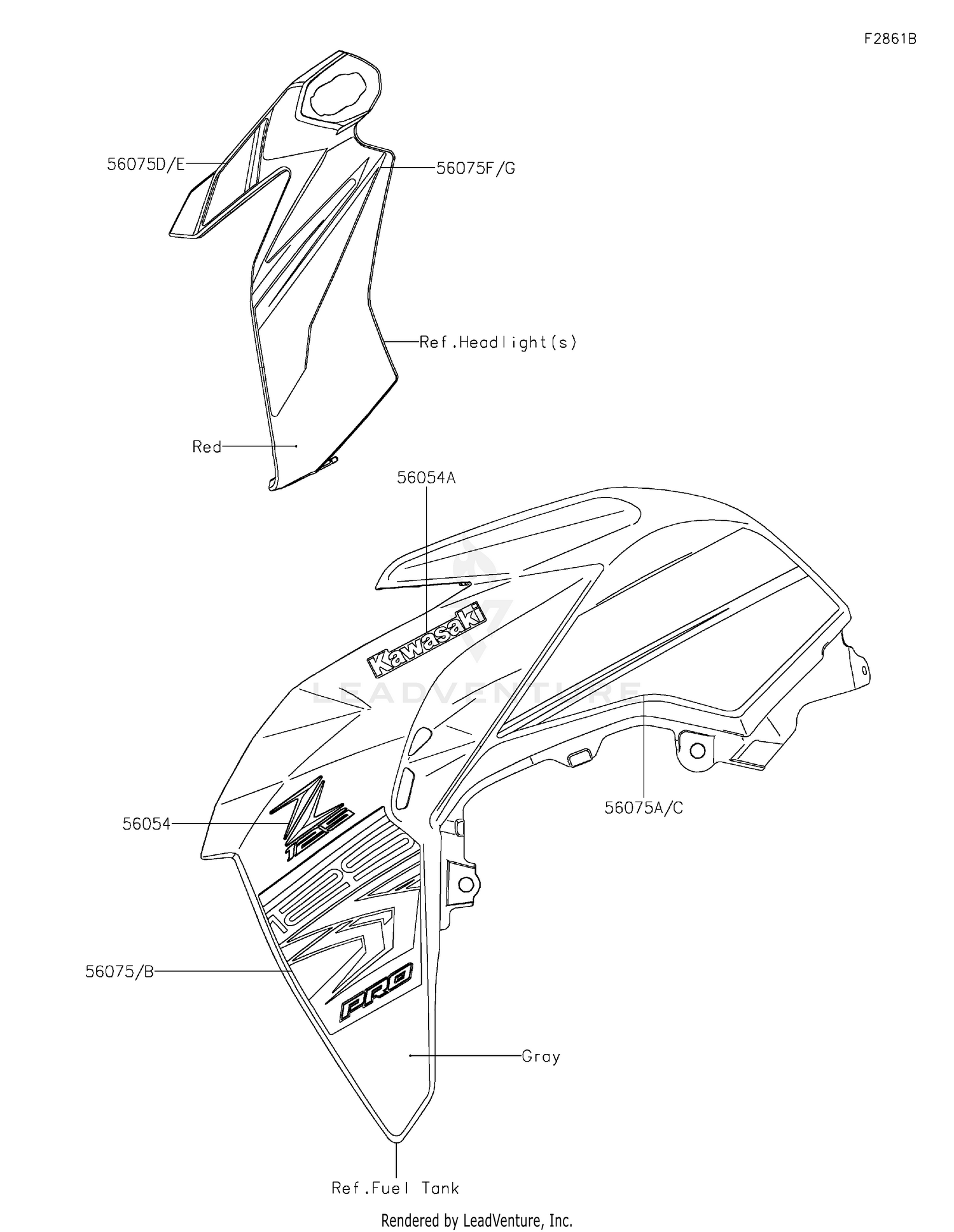

| 56054 |
56054-1992 |
MARK,SHROUD,Z125 Price: $44.05 |
| 56054A |
56054-2154 |
MARK,SHROUD,KAWASAKI Price: $18.21 |
| 56075 |
56075-4141 |
PATTERN,SHROUD,LH,FR Price: Call Us |
| 56075A |
56075-4142 |
PATTERN,SHROUD,LH,RR Price: Call Us |
| 56075B |
56075-4143 |
PATTERN,SHROUD,RH,FR Price: Call Us |
| 56075C |
56075-4144 |
PATTERN,SHROUD,RH,RR Price: Call Us |
| 56075D |
56075-4147 |
PATTERN,HEAD LAMP COVER,LH,UPP Price: Call Us |
| 56075E |
56075-4148 |
PATTERN,HEAD LAMP COVER,RH,UPP Price: Call Us |
| 56075F |
56075-4149 |
PATTERN,HEAD LAMP COVER,LH,LWR Price: Call Us |
