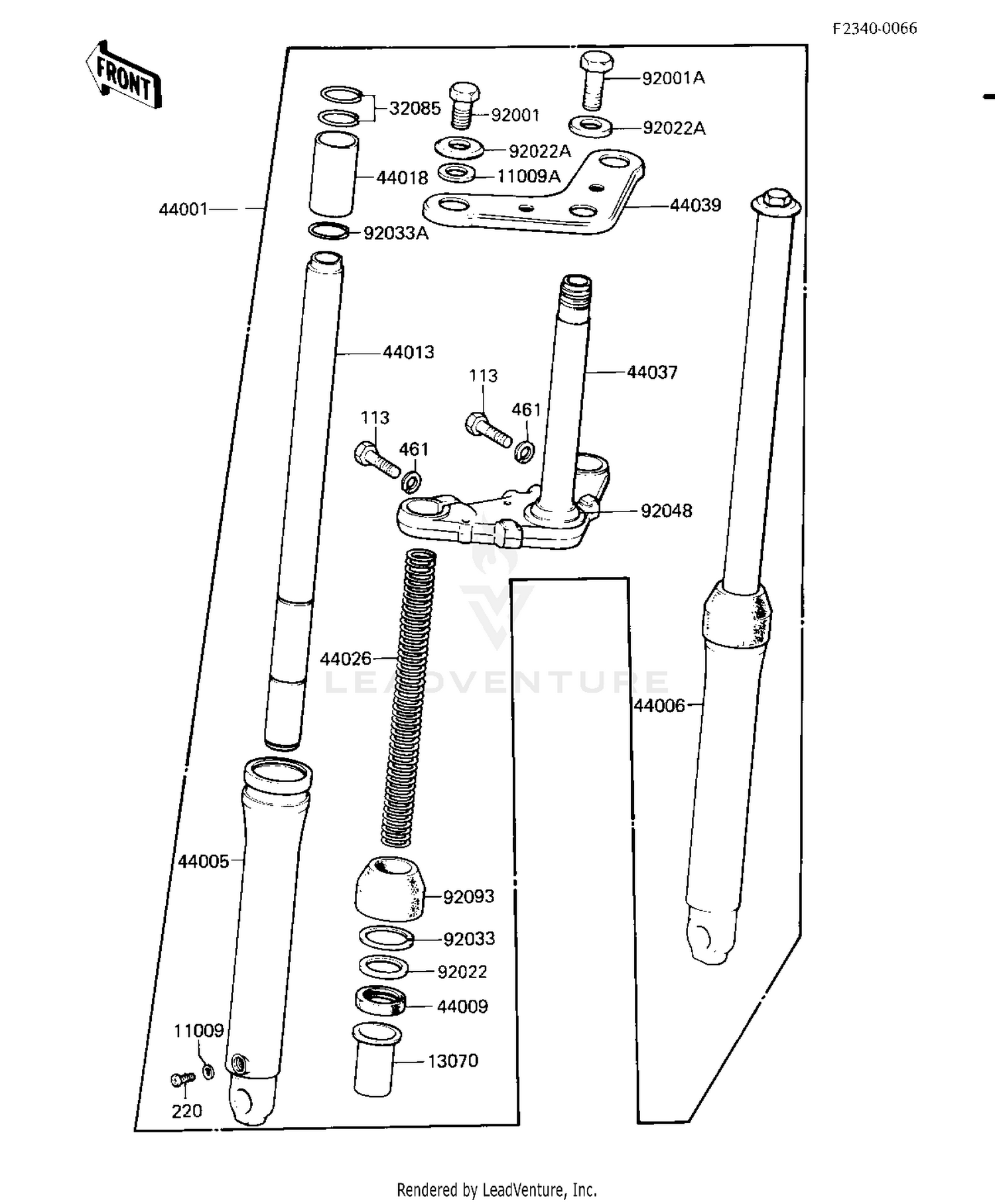

| Ref | Part Number | Description |
|---|
| 113 |
92001-1252 |
BOLT,HEX HEAD 10X35 Price: $7.65 |
| 220 |
220AA0406 |
SCREW-PAN CROS,4X6 This part replaces 220B0406. Price: $1.67 |
| 11009 |
44045-046 |
GASKET,FORK DRAIN PLG Price: $7.51 |
| 11009A |
44045-053 |
GASKET,FORK TOP BOLT Price: $6.80 |
| 13070 |
44015-016 |
GUIDE,FORK INNER TUBE Price: $19.49 |
| 32085 |
44020-003 |
RING,INNER TUBE GUIDE Price: $3.25 |
| 44001 |
44001-1419 |
FORK-FRONT Price: $956.71 |
| 44005 |
44005-052 |
TUBE,LH,FORK OUTER Price: $96.45 |
| 44006 |
44006-050 |
TUBE,RH,FORK OUTER Price: $103.92 |
| 44009 |
92049-1075 |
SEAL-OIL,OUTER TUBE Price: $17.58 |
| 44013 |
44013-1034 |
TUBE,FORK INNER Price: $99.91 |
| 44018 |
44018-007 |
PISTON,FORK Price: $14.85 |
| 44026 |
44026-1050 |
SPRING,FORK INNER Price: $15.49 |
| 44037 |
44037-1034 |
STEM,STEERING Price: $185.73 |
| 44039 |
44039-1025 |
HEAD,STEERING STEM Price: $69.74 |
| 92001 |
92001-1742 |
BOLT Price: $19.67 |
| 92001A |
112G1030 |
BOLT-UPSET,10X30 This part replaces 92001-1743. Price: $8.84 |
| 92022 |
44043-054 |
WASHER,FORK OUTER TUB Price: $5.45 |
| 92022A |
92022-1381 |
WASHER Price: $9.44 |
| 92033 |
44044-016 |
CIRCLIP,40MM Price: $9.28 |
| 92033A |
44044-017 |
CIRCLIP,FORK PISTON Price: $4.05 |
| 92048 |
92047-004 |
CONE LOWER BEARING Price: $16.97 |
| 92093 |
92093-1059 |
SEAL,OUTER TUBE This part replaces 44010-024. Price: $15.77 |
